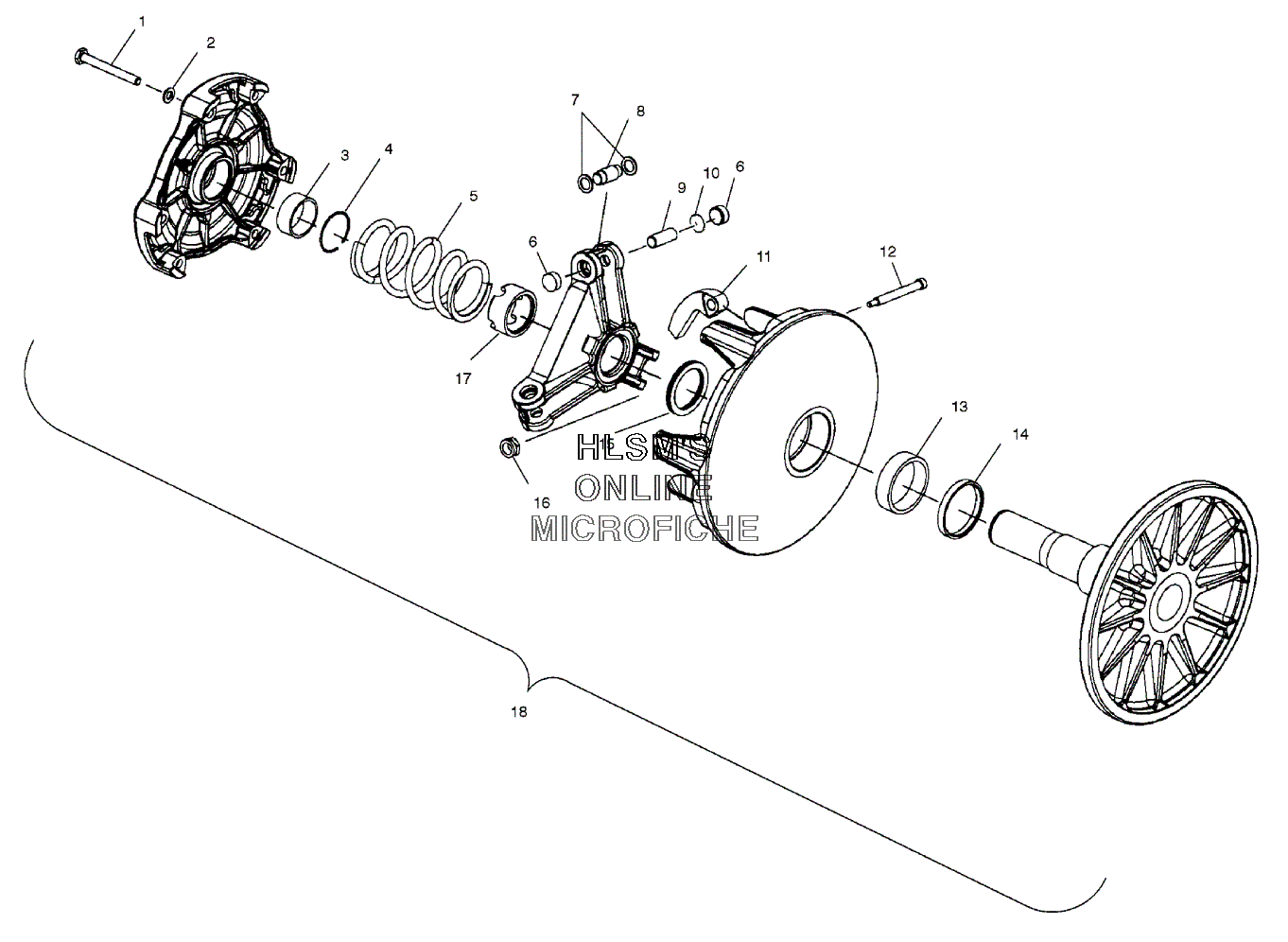

CLUTCH - DRIVE для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 LOCK WASHER
    LOCK WASHER
  • 3
    3576516 COVER, BEARING, GARMAX
    COVER, BEARING, GARMAX
  • 4
    7710417 RING, RETAINING, BOLT
    RING, RETAINING, BOLT
  • 5
    7041988 SPRING, CLUTCH DRIVE (ALMOND/RED)
    SPRING, CLUTCH DRIVE (ALMOND/RED)
  • 6
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ROLLER AND BUSHING ASSY.
    ROLLER AND BUSHING ASSY.
  • 9
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 10
    2200387 KIT, SHIM, DRIVE CLUTCH
    KIT, SHIM, DRIVE CLUTCH
  • 11
    1321759 WT/BUSH, 53H
    WT/BUSH, 53H
  • 12
    7515105 PIN, WT., HARDENED
    PIN, WT., HARDENED
  • 13
    3576502 SLEEVE, BEARING
    SLEEVE, BEARING
  • 14
    5010188 BUSHING, RETAINER
    BUSHING, RETAINER
  • 15
    5210754 SPACER (.050MM)
    SPACER (.050MM)
  • 15
    5210753 SPACER (.032MM)
    SPACER (.032MM)
  • 15
    5242981 SPACER (.025MM)
    SPACER (.025MM)
  • 15
    5210752 SPACER (.020MM)
    SPACER (.020MM)
  • 16
    7541906 NUT FLEX LOC
    NUT FLEX LOC
  • 17
    5020425 NUT, JAM
    NUT, JAM
  • 18
    1321792 CLUTCH, BASIC #101 (DRIVE) (INCL. ALL LESS 5, 11)
    CLUTCH, BASIC #101 (DRIVE) (INCL. ALL LESS 5, 11)
