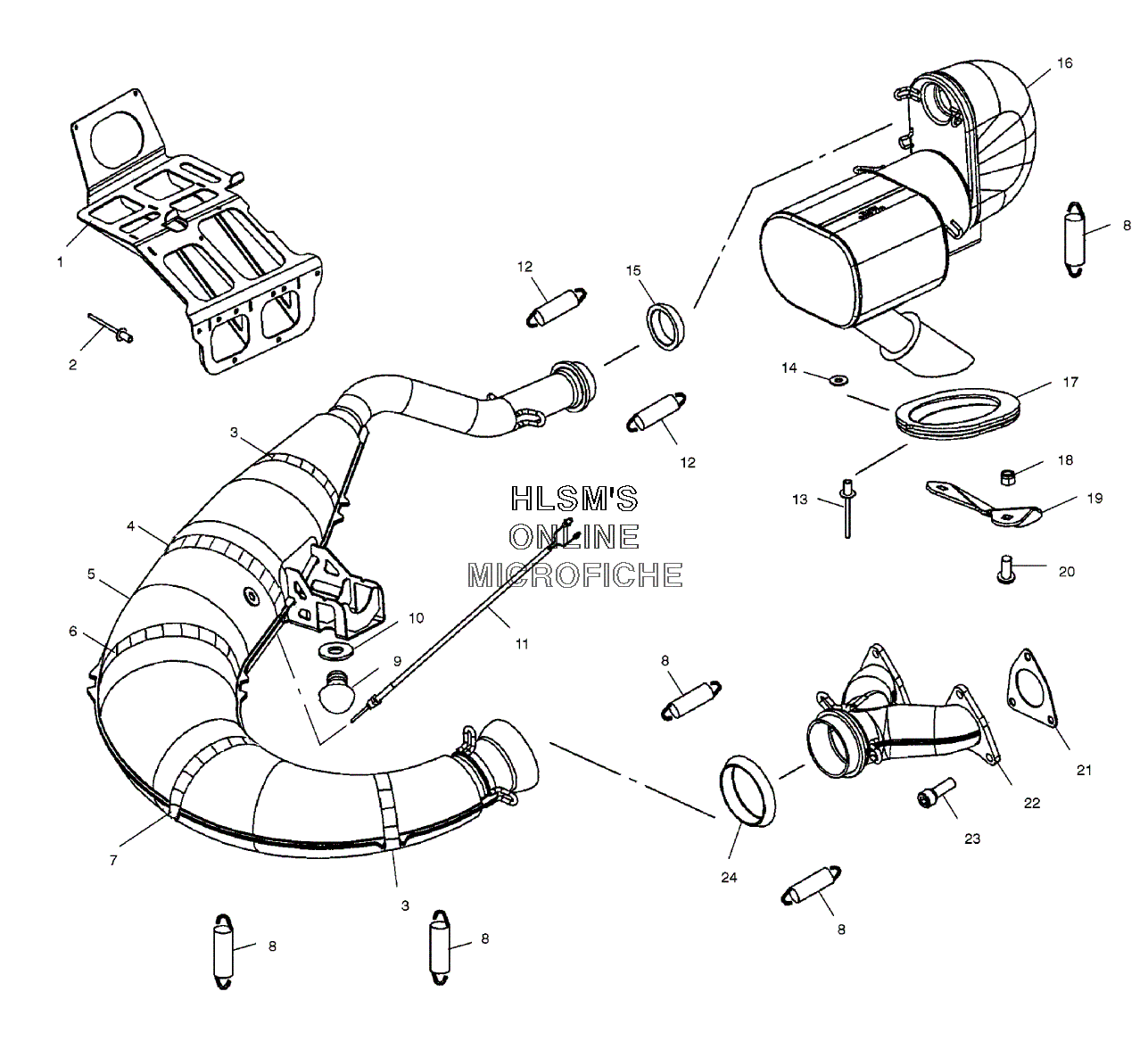

EXHAUST SYSTEM для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1261157-029 WELD, BRACKET CHASSIS/RESNTR, (BLACK)
    WELD, BRACKET CHASSIS/RESNTR, (BLACK)
  • 2
    7661638 RIVET, INTERLOCK, B
    RIVET, INTERLOCK, B
  • 3
    7080739 CLAMP, WORM,
    CLAMP, WORM,
  • 4
    7080811 CLAMP, WORM DRIVE, (.44WX6.50 DIA)
    CLAMP, WORM DRIVE, (.44WX6.50 DIA)
  • 5
    1261142 TUNED PIPE, ASSY.
    TUNED PIPE, ASSY.
  • 5
    5245477 COVER, TUNED PIPE, TOP
    COVER, TUNED PIPE, TOP
  • 5
    5245478 COVER, TUNED PIPE, BOTTOM
    COVER, TUNED PIPE, BOTTOM
  • 5
    5830211 MATTE, SOUND TOP
    MATTE, SOUND TOP
  • 5
    5830210 MATTE, SOUND BOTTOM
    MATTE, SOUND BOTTOM
  • 6
    7080751 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 7
    7080741 CLAMP, WORM
    CLAMP, WORM
  • 8
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 9
    5411576 DAMPENER, VIBRATION, W/RIBS
    DAMPENER, VIBRATION, W/RIBS
  • 10
    7556004 WASHER
    WASHER
  • 11
    4010528 SENSOR, EXHAUST TEMP, P100J, BW
    SENSOR, EXHAUST TEMP, P100J, BW
  • 12
    7042029 SPRING, EXHAUST
    SPRING, EXHAUST
  • 13
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 14
    7555904 BURR, RIVET
    BURR, RIVET
  • 15
    3610047 SEAL, EXH. SOCKET
    SEAL, EXH. SOCKET
  • 16
    1261130-029 WELD, RESONATOR, (BLACK)
    WELD, RESONATOR, (BLACK)
  • 17
    5411684 BOOT, EXHAUST, OUTLET
    BOOT, EXHAUST, OUTLET
  • 18
    7542321 NUT LOCK
    NUT LOCK
  • 19
    5243929 DEFLECTOR, SNOW, EXHAUST
    DEFLECTOR, SNOW, EXHAUST
  • 20
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 21
    5812245 GASKET, EXHAUST, (44, 01)
    GASKET, EXHAUST, (44, 01)
  • 22
    1261129-029 WELD, MANIFOLD, (BLACK)
    WELD, MANIFOLD, (BLACK)
  • 23
    7517322 SCREW
    SCREW
  • 24
    3610046 SEAL, EXH.SOCKET
    SEAL, EXH.SOCKET
