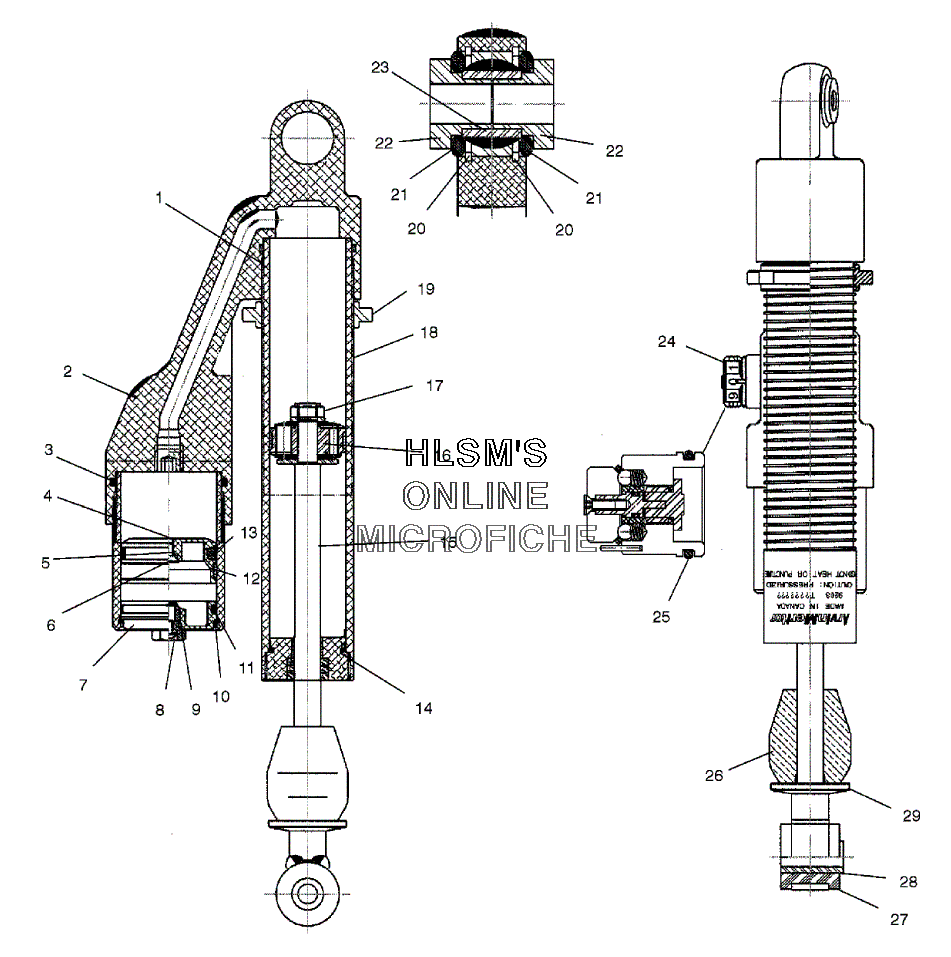

SUSPENSION - RYDE FX - IFS SHOCK для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска`
-
№АртикулНазвание
-
1A7042111 SHOCK, (IFS, IFP, R RES, ALUM, LEFT)SHOCK, (IFS, IFP, R RES, ALUM, LEFT)
-
1A7042112 SHOCK, (IFS, IFP, R RES, ALUM, RIGHT)SHOCK, (IFS, IFP, R RES, ALUM, RIGHT)
-
11700049 BODY, O-RINGBODY, O-RING
-
21700152 BODY, RESERVOIR, (LEFT)BODY, RESERVOIR, (LEFT)
-
21700153 BODY, RESERVOIR, (RIGHT)BODY, RESERVOIR, (RIGHT)
-
31700050 RESERVOIR, O-RINGRESERVOIR, O-RING
-
41700017 IFPIFP
-
51700016 BLEED SCREW O-RINGBLEED SCREW O-RING
-
61700054 IFP, BLEED SCREWIFP, BLEED SCREW
-
71700058 ENDCAPENDCAP
-
81700055 VALVE SCREWVALVE SCREW
-
91700053 PRESS, VALVE ASSY.PRESS, VALVE ASSY.
-
91700045 PRESS, VALVE O-RINGPRESS, VALVE O-RING
-
101700059 CIRCLIPCIRCLIP
-
111700044 ENDCAP, O-RINGENDCAP, O-RING
-
121700018 IFP WEAR BAND(RES)IFP WEAR BAND(RES)
-
131700043 IFP, O-RINGIFP, O-RING
-
141700148 CYL HEAD ASSY. (5/8'' ROD)CYL HEAD ASSY. (5/8'' ROD)
-
141700149 CYL, HEAD O-RINGCYL, HEAD O-RING
-
141700019 ROD SCRAPERROD SCRAPER
-
141700046 CYL, HEAD O-RINGCYL, HEAD O-RING
-
141700020 ROD SEALROD SEAL
-
151700147 SHAFT, (5/8'' DIAX8.32''L)SHAFT, (5/8'' DIAX8.32''L)
-
161700006 BANDED PISTON BLANKBANDED PISTON BLANK
-
161700031 PISTON WEAR BANDPISTON WEAR BAND
-
161700077 TOP, OUT WASHERTOP, OUT WASHER
-
161700078 BACK, UP WASHERBACK, UP WASHER
-
171700057 NUTNUT
-
181700119 CYLINDERCYLINDER
-
191700030 SPRING, RET NUTSPRING, RET NUT
-
201700067 SNAP RINGSNAP RING
-
211700052 BUSHING, O-RINGBUSHING, O-RING
-
221700066 SPACERSPACER
-
231700068 SPHERICAL BEARINGSPHERICAL BEARING
-
241700013 CLICKER ASSY.CLICKER ASSY.
-
251700188 O-RINGO-RING
-
261700042 COMP, BUMPERCOMP, BUMPER
-
271700072 BUSHINGBUSHING
-
281700037 SLEEVE, (.38''IDX.63''ODX1.18 STEEL)SLEEVE, (.38''IDX.63''ODX1.18 STEEL)
-
291700003 UPPER MOUNTUPPER MOUNT
