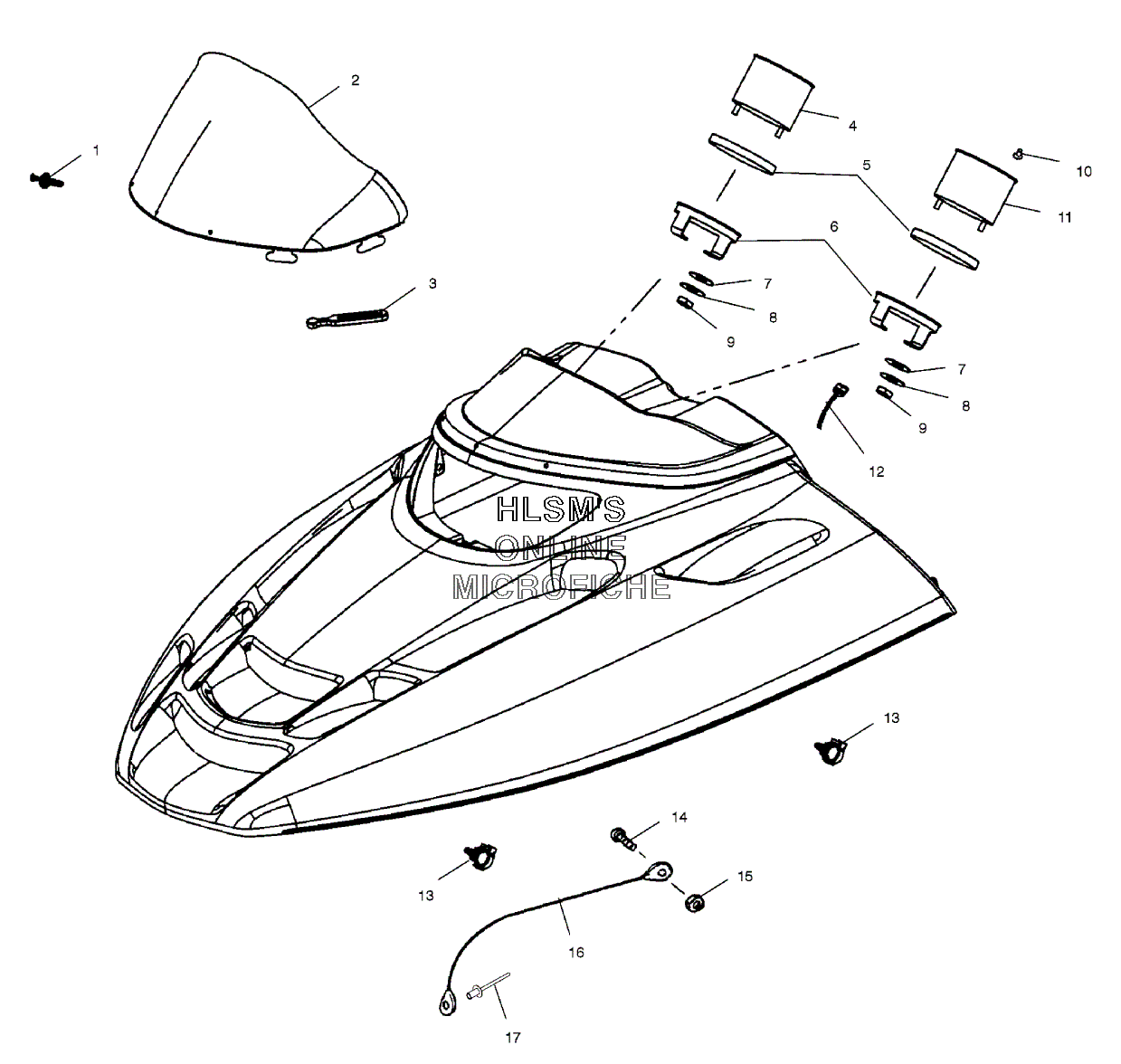

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска
-
№АртикулНазвание
-
17621509 RIVET,PLASTI-LOC.RIVET,PLASTI-LOC.
-
25433741 WINDSHIELD-13'',CLEAR,EDGEWINDSHIELD-13'',CLEAR,EDGE
-
35410970 RETAINER,WINDSHIELD,RETAINER,WINDSHIELD,
-
43280329 TACH,6 P,WHITE W/FUEL LTTACH,6 P,WHITE W/FUEL LT
-
44030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
53280209 CUSHION,TACH/SPEEDO,RUBBERCUSHION,TACH/SPEEDO,RUBBER
-
63280210 BRKT,TACH/SPEEDO,5''BRKT,TACH/SPEEDO,5''
-
73280157 WASHER,FLAT,(10)WASHER,FLAT,(10)
-
83280156 WASHER,SPLIT LOCKWASHER,SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB,TRIP ODOMETER,LH THD.KNOB,TRIP ODOMETER,LH THD.
-
113280348 SPEEDO,5'',120MPH,WH,W/OANGSPEEDO,5'',120MPH,WH,W/OANG
-
114030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
123280139 CABLE,SPEEDO,W/FOILCABLE,SPEEDO,W/FOIL
-
134020139 CLIP, PLASTICCLIP, PLASTIC
-
147512018 SCREWSCREW
-
157541925 NUTNUT
-
167080521 CABLE,HOOD RETAINERCABLE,HOOD RETAINER
-
177661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
