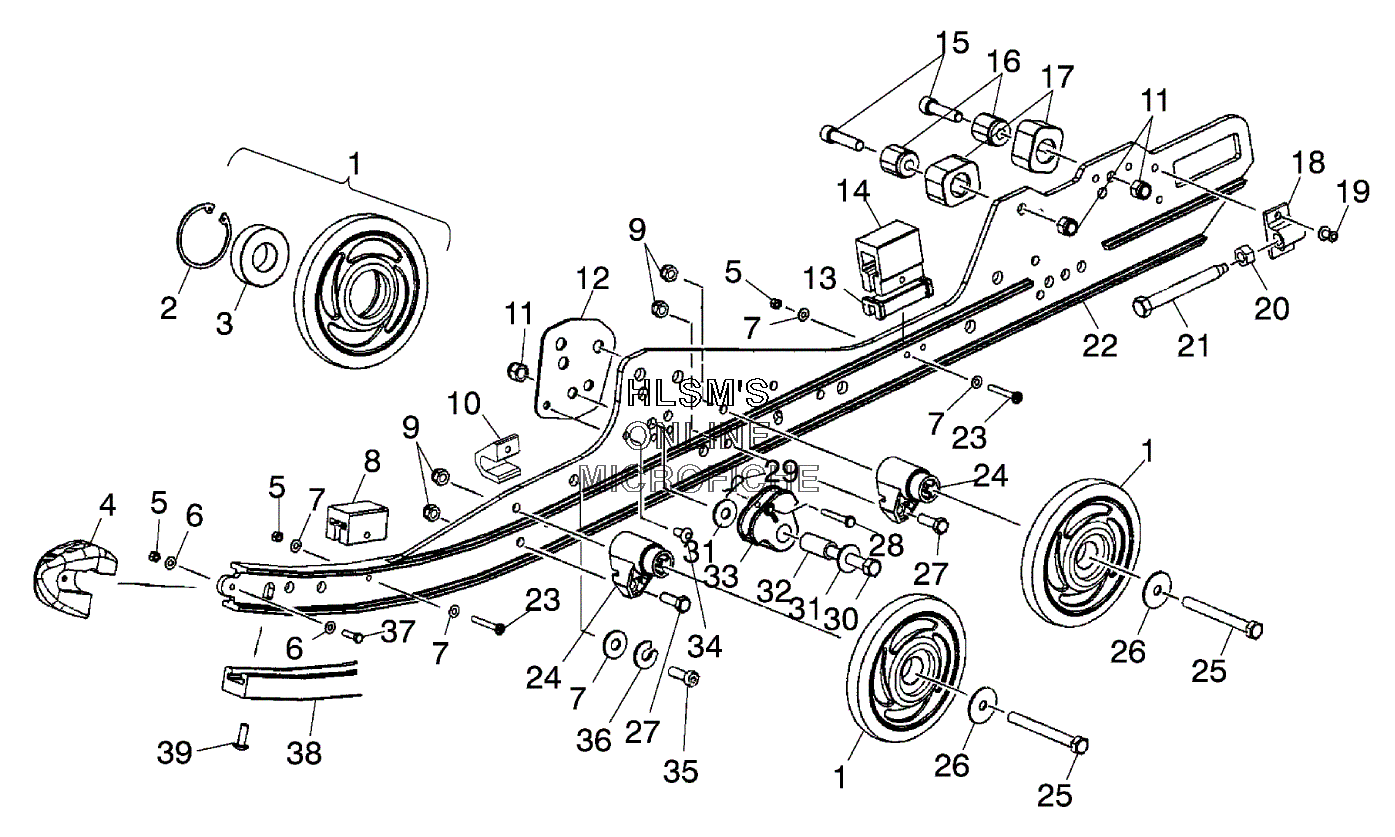

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1590318-293 WHEEL SCROLLED, ASSY., (5.62, I RED) (5.62 DIA.)(INCL. 2, 3)
    WHEEL SCROLLED, ASSY., (5.62, I RED) (5.62 DIA.)(INCL. 2, 3)
  • 2
    7718407 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 3
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 4
    5434355 CAP, RAIL TIP UHMW
    CAP, RAIL TIP UHMW
  • 5
    7541925 NUT
    NUT
  • 6
    7555792 WASHER
    WASHER
  • 7
    7555783 WASHER
    WASHER
  • 8
    5521499 BUMPER, JOUNCE FRONT
    BUMPER, JOUNCE FRONT
  • 9
    7542324 NUT
    NUT
  • 10
    5132997 CLAMP, HOSE, ARVIN
    CLAMP, HOSE, ARVIN
  • 11
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 12
    5245430 BRACKET, RAIL REINF
    BRACKET, RAIL REINF
  • 13
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 14
    5521498 BUMPER, JOUNCE REAR
    BUMPER, JOUNCE REAR
  • 14
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 15
    7515537 BOLT
    BOLT
  • 16
    5131113 MOUNT, F.BUMPER PIVOT ARM
    MOUNT, F.BUMPER PIVOT ARM
  • 17
    5410925 BUMPER, F.PIVOT ARM
    BUMPER, F.PIVOT ARM
  • 18
    5132444 BLOCK, IDLER BOLT ADJ, (7/16)
    BLOCK, IDLER BOLT ADJ, (7/16)
  • 19
    7621501 RIVET,
    RIVET,
  • 20
    7547156 NUT, (7/16, 14, JAM)
    NUT, (7/16, 14, JAM)
  • 21
    7517773 SCR, (7/16, 14X3 3/4XHD)
    SCR, (7/16, 14X3 3/4XHD)
  • 22
    1541622 RAIL, 121 RACE, ASSY., (LEFT) (INCL. 4, 8, 14, 17, 18)
    RAIL, 121 RACE, ASSY., (LEFT) (INCL. 4, 8, 14, 17, 18)
  • 22
    1541623 RAIL, 121, RACE, ASSY., (RIGHT) (INCL. 4, 8, 14, 17, 18)
    RAIL, 121, RACE, ASSY., (RIGHT) (INCL. 4, 8, 14, 17, 18)
  • 23
    7510504 SCREW
    SCREW
  • 24
    5631065 BLOCK, WHEEL MOUNT, LWT
    BLOCK, WHEEL MOUNT, LWT
  • 25
    7515346 BOLT
    BOLT
  • 26
    7556179 WASHER, SPRING, (CON 5/16X.090, Y)
    WASHER, SPRING, (CON 5/16X.090, Y)
  • 27
    7515317 BOLT
    BOLT
  • 28
    7661123 PIN, CLEVIS (3/16X1 1/4)
    PIN, CLEVIS (3/16X1 1/4)
  • 29
    7661644 PIN, HITCH
    PIN, HITCH
  • 30
    7515438 BOLT
    BOLT
  • 31
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 32
    5333948 SPACER, (.407X.625X1.33)
    SPACER, (.407X.625X1.33)
  • 33
    5433922 GUIDE, SPRING SQUARE
    GUIDE, SPRING SQUARE
  • 34
    7661845 RIVET
    RIVET
  • 35
    7512014 SCREW
    SCREW
  • 36
    7552615 WASHER, LOCK
    WASHER, LOCK
  • 37
    7511975 SCREW
    SCREW
  • 38
    5521577-309 HI, FAX, 121, NATURAL
    HI, FAX, 121, NATURAL
  • 39
    7515199 SCREW
    SCREW
