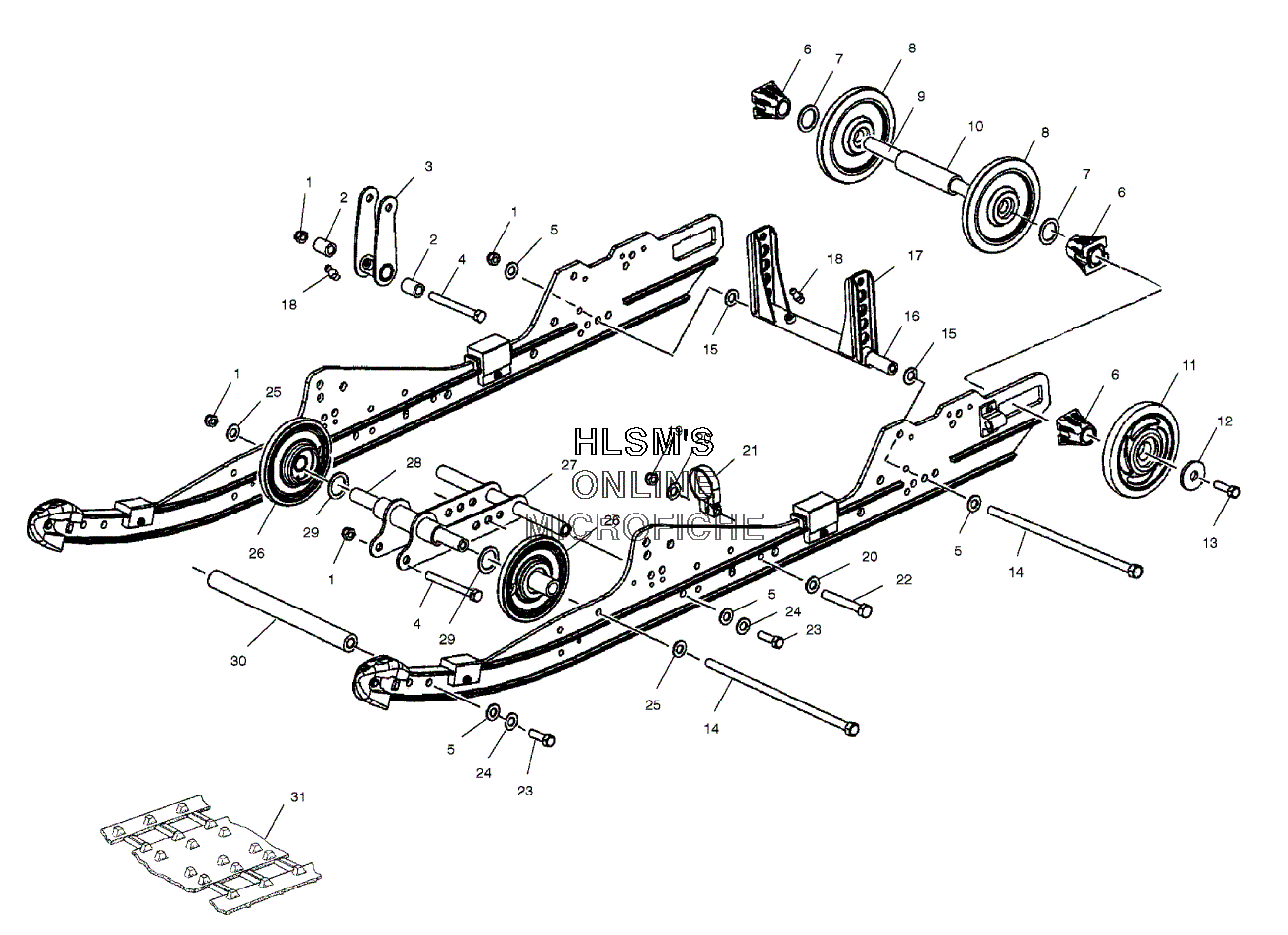

RAIL ASSEMBLY W/ IDLER WHEELS #2 для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25131940 BUSHINGBUSHING
-
31541638-067 WELD, SHOCK PIVOT ARM, 3.50, (BLACK)WELD, SHOCK PIVOT ARM, 3.50, (BLACK)
-
47515417 BOLTBOLT
-
57555806 WASHERWASHER
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
95132066 SHAFT, IDLER, (.784X13.22, 7075)SHAFT, IDLER, (.784X13.22, 7075)
-
105333283 SPACER, IDLER,( CTR.)SPACER, IDLER,( CTR.)
-
111590303-293 WHEEL, IDLER, HP, (RED)WHEEL, IDLER, HP, (RED)
-
117710444 RING, RETAININGRING, RETAINING
-
113514012 BEARINGBEARING
-
127556130 WASHER, (.406X1.25X.125)WASHER, (.406X1.25X.125)
-
137517731 BOLT, (3/8, 16X1.25)BOLT, (3/8, 16X1.25)
-
147517353 SCREWSCREW
-
157555893 WASHERWASHER
-
165334026 SHAFT, (.740X.390X8.490), ANODIZESHAFT, (.740X.390X8.490), ANODIZE
-
171541625-067 WELD, REAR PIVOT ARM, 4.25, (BLACK)WELD, REAR PIVOT ARM, 4.25, (BLACK)
-
187080424 FITTING, LUBE.FITTING, LUBE.
-
197542324 NUTNUT
-
207558402 WASHER STEELWASHER STEEL
-
215132968 CLAMP, RESERVOIRCLAMP, RESERVOIR
-
227515339 BOLTBOLT
-
237517247 SCREWSCREW
-
247552603 WASHERWASHER
-
257555797 WASHERWASHER
-
261541642 WHEEL ASSY., (5.62 W/HOLE)WHEEL ASSY., (5.62 W/HOLE)
-
271541463-067 SHOCK MNT, (BLACK)SHOCK MNT, (BLACK)
-
285132490 SHAFT, (.390X.750X.8665)SHAFT, (.390X.750X.8665)
-
297556301 MACHINERY BUSHINGMACHINERY BUSHING
-
305020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
315411963 TRACK, (121X1.25 SHOCKWAVE)TRACK, (121X1.25 SHOCKWAVE)
-
315241473 CLIP, SLIDECLIP, SLIDE
-
315241474 CLIP, GUIDECLIP, GUIDE
