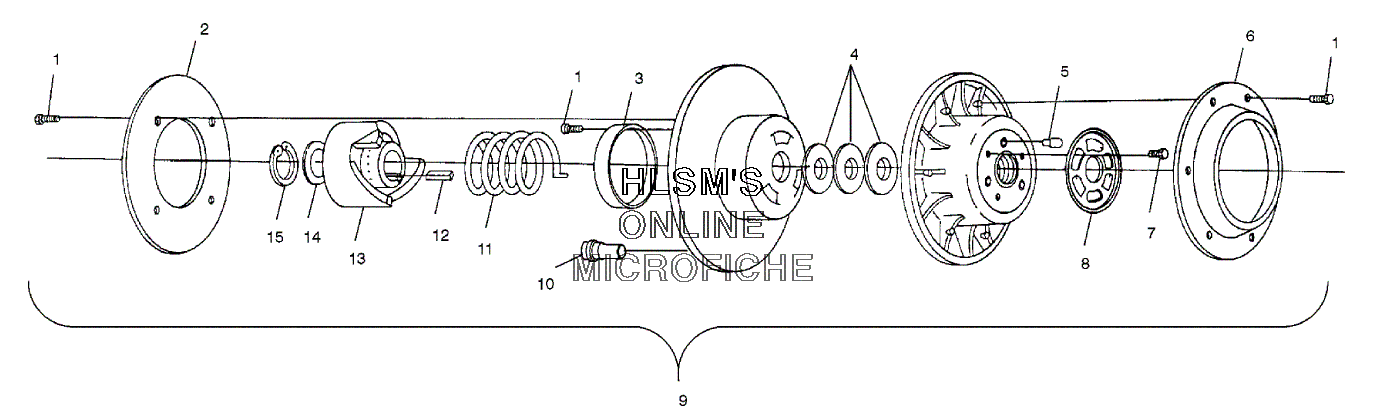

CLUTCH - DRIVEN для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7512048 SCREW
    SCREW
  • 2
    5243158 PLATE, DRIVEN, VENTED
    PLATE, DRIVEN, VENTED
  • 3
    3569803 BUSHING, D.U.
    BUSHING, D.U.
  • 4
    7556804 WASHER (.03)
    WASHER (.03)
  • 4
    7555898 WASHER (.02)
    WASHER (.02)
  • 4
    7556076 WASHER (.025)
    WASHER (.025)
  • 4
    7555865 WASHER, DRIVE CLUTCH (.075)
    WASHER, DRIVE CLUTCH (.075)
  • 5
    5020653 PIN, CLUTCH
    PIN, CLUTCH
  • 6
    5243157 CAP, DRIVEN, VENTED
    CAP, DRIVEN, VENTED
  • 7
    7515133 SCREW
    SCREW
  • 8
    5222878 CAM, DRIVEN, ADJUSTABLE
    CAM, DRIVEN, ADJUSTABLE
  • 9
    1321927 DRIVEN CLUTCH ASSY. (BSC, 204 W/B) (INCL. 1, 3, 4, 5, 7, 8, 10, 12, 13, 14, 15)
    DRIVEN CLUTCH ASSY. (BSC, 204 W/B) (INCL. 1, 3, 4, 5, 7, 8, 10, 12, 13, 14, 15)
  • 10
    5430466 BUTTON, RAMP
    BUTTON, RAMP
  • 11
    7042022 SPRING, DRIVEN CLUTCH (BLUE/ORAN)
    SPRING, DRIVEN CLUTCH (BLUE/ORAN)
  • 12
    7721103 KEY SQUARE
    KEY SQUARE
  • 13
    5133023 RAMP, DRIVEN, R49
    RAMP, DRIVEN, R49
  • 14
    7556804 WASHER
    WASHER
  • 15
    7714804 RING, RETAINING
    RING, RETAINING
