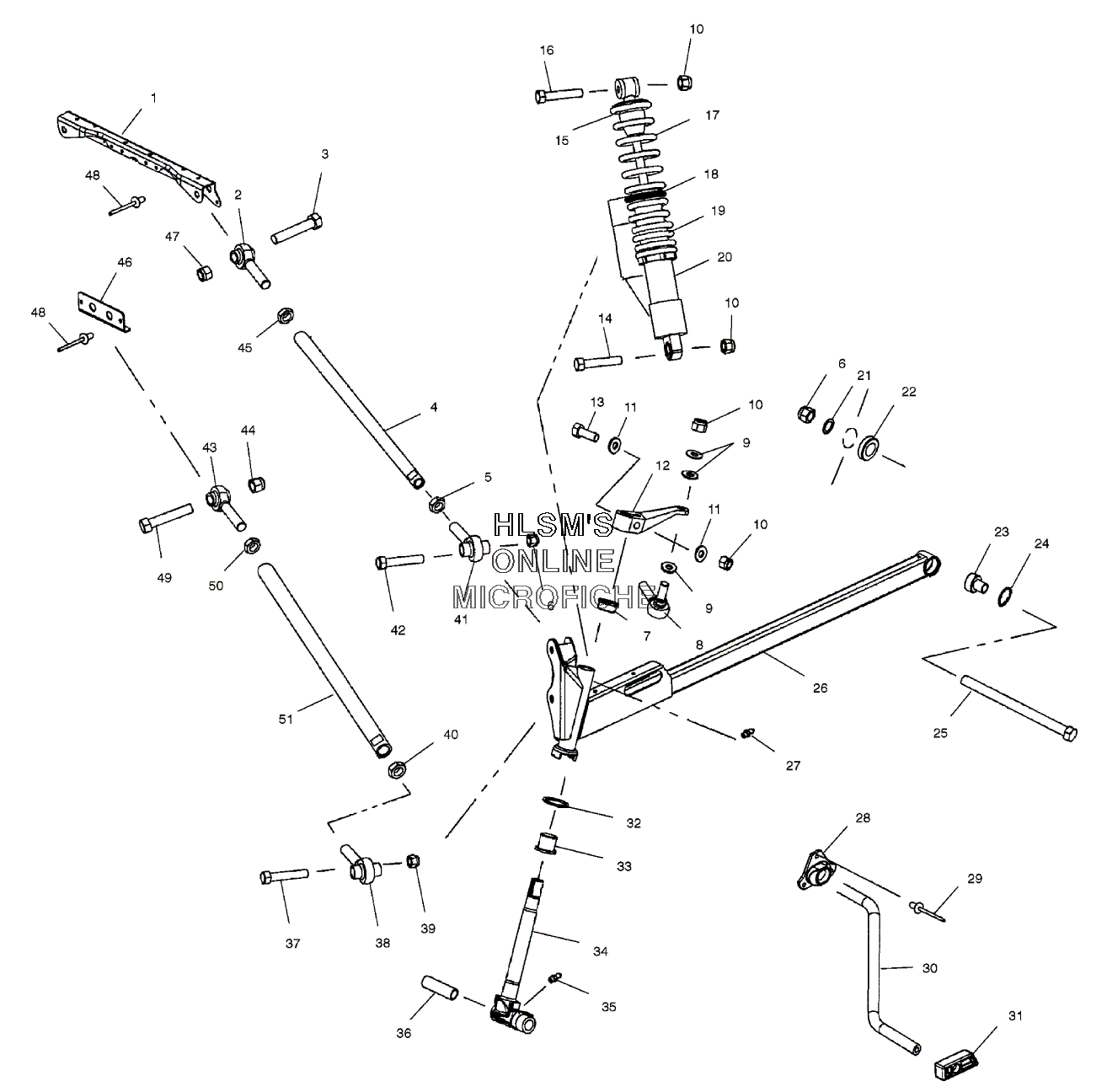

SUSPENSION - FRONT для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5245237-067 BRACKET, RAD ROD, SUPPORT, REINF, (BLACK)
    BRACKET, RAD ROD, SUPPORT, REINF, (BLACK)
  • 2
    7061077 ROD END, RAD, (LEFT), (7/16, 1.05W)
    ROD END, RAD, (LEFT), (7/16, 1.05W)
  • 3
    7512530 SCREW
    SCREW
  • 4
    5333984-216 TUBE, RADIUS ROD, UPPER, YELLOW
    TUBE, RADIUS ROD, UPPER, YELLOW
  • 5
    7542520 NUT JAM
    NUT JAM
  • 6
    7547066 NUT, (7/16, 20, NYLOK, Y)
    NUT, (7/16, 20, NYLOK, Y)
  • 7
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 8
    7061057 ROD, END, (3/8, PL, 75Ш, 1.00), (RIGHT)
    ROD, END, (3/8, PL, 75Ш, 1.00), (RIGHT)
  • 9
    7555797 WASHER
    WASHER
  • 10
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 11
    7555832 WASHER
    WASHER
  • 12
    5132912 ARM, STEERING, MACHINED, EDGE R
    ARM, STEERING, MACHINED, EDGE R
  • 13
    7515433 BOLT
    BOLT
  • 14
    7517583 SCREW, (3/8, 24X2 HX/CP GR5, Y, SP)
    SCREW, (3/8, 24X2 HX/CP GR5, Y, SP)
  • 15
    5020618 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 16
    7515415 BOLT
    BOLT
  • 17
    7041701-067 SPRNG, CMP, .(295X9.0, 120#), (BLACK)
    SPRNG, CMP, .(295X9.0, 120#), (BLACK)
  • 18
    5133143 SPACER, SPRING, ARVIN
    SPACER, SPRING, ARVIN
  • 19
    7042048-067 COMP, SPRING, 9220 #X2.5INX.243), BL
    COMP, SPRING, 9220 #X2.5INX.243), BL
  • 20
    7042111 SHOCK, (IFS, IFP, R RES, ALUM, LEFT)
    SHOCK, (IFS, IFP, R RES, ALUM, LEFT)
  • 20
    7042112 SHOCK, (IFS, IFP, R RES, ALUM, RIGHT)
    SHOCK, (IFS, IFP, R RES, ALUM, RIGHT)
  • 21
    7555820 WASHER
    WASHER
  • 22
    5132364 CUP, TRAILING ARM MOUNT
    CUP, TRAILING ARM MOUNT
  • 23
    7061094 BEARING, SPHERICAL, (7/16, NYLON)
    BEARING, SPHERICAL, (7/16, NYLON)
  • 24
    7710437 RING, RETAINING
    RING, RETAINING
  • 25
    7512099 BOLT
    BOLT
  • 26
    1821039-216 TRAILING ARM, ASSY., (LEFT), YELLOW (INCL. 23, 24)
    TRAILING ARM, ASSY., (LEFT), YELLOW (INCL. 23, 24)
  • 26
    1821040-216 TRAILING ARM, ASSY., (RIGHT), YELLOW, SVC (INCL. 23, 24)
    TRAILING ARM, ASSY., (RIGHT), YELLOW, SVC (INCL. 23, 24)
  • 27
    7080433 ZERK, FITTING, THREADED
    ZERK, FITTING, THREADED
  • 28
    5433234 BUSHING, TORSION BAR
    BUSHING, TORSION BAR
  • 29
    7621477 RIVET,
    RIVET,
  • 30
    5245340-067 BAR, TORSION, (1/2, 425.5''), (BLACK)
    BAR, TORSION, (1/2, 425.5''), (BLACK)
  • 31
    5434129 SLIDE, TORSION BAR, (1/2)
    SLIDE, TORSION BAR, (1/2)
  • 32
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 33
    3574208 BUSHING, SPINDLE HSG
    BUSHING, SPINDLE HSG
  • 34
    6230206-067 SHAFT, SPINDLE, HARD, STOPS, (BLACK)
    SHAFT, SPINDLE, HARD, STOPS, (BLACK)
  • 35
    7080306 FITTING, LUBE.W/BALL CK.
    FITTING, LUBE.W/BALL CK.
  • 36
    5132935 BUSHING, SKI/SPINDLE, (3X3/8X.625)
    BUSHING, SKI/SPINDLE, (3X3/8X.625)
  • 37
    7517906 BOLT, (1/2, 20X2, HXCAP, GR5, Y)
    BOLT, (1/2, 20X2, HXCAP, GR5, Y)
  • 38
    7061080 ROD END, (RIGHT), 1/2, 1.05 W/RADIUS
    ROD END, (RIGHT), 1/2, 1.05 W/RADIUS
  • 39
    7547065 NUT, (1/2, 20, NYLOK, Y)
    NUT, (1/2, 20, NYLOK, Y)
  • 40
    7542711 NUT, JAM
    NUT, JAM
  • 41
    7061078 ROD END, RAD, (RIGHT), (7/16, 1.05W)
    ROD END, RAD, (RIGHT), (7/16, 1.05W)
  • 42
    7517907 BOLT, (7/16, 20X2, HXCAP, GR5, Y)
    BOLT, (7/16, 20X2, HXCAP, GR5, Y)
  • 43
    7061079 ROD END, RAD, (LEFT), 1/2, 1.05W
    ROD END, RAD, (LEFT), 1/2, 1.05W
  • 44
    7542703 NUT FLEX
    NUT FLEX
  • 45
    7547117 NUT
    NUT
  • 46
    5245250 BRACKET, RAD ROD, LOWER STRAP
    BRACKET, RAD ROD, LOWER STRAP
  • 47
    7542503 NUT, LOCK
    NUT, LOCK
  • 48
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 49
    7512656 BOLT
    BOLT
  • 50
    7547028 NUT, (LEFT), JAM
    NUT, (LEFT), JAM
  • 51
    5333985-216 TUBE, RADIUS ROD, LOWER, YELLOW
    TUBE, RADIUS ROD, LOWER, YELLOW
