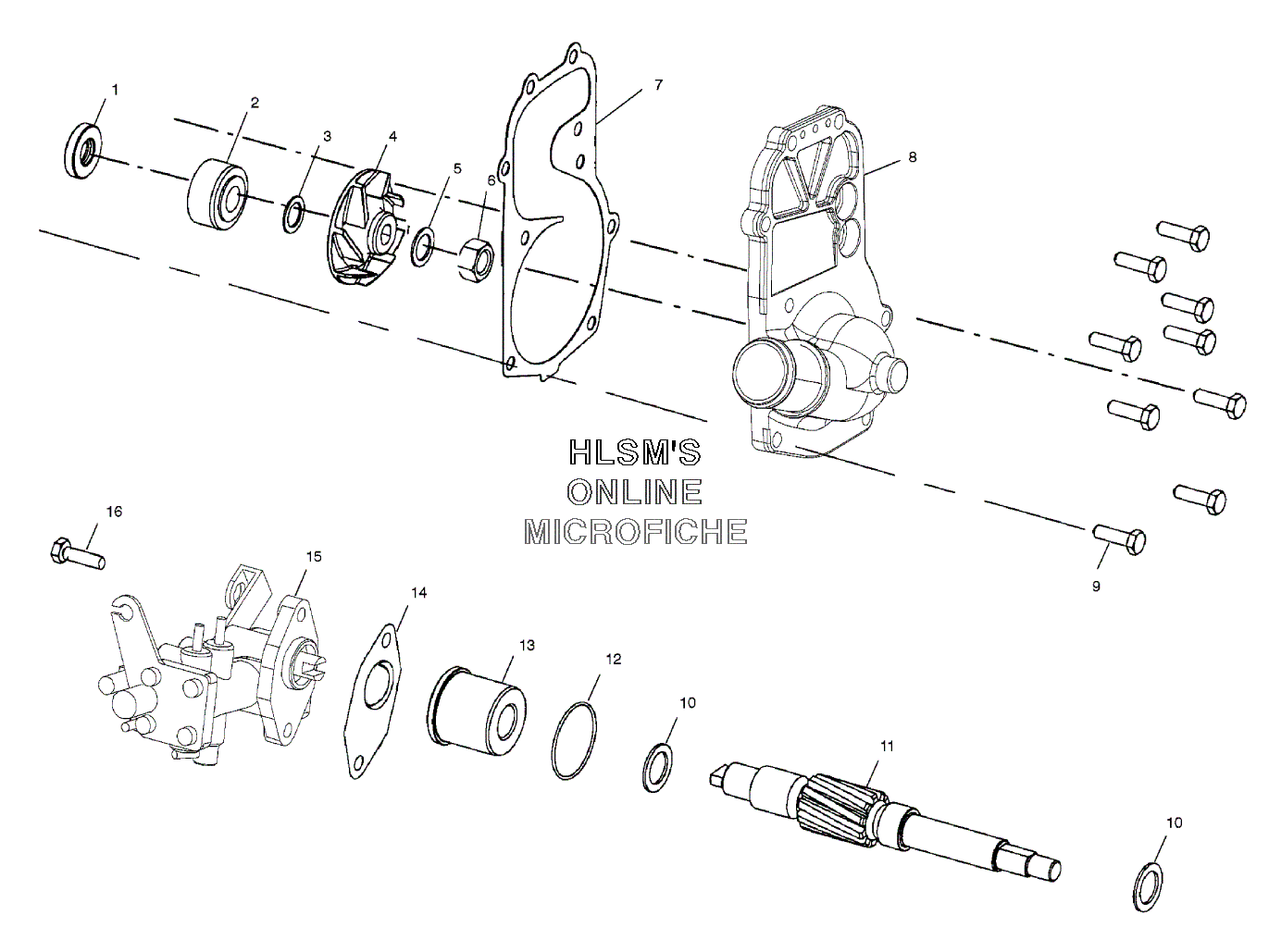

WATER PUMP/OIL PUMP для Polaris 440 PRO X (S01NX4CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5411197 SEAL, TYPE S, ARS
    SEAL, TYPE S, ARS
  • 2
    3610067 SEAL, WATERPUMP
    SEAL, WATERPUMP
  • 3
    7556006 WASHER, FLAT, SS.
    WASHER, FLAT, SS.
  • 4
    5432330 IMPELLER, WATERPUMP
    IMPELLER, WATERPUMP
  • 5
    7555874 WASHER, FLAT, S.S.
    WASHER, FLAT, S.S.
  • 6
    7546804 NUT, HEX,
    NUT, HEX,
  • 7
    5811601 GASKET, WATERPUMP CVR.
    GASKET, WATERPUMP CVR.
  • 8
    5630920 COVER, WATERPUMP, SNOW HI FLOW
    COVER, WATERPUMP, SNOW HI FLOW
  • 9
    7516822 SCREW
    SCREW
  • 10
    7555977 WASHER, THRUST
    WASHER, THRUST
  • 11
    5131855 DRIVESHAFT, WATER/OIL PUMP
    DRIVESHAFT, WATER/OIL PUMP
  • 12
    5411196 O-RING
    O-RING
  • 13
    5010391 BRNG, PUMP SHAFT, FLANGED
    BRNG, PUMP SHAFT, FLANGED
  • 14
    5811789 GASKET, OIL PUMP
    GASKET, OIL PUMP
  • 15
    2540054 PUMP ASSY., OIL, (4M136, 02, SNO)
    PUMP ASSY., OIL, (4M136, 02, SNO)
  • 16
    7517277 SCREW
    SCREW
