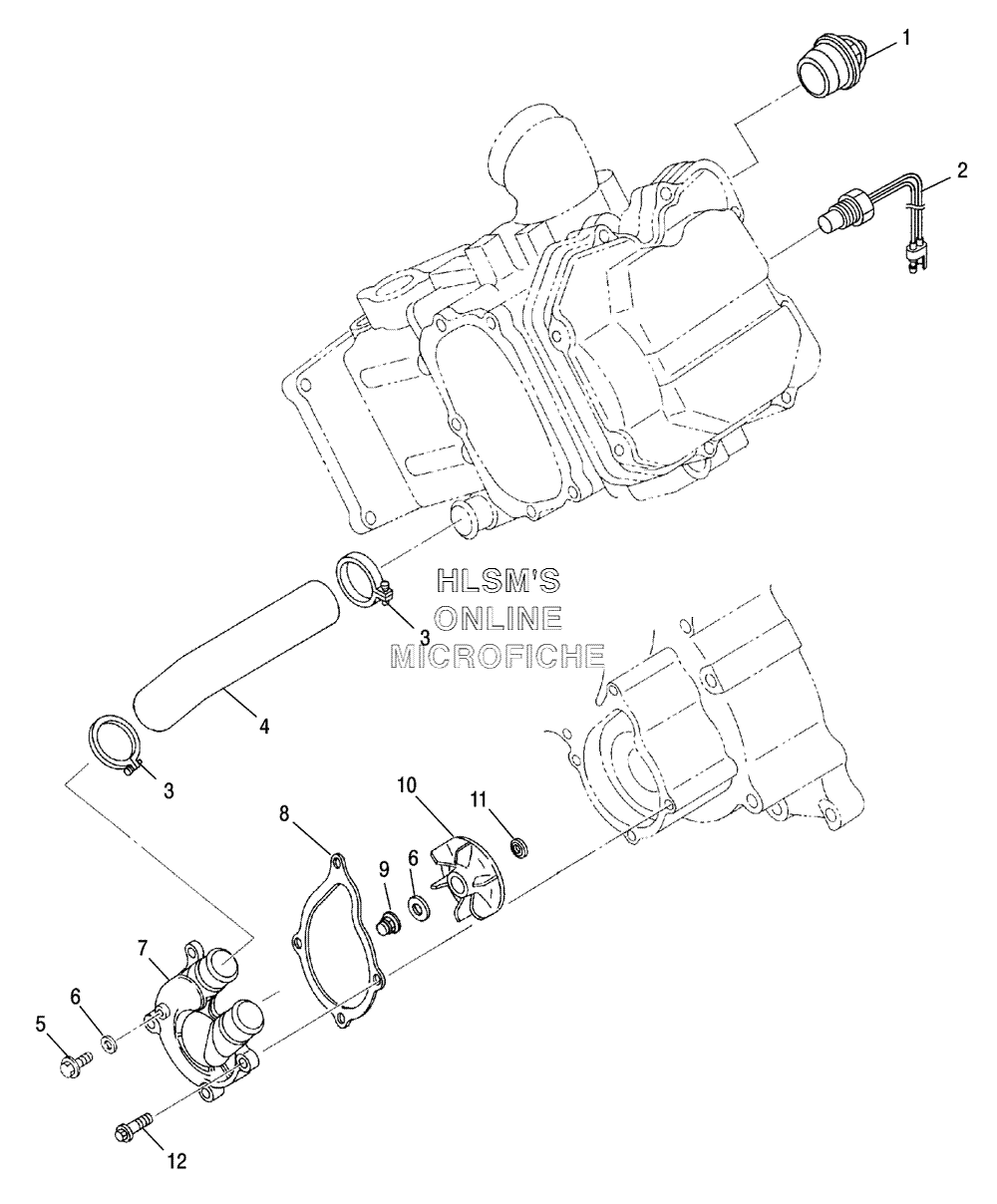

WATER PUMP для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
13084940 THERMOSTATTHERMOSTAT
-
23089246 THERMO SENSOR ASSY.THERMO SENSOR ASSY.
-
33086774 CLAMP, HOSECLAMP, HOSE
-
43085857 HOSE, MAINHOSE, MAIN
-
53085359 BOLT, FLANGEBOLT, FLANGE
-
67555998 WASHER, FLATWASHER, FLAT
-
73085351 COVER, WATER PUMPCOVER, WATER PUMP
-
83086840 GASKET, WATER, PUMPGASKET, WATER, PUMP
-
93085077 NUT, SELF, LOCKNUT, SELF, LOCK
-
103084935 IMPELLERIMPELLER
-
113084942 WASHER, SEALWASHER, SEAL
-
123084877 BOLT, FLANGEBOLT, FLANGE
