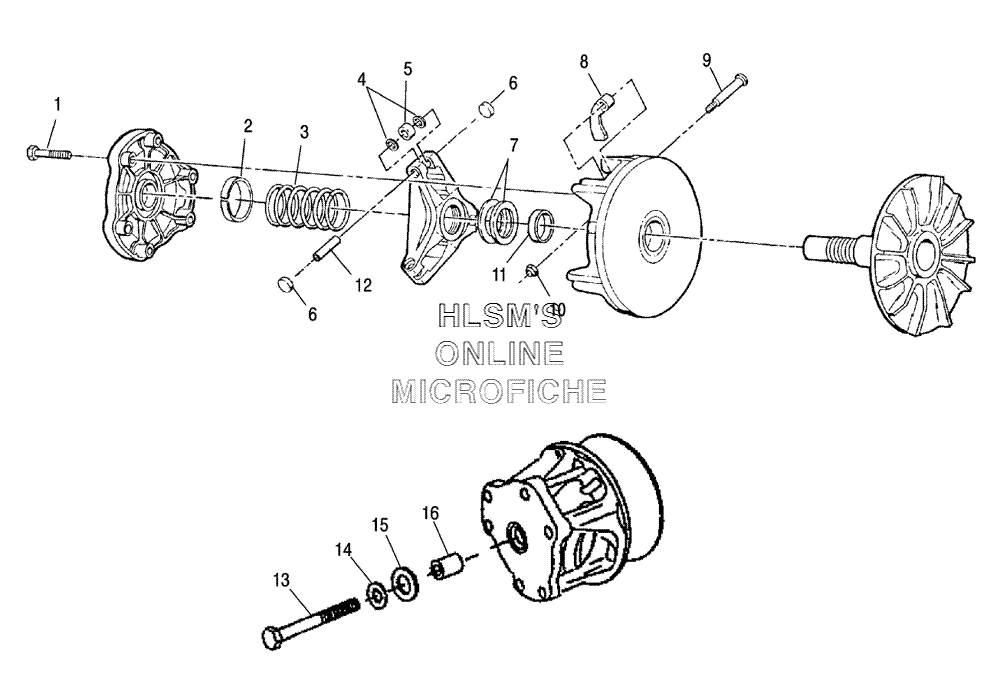

CLUTCH - DRIVE AND MOUNTING для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
17518062 SCREWSCREW
-
23576510 BEARING, COVERBEARING, COVER
-
37041157 SPRING, CLUTCHSPRING, CLUTCH
-
45430945 WASHERWASHER
-
51321457 ROLLER/BUSHING ASSY.ROLLER/BUSHING ASSY.
-
65431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
75210752 SPACER, .020SPACER, .020
-
75242981 SPACER, .025SPACER, .025
-
75210753 SPACER, .032SPACER, .032
-
75210754 SPACER, .050SPACER, .050
-
85630710 WT, SHIFT, 10WHWT, SHIFT, 10WH
-
97512266 BOLT, SHOULDERBOLT, SHOULDER
-
107541906 NUT FLEXLOCNUT FLEXLOC
-
113576504 BUSHING, MOVEABLE, 1/2 INCHBUSHING, MOVEABLE, 1/2 INCH
-
125020422 PIN, ROLLERPIN, ROLLER
-
137512566 BOLTBOLT
-
147575202 WASHER LOCKWASHER LOCK
-
155210748 WASHERWASHER
-
165430261 BUSHINGBUSHING
-
-1321976 DRIVE CLUTCH ASSY., WIDE (INCL. ALL LESS 3, 8)DRIVE CLUTCH ASSY., WIDE (INCL. ALL LESS 3, 8)
