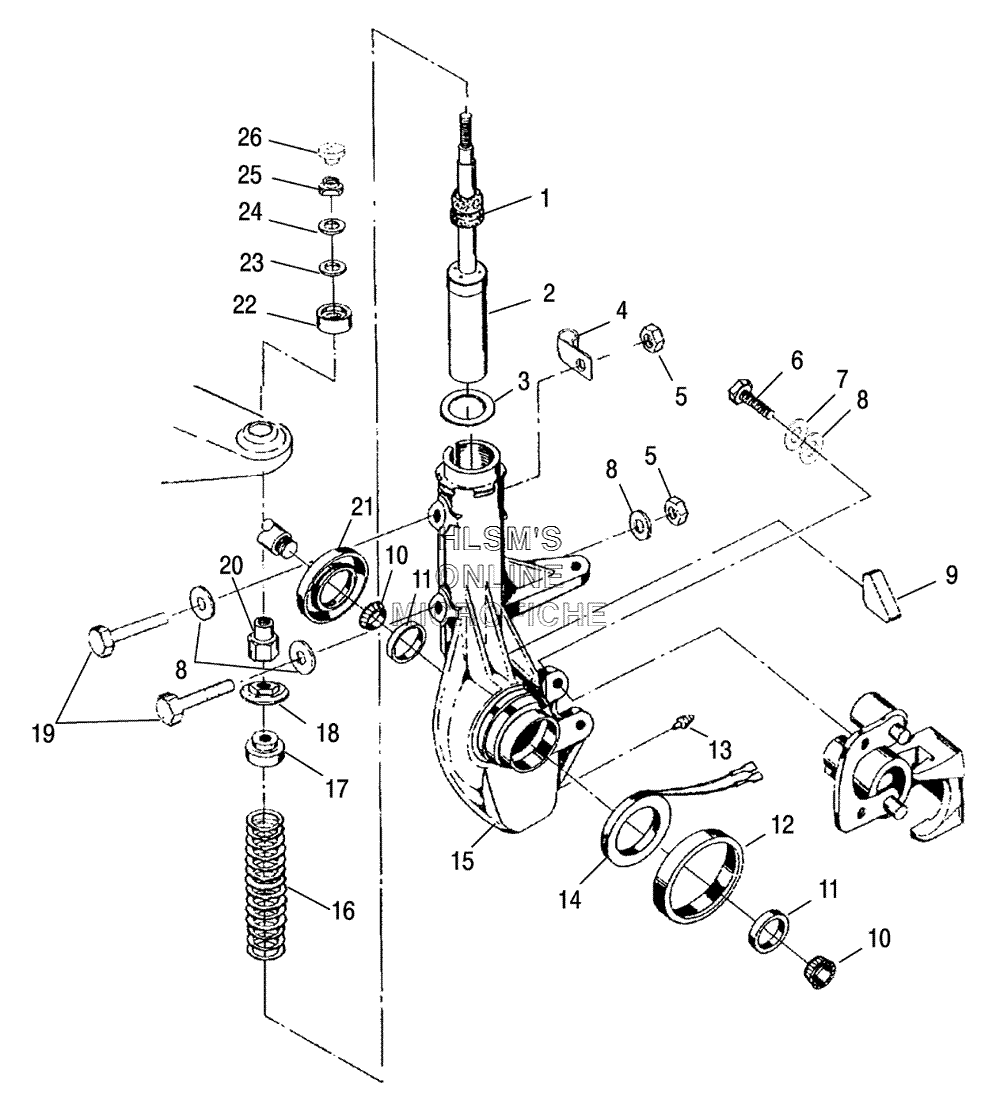

SUSPENSION - FRONT STRUT для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
15412665 BUMPER, MCU (17.8MM ID)BUMPER, MCU (17.8MM ID)
-
27041762 STRUT, FRONT (18X30MM)STRUT, FRONT (18X30MM)
-
35211115 WASHERWASHER
-
47080367 CLAMP, CABLECLAMP, CABLE
-
57542324 NUT, NYLOKNUT, NYLOK
-
67512365 SCREW, CAPSCREW, CAP
-
77552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87558402 WASHER, FLATWASHER, FLAT
-
95810439 RETAINER, WIRE, STRUT CASTRETAINER, WIRE, STRUT CAST
-
103554509 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
113554507 BRG, TAPER, ROLL CUPBRG, TAPER, ROLL CUP
-
125222193 SLEEVE, STRUT HUB SEALSLEEVE, STRUT HUB SEAL
-
137080306 FITTING, LUBE W/BALLFITTING, LUBE W/BALL
-
142410133 HUB/COIL KITHUB/COIL KIT
-
151820950 HUBSTRUT ASSY. (LEFT) (INCL. 9, 12, 15)HUBSTRUT ASSY. (LEFT) (INCL. 9, 12, 15)
-
151820951 HUBSTRUT ASSY. (RIGHT) (INCL. 9, 12, 15)HUBSTRUT ASSY. (RIGHT) (INCL. 9, 12, 15)
-
167041603-067 SPRING, COIL (STRUT)SPRING, COIL (STRUT)
-
175243364 RETAINER, SPRINGRETAINER, SPRING
-
185432871 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
197515339 BOLTBOLT
-
205132062 SPACERSPACER
-
213610028 SEAL, HUB STRUTSEAL, HUB STRUT
-
225432872 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
235810291 SPACER, RUBBERSPACER, RUBBER
-
247555749 WASHERWASHER
-
257547104 NUTNUT
-
267052028 GROMMETGROMMET
