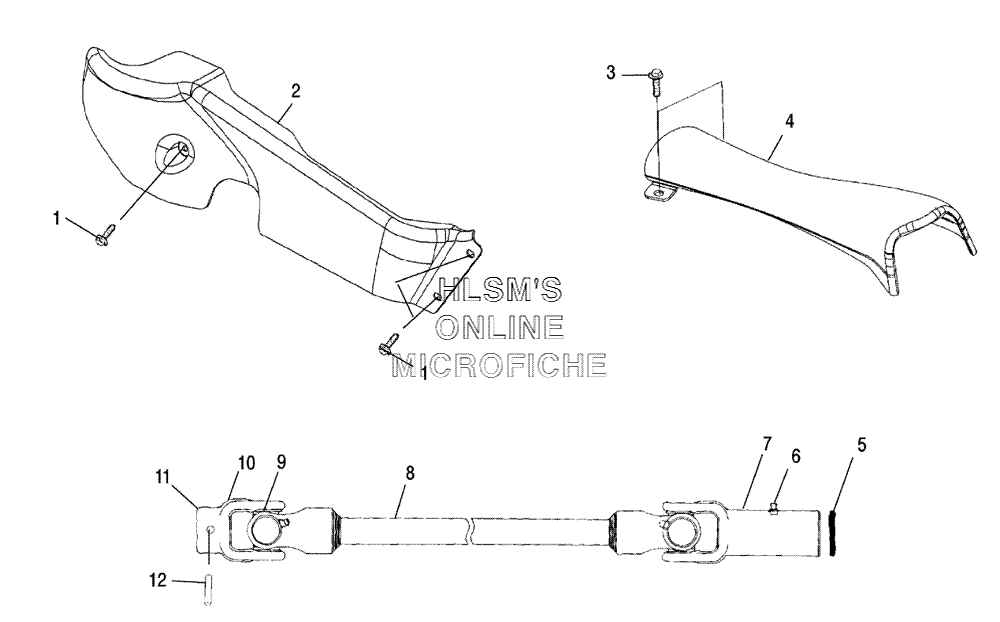

DRIVESHAFT - INTERMEDIATE для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
17517916 SCREWSCREW
-
25435245 GUARD, PROP SHAFT SIDEGUARD, PROP SHAFT SIDE
-
37517386 SCREWSCREW
-
45433154 GUARD, PROP SHAFT FRONTGUARD, PROP SHAFT FRONT
-
55411092 O-RINGO-RING
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
73260131 YOKEYOKE
-
81380217 PROPSHAFT ASSY., FRONTPROPSHAFT ASSY., FRONT
-
93260104 CROSS AND BEARING KITCROSS AND BEARING KIT
-
103260133 YOKEYOKE
-
111380217 PROPSHAFT ASSY., FRONT (INCL. 7, 10)PROPSHAFT ASSY., FRONT (INCL. 7, 10)
-
127661913 PIN, SPRINGPIN, SPRING
