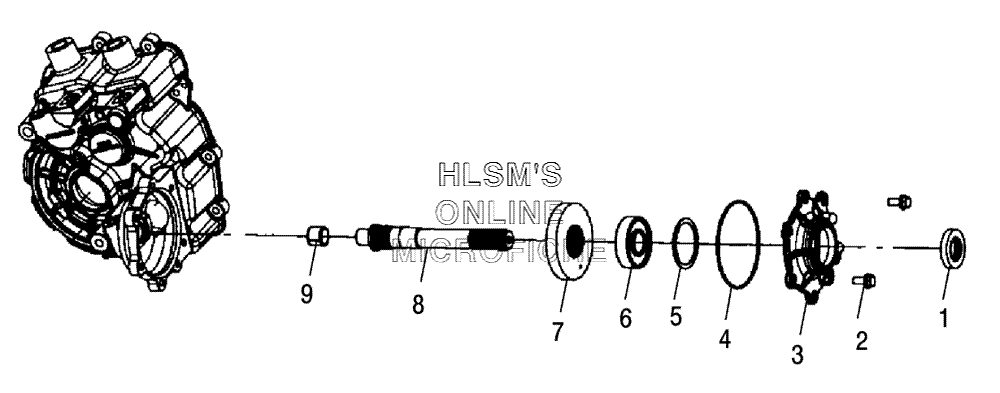

GEARCASE - OUTPUT для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
13233788 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
23233539 SCREWSCREW
-
33233556 COVER, SNORKELCOVER, SNORKEL
-
43233555 O-RINGO-RING
-
53233554 SHIMSHIM
-
63233020 BEARINGBEARING
-
73233898 GEAR (25 TEETH)GEAR (25 TEETH)
-
83233899 SHAFT, SNORKELSHAFT, SNORKEL
-
93233552 BUSHING, GARLOCKBUSHING, GARLOCK
