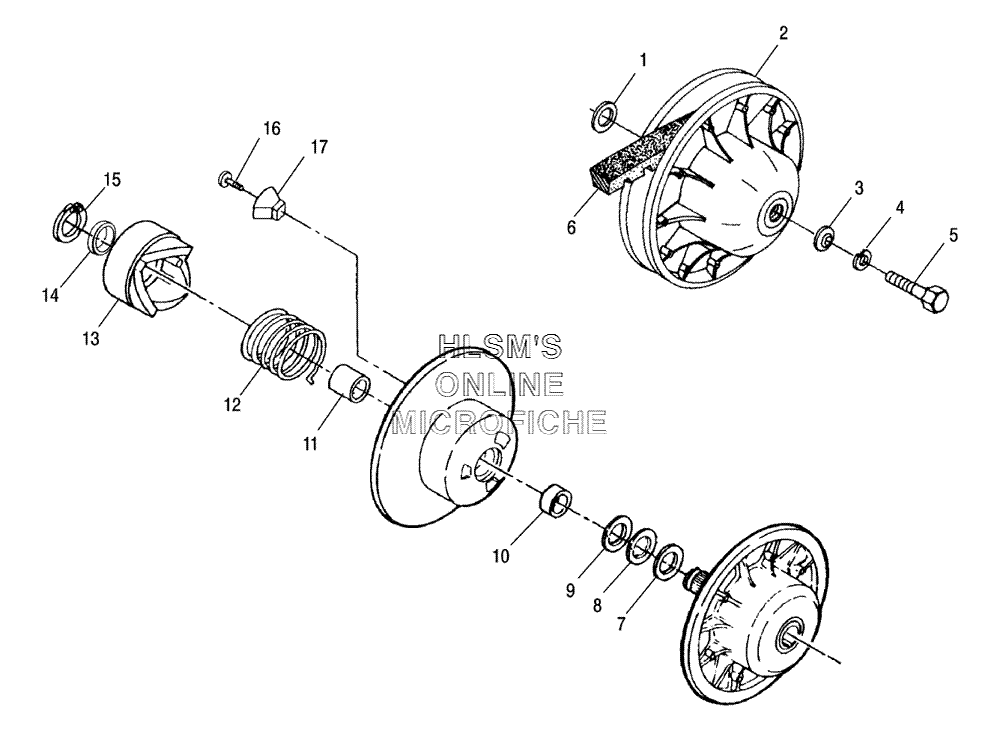

CLUTCH - DRIVEN для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
17556120 BUSHINGBUSHING
-
21321798 CLUTCH ASSY., DRIVEN (SILVER) 40DEG (INCL. 7, 11, 14, 17)CLUTCH ASSY., DRIVEN (SILVER) 40DEG (INCL. 7, 11, 14, 17)
-
35220646 WASHER, DOMEDWASHER, DOMED
-
47552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
57515384 BOLTBOLT
-
63211077 BELT, DRIVEBELT, DRIVE
-
77555898 WASHERWASHER
-
87556076 WASHERWASHER
-
97556804 WASHERWASHER
-
103576504 BUSHING, MOVEABLE (1/2 INCH)BUSHING, MOVEABLE (1/2 INCH)
-
113576511 BUSHING, MOVEABLE (1 INCH)BUSHING, MOVEABLE (1 INCH)
-
127041499 SPRING, CLUTCHSPRING, CLUTCH
-
135131446 RAMP, STA.MACHRAMP, STA.MACH
-
145210752 SPACER .020SPACER .020
-
157710448 RING, RETAININGRING, RETAINING
-
167511854 BOLTBOLT
-
175430766 BUTTON, RAMPBUTTON, RAMP
