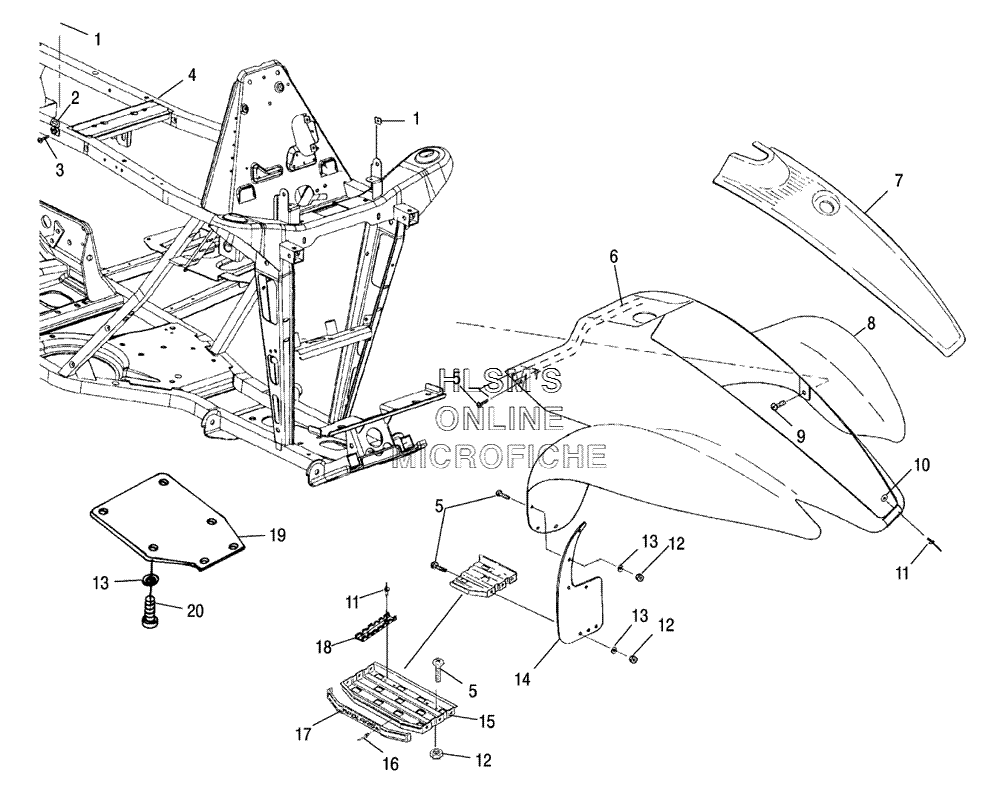

FENDER - FRONT для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7670057 NUT, SPEED
    NUT, SPEED
  • 2
    5248183 BRACKET, CAB MOUNT (LEFT)
    BRACKET, CAB MOUNT (LEFT)
  • 2
    5248184 BRACKET, CAB MOUNT (RIGHT)
    BRACKET, CAB MOUNT (RIGHT)
  • 3
    7517386 SCREW
    SCREW
  • 4
    1014660-067 MAIN FRAME (BLACK)
    MAIN FRAME (BLACK)
  • 5
    7512282 BOLT (BLACK)
    BOLT (BLACK)
  • 6
    5811527 SEAL, FOAM
    SEAL, FOAM
  • 7
    5432553-070 COVER, FRONT (BLACK)
    COVER, FRONT (BLACK)
  • 8
    2632993-496 CAB ASSY., FRONT N/MET (W/WARNING DECALS)
    CAB ASSY., FRONT N/MET (W/WARNING DECALS)
  • 9
    7517916 SCREW
    SCREW
  • 10
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 11
    7621472 RIVET
    RIVET
  • 12
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 13
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 14
    5811831 MUDFLAP (FRONT/LEFT)
    MUDFLAP (FRONT/LEFT)
  • 14
    5850150 MUDFLAP (RIGHT/FRONT)
    MUDFLAP (RIGHT/FRONT)
  • 15
    1014653-067 FOOTPAD, CDS (BLACK)
    FOOTPAD, CDS (BLACK)
  • 16
    7661825 RIVET
    RIVET
  • 17
    5431484 TRIM, FOOTREST
    TRIM, FOOTREST
  • 18
    5242525-067 BRACKET, HEEL CLEAT (BLACK)
    BRACKET, HEEL CLEAT (BLACK)
  • 19
    5432763 GUARD, ROCK
    GUARD, ROCK
  • 20
    7515179 SCREW
    SCREW
