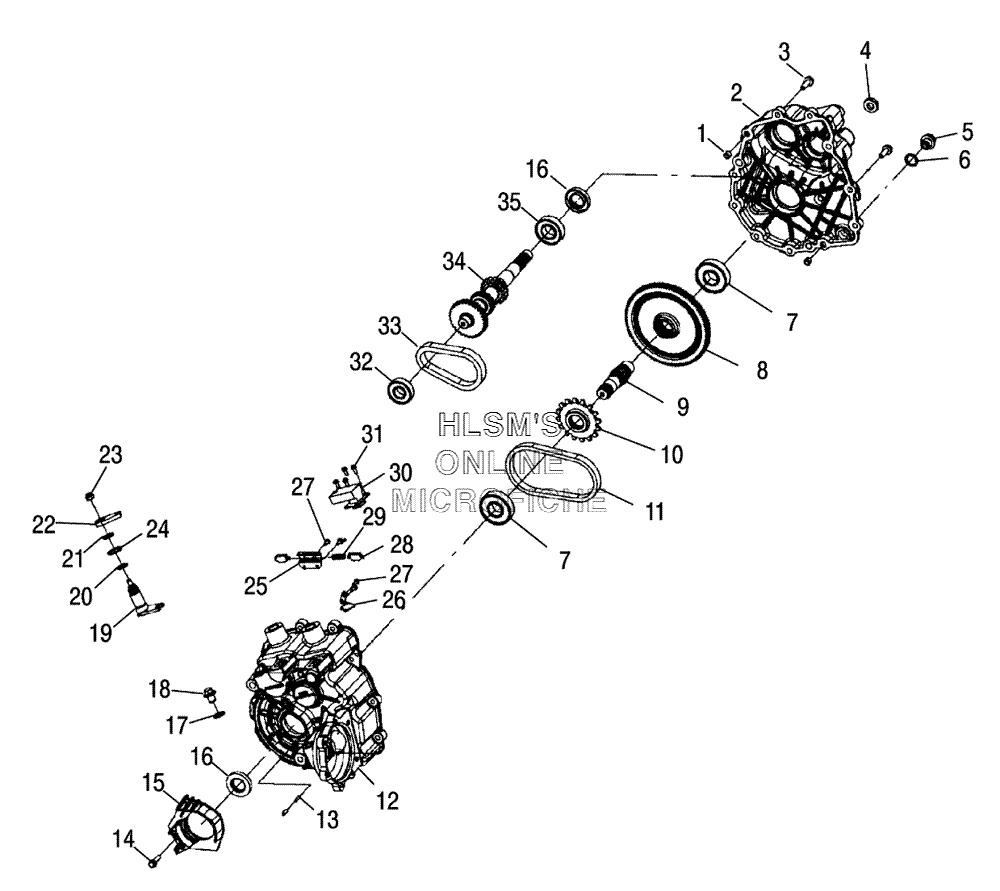

GEARCASE для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
13233529 PIPE, KNOCKPIPE, KNOCK
-
23234036 GEARCASE (LEFT)GEARCASE (LEFT)
-
33233252 SCREWSCREW
-
43233527 BUSHING, PIVOTBUSHING, PIVOT
-
53233448 PLUGPLUG
-
63234034 WASHER, DRAIN PLUG, NYLONWASHER, DRAIN PLUG, NYLON
-
73233020 BEARINGBEARING
-
83233558 GEAR (98 TEETH)GEAR (98 TEETH)
-
93233544 SHAFT, OUTPUTSHAFT, OUTPUT
-
103233545 SPROCKET (16/26 TEETH)SPROCKET (16/26 TEETH)
-
113233546 CHAIN, ROLLERCHAIN, ROLLER
-
123233896 GEARCASE (RIGHT)GEARCASE (RIGHT)
-
133233037 VENTVENT
-
143233026 SCREWSCREW
-
153233897 GUIDE, CHAINGUIDE, CHAIN
-
163233788 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
173233872 WASHER, NYLONWASHER, NYLON
-
183233711 PLUG, OIL FILLPLUG, OIL FILL
-
193233559 SHAFT, SHIFT, HI/REV.SHAFT, SHIFT, HI/REV.
-
203233548 O-RINGO-RING
-
213233045 RING, RETAININGRING, RETAINING
-
223234148 BELLCRANKBELLCRANK
-
233233961 NUT, LOCK HEX FLANGE NYLONNUT, LOCK HEX FLANGE NYLON
-
243233040 WASHERWASHER
-
253233309 BRACKET, INNERTERLOCKBRACKET, INNERTERLOCK
-
263233043 DEFLECTOR, OILDEFLECTOR, OIL
-
273233747 SCREW, TAPPING, W/LOCK WASHERSCREW, TAPPING, W/LOCK WASHER
-
283233308 PIN, INTERLOCKPIN, INTERLOCK
-
293233550 SPRING, SHIFT INTERLOCKSPRING, SHIFT INTERLOCK
-
303234002 SWITCH, GEAR INDICATIONSWITCH, GEAR INDICATION
-
313233749 SCREWSCREW
-
323233018 BEARINGBEARING
-
333233036 CHAIN, SILENT (34P)CHAIN, SILENT (34P)
-
343233536 SHAFT, INPUT, HI/REV.SHAFT, INPUT, HI/REV.
-
353233019 BEARINGBEARING
-
-1341502 GEARCASE ASSY. (INCL. ALL)GEARCASE ASSY. (INCL. ALL)
