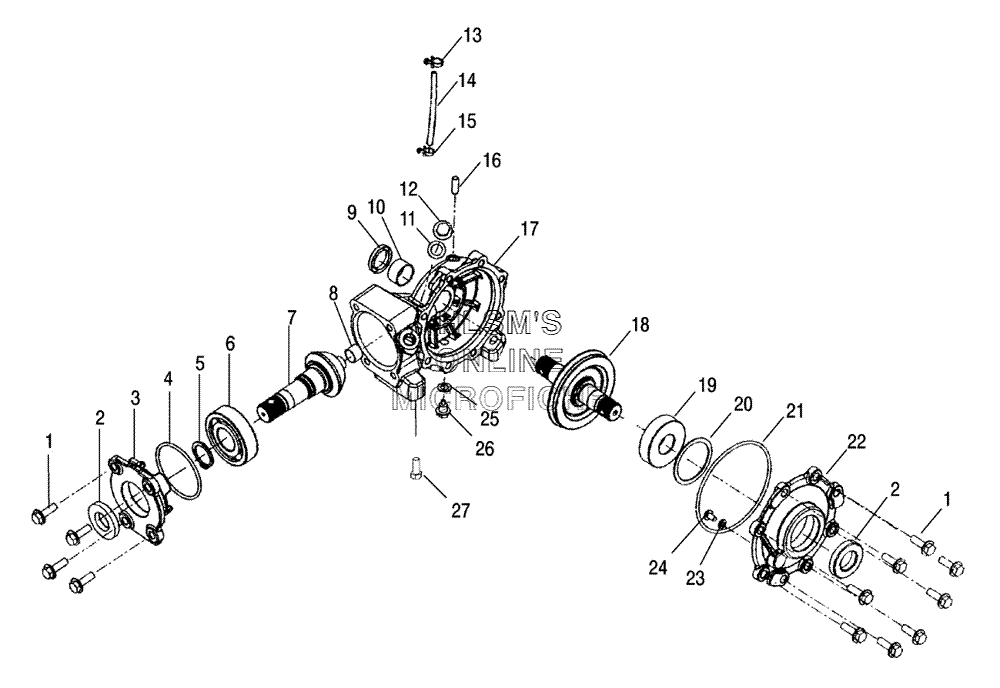

DIFFERENTIAL - FRONT для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3233252 SCREW
    SCREW
  • 2
    3233248 SEAL-TRIPLE LIP
    SEAL-TRIPLE LIP
  • 3
    3233701 INPUT COVER, FRONT HOUSING
    INPUT COVER, FRONT HOUSING
  • 4
    3233700 O-RING
    O-RING
  • 5
    3233699 RING, RETAINING
    RING, RETAINING
  • 6
    3233589 BEARING, BALL
    BEARING, BALL
  • 7
    3233726 PINION, INPUT (14 TEETH)
    PINION, INPUT (14 TEETH)
  • 8
    3233541 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 9
    3233319 SEAL
    SEAL
  • 10
    3233697 BUSHINHG, GARLOCK
    BUSHINHG, GARLOCK
  • 11
    3233324 WASHER
    WASHER
  • 12
    3233711 PLUG, OIL FILL
    PLUG, OIL FILL
  • 13
    7080756 CLIP, SNAP, INNER
    CLIP, SNAP, INNER
  • 14
    8450003-1525 LINE, FUEL (1/4 ID 1525 CM.)
    LINE, FUEL (1/4 ID 1525 CM.)
  • 15
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    3233524 TUBE, VENT
    TUBE, VENT
  • 17
    3233696 GEARCASE
    GEARCASE
  • 18
    3233725 SHAFT, OUTPUT (29 TEETH)
    SHAFT, OUTPUT (29 TEETH)
  • 19
    3233020 BEARING
    BEARING
  • 20
    3233554 SHIM
    SHIM
  • 21
    3233693 O-RING
    O-RING
  • 22
    3233724 COVER, OUTPUT
    COVER, OUTPUT
  • 23
    3233583 SHIM
    SHIM
  • 24
    3233582 BUTTON, THRUST
    BUTTON, THRUST
  • 25
    3233254 WASHER, PLUG
    WASHER, PLUG
  • 26
    3233253 PLUG-HEX FLANGE
    PLUG-HEX FLANGE
  • 27
    7518364 BOLT
    BOLT
  • -
    1341323 GEARCASE, FRONT ASSY. (INCL. 1, 12, 16, 26)
    GEARCASE, FRONT ASSY. (INCL. 1, 12, 16, 26)
