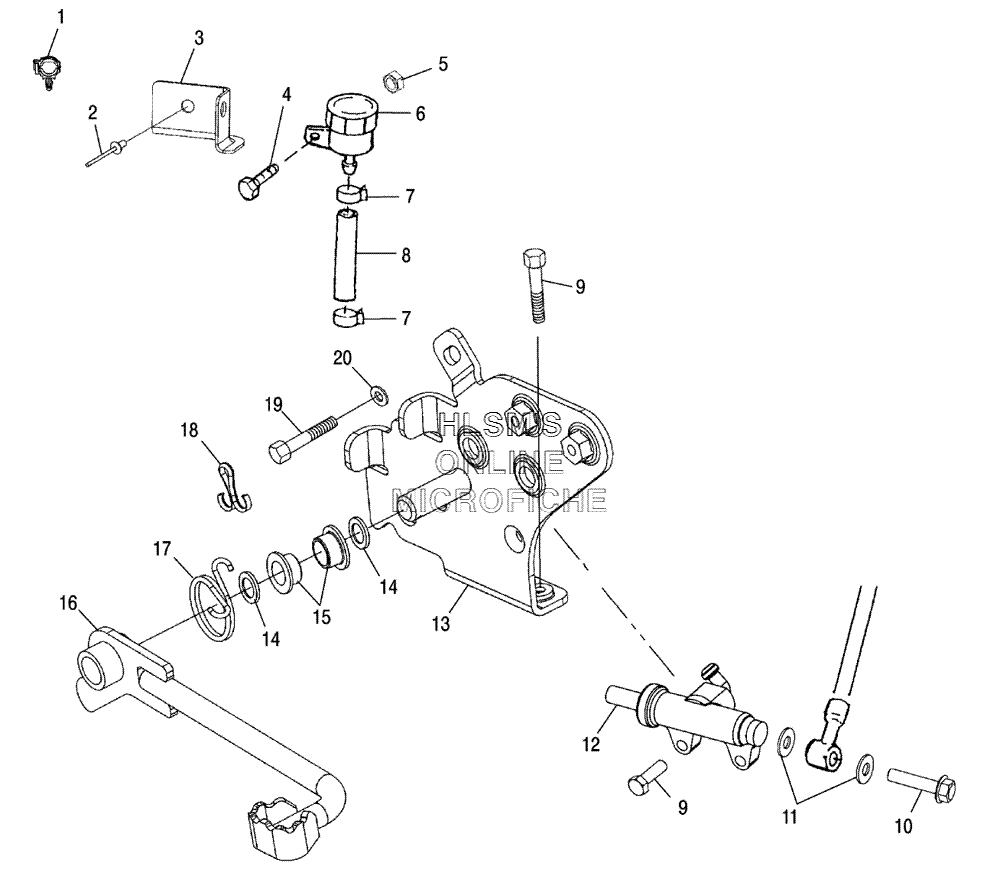

BRAKE - REAR MASTER CYLINDER для Polaris Scrambler 500 4x4 (A06BG50AA) - 2006 года выпуска
-
№АртикулНазвание
-
17670102 CLIPCLIP
-
27661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
35240030 BRACKET, RESERVOIR, PLATEDBRACKET, RESERVOIR, PLATED
-
47512240 BOLTBOLT
-
57542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
61930854 RESERVOIR ASSY., REAR BRAKERESERVOIR ASSY., REAR BRAKE
-
77080003 CLAMP, HOSECLAMP, HOSE
-
81910812 HOSE, RESERVOIR (1/4 ID, 19 IN)HOSE, RESERVOIR (1/4 ID, 19 IN)
-
97515158 SCREWSCREW
-
101910499 BOLT, BANJO (10MMX1.00)BOLT, BANJO (10MMX1.00)
-
115410988 SEALSEAL
-
121910791 BRAKE MASTER CYLINDER ASSY., FOOTBRAKE MASTER CYLINDER ASSY., FOOT
-
131910798-067 BRAKE MOUNT (BLACK)BRAKE MOUNT (BLACK)
-
147555919 WASHERWASHER
-
155433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
161910767-067 WELD, BRAKE PEDAL (BLACK)WELD, BRAKE PEDAL (BLACK)
-
177041750 SPRING, TORSION, BRAKESPRING, TORSION, BRAKE
-
187661401 PIN, COTTERPIN, COTTER
-
197512232 BOLTBOLT
-
207558301 WASHER, FLATWASHER, FLAT
