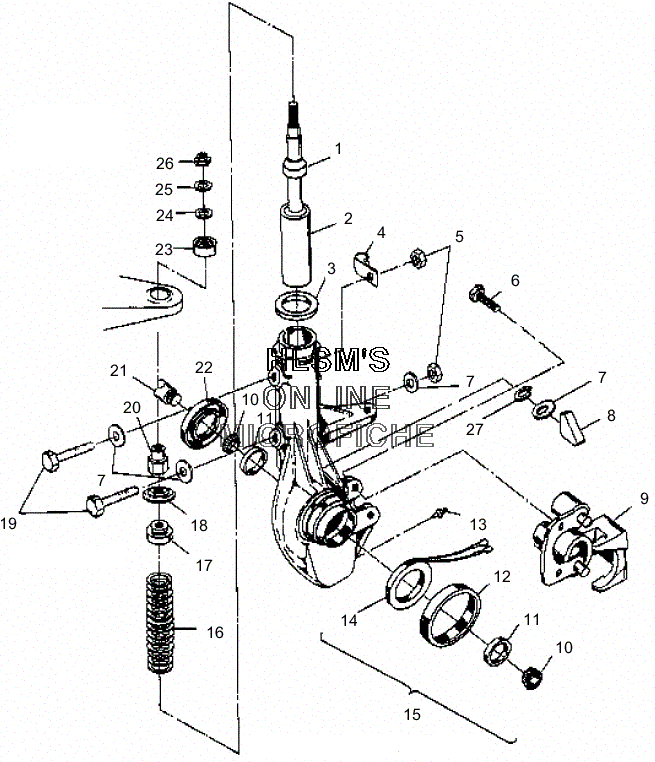

SUSPENSION - FRONT STRUT для Polaris XPLORER (A00AG25CA) - 2000 года выпуска
-
№АртикулНазвание
-
15411608 BUMPER (17.80 MM ID)BUMPER (17.80 MM ID)
-
27041761 STRUT (FRONT) (18X30 MM, 153.8 MM ST)STRUT (FRONT) (18X30 MM, 153.8 MM ST)
-
35211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
-
47080573 CLAMP, RUBBER COATEDCLAMP, RUBBER COATED
-
57542303 NUT, FLEX-LOCNUT, FLEX-LOC
-
67512365 SCREW, CAPSCREW, CAP
-
77558402 WASHER, STEELWASHER, STEEL
-
85810439 RETAINER, WIRE STRUT CASTRETAINER, WIRE STRUT CAST
-
103554509 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
113554507 BEARING, TAPERED ROLL CUPBEARING, TAPERED ROLL CUP
-
125222193 SLEEVE, STRUT HUB SEALSLEEVE, STRUT HUB SEAL
-
137080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
142410133 HUB/COIL KITHUB/COIL KIT
-
152201311 HUB STRUT (BROWN/WHITE) (LEFT) (INCL. 8, 11-14, 22)HUB STRUT (BROWN/WHITE) (LEFT) (INCL. 8, 11-14, 22)
-
152201312 HUB STRUT (BROWN/WHITE) (RIGHT) (INCL. 8, 11-14, 22)HUB STRUT (BROWN/WHITE) (RIGHT) (INCL. 8, 11-14, 22)
-
167041873-067 SPRING, COMP, 55-105 #/IN (BLACK)SPRING, COMP, 55-105 #/IN (BLACK)
-
175243364 RETAINER SPRING, STRUTRETAINER SPRING, STRUT
-
185430807 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
197515339 BOLTBOLT
-
205132062 SPACER, STRUT (1/2-20)SPACER, STRUT (1/2-20)
-
223610028 SEAL, HUB STRUTSEAL, HUB STRUT
-
235430806 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
245810291 SPACER, RUBBERSPACER, RUBBER
-
257555749 WASHERWASHER
-
267547104 NUTNUT
-
277552901 LOCK, WASHERLOCK, WASHER
