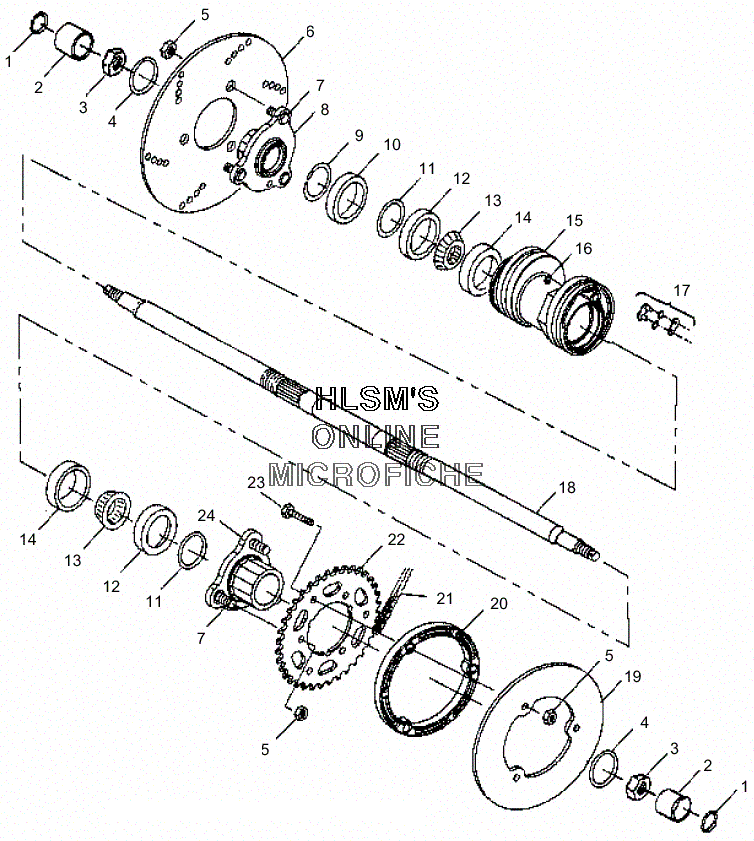

HOUSING - REAR W/ AXLE для Polaris XPLORER (A00AG25CA) - 2000 года выпуска`
-
№АртикулНазвание
-
17710472 RING, RETAININGRING, RETAINING
-
25510313 EXTRUSION, RETAINER NUTEXTRUSION, RETAINER NUT
-
37547031 NUT, JAMNUT, JAM
-
45411555 SEAL, FOAMSEAL, FOAM
-
57542439 NUT, LOCKNUT, LOCK
-
65211849 DISC, BRAKE VENTEDDISC, BRAKE VENTED
-
77515513 STUDSTUD
-
81520259 HUB BRAKE DISC ASSY., LOCKING (INCL. 7)HUB BRAKE DISC ASSY., LOCKING (INCL. 7)
-
97710496 RETAINING RING, EATONRETAINING RING, EATON
-
105010462 SPACER, AXLESPACER, AXLE
-
115410889 O-RINGO-RING
-
123610070 SEAL, LIPSEAL, LIP
-
133554518 BEARING, CONE TAPEREDBEARING, CONE TAPERED
-
143554517 BEARING, CUP TAPEREDBEARING, CUP TAPERED
-
155132098 HOUSING, AXLE (REAR)HOUSING, AXLE (REAR)
-
167080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
173225026 CONNECTOR LINK, CHAINCONNECTOR LINK, CHAIN
-
185131968 AXLE KIT ASSY.AXLE KIT ASSY.
-
195211618-067 GUARD, SPROCKET (42 TEETH)GUARD, SPROCKET (42 TEETH)
-
205630586 SPACER, SPROCKET GUARDSPACER, SPROCKET GUARD
-
213224056-082 CHAIN, O-RING (82 PITCH)CHAIN, O-RING (82 PITCH)
-
223222070 SPROCKET (42TEETH)SPROCKET (42TEETH)
-
237515540 BOLTBOLT
-
241520258 HUB ASSY., SPROCKET LOCKING (INCL. 7)HUB ASSY., SPROCKET LOCKING (INCL. 7)
