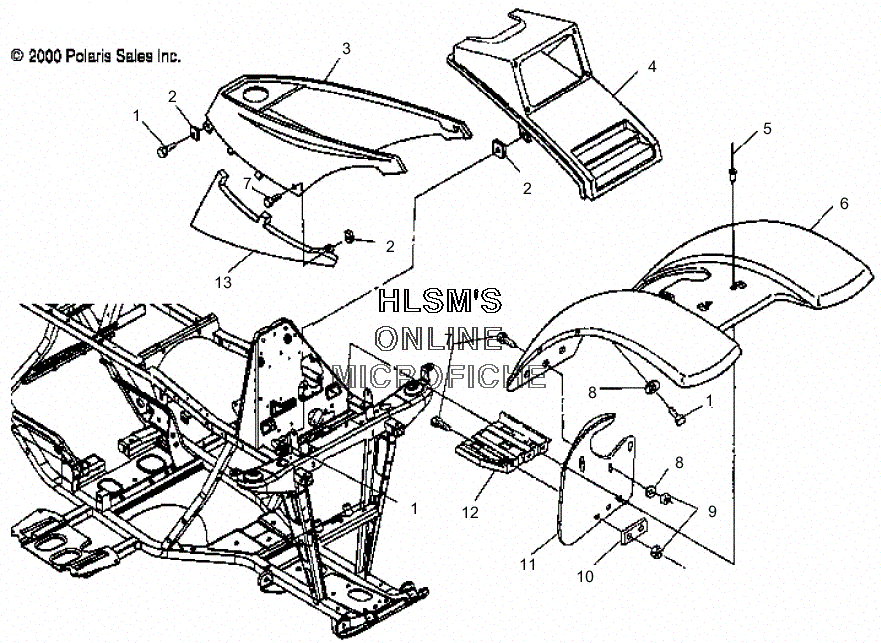

FENDER - FRONT W/ SIDE PANELS для Polaris XPLORER (A00AG25CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7512232 BOLT
    BOLT
  • 2
    7670060 NUT, SPEED
    NUT, SPEED
  • 3
    5431197-195 COVER, FUELTANK (E.B.GREEN)
    COVER, FUELTANK (E.B.GREEN)
  • 5
    7621460 RIVET
    RIVET
  • 6
    2632130-195 FENDER, SVC (FRONT/E.B. GREEN) (INCL. WARNING DECALS)
    FENDER, SVC (FRONT/E.B. GREEN) (INCL. WARNING DECALS)
  • 7
    7512282 BOLT (BLACK)
    BOLT (BLACK)
  • 8
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 9
    7542122 NUT, LOCK
    NUT, LOCK
  • 10
    5211131-067 BRACKET, MUD FLAP (LEFT)
    BRACKET, MUD FLAP (LEFT)
  • 11
    5811946 MUD FLAP (FRONT/LEFT)
    MUD FLAP (FRONT/LEFT)
  • 11
    5811947 MUD FLAP (FRONT/RIGHT)
    MUD FLAP (FRONT/RIGHT)
  • 13
    5433578-195 COVER, SIDE PANEL (GEN2/LEFT) (E.B. GREEN)
    COVER, SIDE PANEL (GEN2/LEFT) (E.B. GREEN)
  • 13
    5433579-195 COVER, SIDE PANEL (RIGHT) (E.B. GREEN)
    COVER, SIDE PANEL (RIGHT) (E.B. GREEN)
