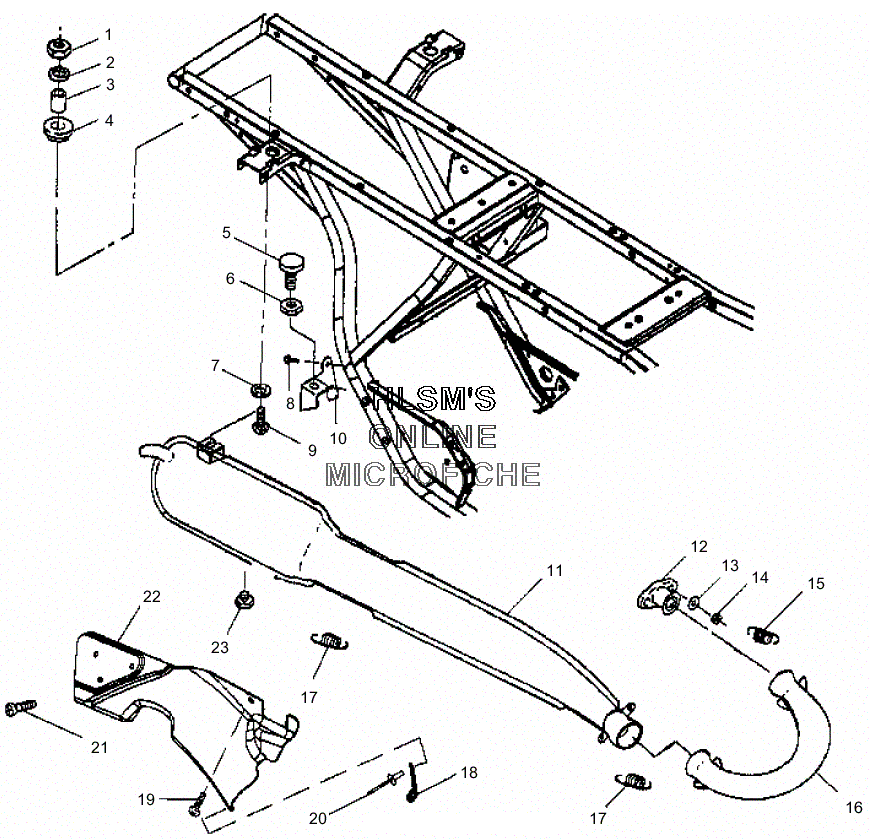

EXHAUST SYSTEM для Polaris XPLORER (A00AG25CA) - 2000 года выпуска
-
№АртикулНазвание
-
17542324 NUTNUT
-
27555716 WASHERWASHER
-
35010192 BUSHING, RES. MOUNTBUSHING, RES. MOUNT
-
45410241 DAMPENERDAMPENER
-
53110064 MOUNT, TORQUE STOPMOUNT, TORQUE STOP
-
67542301 NUT, HEXAGONNUT, HEXAGON
-
75410436 WASHER, RUBBERWASHER, RUBBER
-
87512232 BOLTBOLT
-
97515316 BOLTBOLT
-
105243199-067 BRACKET, EXHAUST MOUNT (BLACK)BRACKET, EXHAUST MOUNT (BLACK)
-
107547101 NUTSERTNUTSERT
-
111261022-029 MUFFLER/SPARK ARRESTER (BLACK)MUFFLER/SPARK ARRESTER (BLACK)
-
121260922-029 MANIFOLD (BLACK)MANIFOLD (BLACK)
-
157042029 SPRING, EXHAUSTSPRING, EXHAUST
-
161261060-029 HEADPIPE (BLACK)HEADPIPE (BLACK)
-
177042031 SPRING, EXHAUSTSPRING, EXHAUST
-
185244130-067 BRACKET, EXHAUST SHIELD (BLACK)BRACKET, EXHAUST SHIELD (BLACK)
-
197517264 SCREWSCREW
-
207621462 RIVETRIVET
-
217515140 SCREWSCREW
-
221260995 SHIELD, EXHAUSTSHIELD, EXHAUST
-
225811849 FOAM, FOIL HEAT SHIELDFOAM, FOIL HEAT SHIELD
-
237512666 BOLTBOLT
