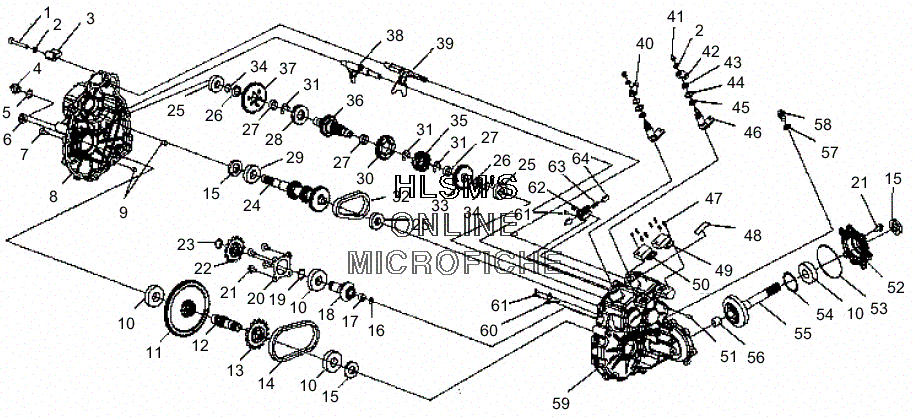

GEARCASE для Polaris XPLORER (A00AG25CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3233734 SCREW, CAP
    SCREW, CAP
  • 2
    3233054 WASHER
    WASHER
  • 3
    3233735 DAMPENER, CARBURETOR VIBRATION
    DAMPENER, CARBURETOR VIBRATION
  • 4
    3233448 PLUG
    PLUG
  • 5
    3233035 WASHER
    WASHER
  • 6
    3233527 BUSHING, PIVOT
    BUSHING, PIVOT
  • 7
    3233252 SCREW
    SCREW
  • 8
    3233632 GEARCASE (LEFT)
    GEARCASE (LEFT)
  • 9
    3233529 PIPE, KNOCK
    PIPE, KNOCK
  • 10
    3233020 BEARING
    BEARING
  • 11
    3233360 GEAR, OUTPUT (100 TEETH)
    GEAR, OUTPUT (100 TEETH)
  • 12
    3233544 SHAFT, OUTPUT
    SHAFT, OUTPUT
  • 13
    3233729 SPROCKET (15/26 TEETH)
    SPROCKET (15/26 TEETH)
  • 14
    3233546 CHAIN, ROLLER
    CHAIN, ROLLER
  • 15
    3233248 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 16
    3233542 WASHER, THRUST
    WASHER, THRUST
  • 17
    3233541 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 18
    3233540 SHAFT, PINION (13 TEETH)
    SHAFT, PINION (13 TEETH)
  • 19
    3233306 RING, RETAINING
    RING, RETAINING
  • 20
    3233263 COVER, CENTER DRIVE BEARING
    COVER, CENTER DRIVE BEARING
  • 21
    3233539 SCREW
    SCREW
  • 22
    3233730 SPROCKET (15/22 TEETH)
    SPROCKET (15/22 TEETH)
  • 23
    3233537 RING, RETAINING
    RING, RETAINING
  • 24
    3233704 SHAFT, INPUT (HIGH/LOW/REVERSE)
    SHAFT, INPUT (HIGH/LOW/REVERSE)
  • 25
    3233018 BEARING
    BEARING
  • 26
    3233176 WASHER
    WASHER
  • 27
    3233718 BEARING, SPLIT CAGE
    BEARING, SPLIT CAGE
  • 28
    3233732 DOG, ENGAGEMENT (LOW)
    DOG, ENGAGEMENT (LOW)
  • 29
    3233019 BEARING
    BEARING
  • 30
    3233719 SPROCKET (24 TEETH)
    SPROCKET (24 TEETH)
  • 31
    3233720 RING, RETAINING RING EXTERNAL
    RING, RETAINING RING EXTERNAL
  • 32
    3233036 CHAIN, SILENT (34P)
    CHAIN, SILENT (34P)
  • 33
    3233722 GEAR (30 TEETH)
    GEAR (30 TEETH)
  • 34
    3233177 RING, RETAINING
    RING, RETAINING
  • 35
    3233721 DOG, ENGAGEMENT (HIGH/REVERSE)
    DOG, ENGAGEMENT (HIGH/REVERSE)
  • 36
    3233733 SHAFT, REVERSE (29 TEETH)
    SHAFT, REVERSE (29 TEETH)
  • 37
    3233731 GEAR (33 TEETH)
    GEAR (33 TEETH)
  • 38
    3233706 SHIFT FORK (LOW)
    SHIFT FORK (LOW)
  • 39
    3233633 FORK, SHIFT (HIGH/REVERSE)
    FORK, SHIFT (HIGH/REVERSE)
  • 40
    3233547 BELLCRANK
    BELLCRANK
  • 41
    3233055 NUT
    NUT
  • 42
    3233153 BELLCRANK
    BELLCRANK
  • 43
    3233045 RING, RETAINING
    RING, RETAINING
  • 44
    3233040 WASHER
    WASHER
  • 45
    3233548 O-RING
    O-RING
  • 46
    3233549 SHAFT, SHIFT
    SHAFT, SHIFT
  • 47
    3233691 SCREW
    SCREW
  • 48
    3233636 DECAL, SWITCH
    DECAL, SWITCH
  • 49
    3233635 SWITCH, H/R ITW
    SWITCH, H/R ITW
  • 50
    3233617 SWITCH, ITW 2 POSITION
    SWITCH, ITW 2 POSITION
  • 51
    3233037 VENT
    VENT
  • 52
    3233556 COVER, SNORKEL
    COVER, SNORKEL
  • 53
    3233555 O-RING
    O-RING
  • 54
    3233554 SHIM
    SHIM
  • 55
    3233723 SNORKEL SUB ASSY., SHAFT
    SNORKEL SUB ASSY., SHAFT
  • 56
    3233552 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 57
    3233324 WASHER
    WASHER
  • 58
    3233711 PLUG, OIL FILL
    PLUG, OIL FILL
  • 59
    3233705 GEARCASE, HLR (RIGHT)
    GEARCASE, HLR (RIGHT)
  • 60
    3233043 DEFLECTOR, OIL
    DEFLECTOR, OIL
  • 61
    3233033 SCREW, TAPPING W/LOCK WASHER
    SCREW, TAPPING W/LOCK WASHER
  • 62
    3233309 BRACKET, INTERLOCK
    BRACKET, INTERLOCK
  • 63
    3233032 SPRING
    SPRING
  • 64
    3233308 PIN, INTERLOCK
    PIN, INTERLOCK
  • 1A
    1341314 GEARCASE, HLR CDS 4X4 (INCL. 1-64)
    GEARCASE, HLR CDS 4X4 (INCL. 1-64)
