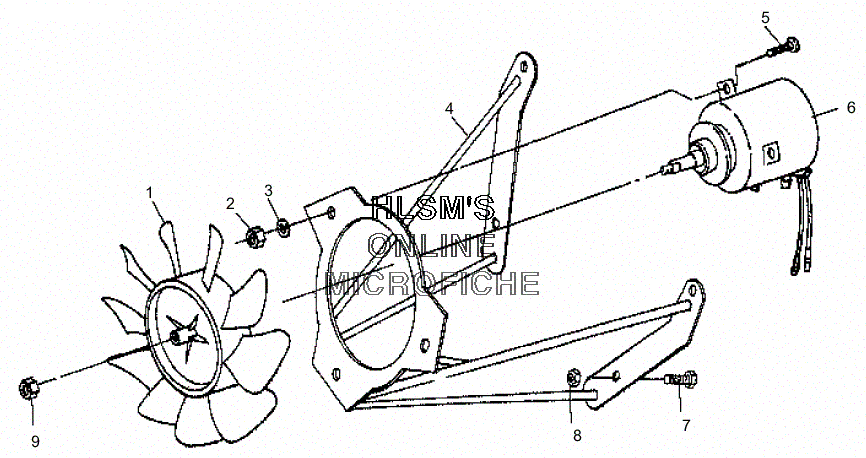

COOLING SYSTEM для Polaris XPLORER (A00AG25CA) - 2000 года выпуска
-
№АртикулНазвание
-
15432619 BLADE, FANBLADE, FAN
-
27547004 NUTNUT
-
37558201 WASHER, FLATWASHER, FLAT
-
41040568-067 MOUNT, FAN (BLACK)MOUNT, FAN (BLACK)
-
57511875 SCREWSCREW
-
64170013 MOTOR, FAN LIQ DRIVE SHAFT CONN.MOTOR, FAN LIQ DRIVE SHAFT CONN.
-
77512113 SCREWSCREW
-
87542122 NUT, LOCKNUT, LOCK
-
97542103 NUT, LOCKNUT, LOCK
