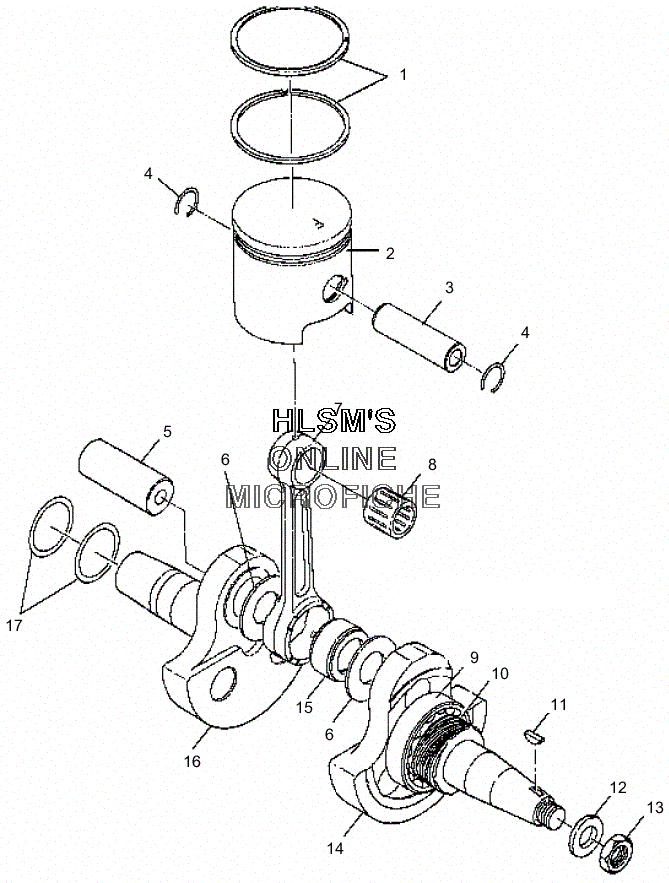

CRANKSHAFT W/ PISTON для Polaris XPLORER (A00AG25CA) - 2000 года выпуска`

№

Артикул

Название
1

3083546 RING, PISTON (STD)

RING, PISTON (STD)

6 030 ₽
1

3083678 RING (0.25MM/ .010'' O/S) (OPT)

RING (0.25MM/ .010'' O/S) (OPT)

5 310 ₽
1

3083717 RING (0.50MM/ .020'' O/S) (OPT)

RING (0.50MM/ .020'' O/S) (OPT)

5 830 ₽
1

3083974 RING, PISTON (1.00MM/ .040'' O/S) (OPT)

RING, PISTON (1.00MM/ .040'' O/S) (OPT)

7 490 ₽
2

3083942 PISTON (STD)

PISTON (STD)

25 900 ₽
2

3083943 PISTON (0.25MM/ .010'' O/S) (OPT)

PISTON (0.25MM/ .010'' O/S) (OPT)

26 110 ₽
2

3083944 PISTON (0.50MM/ .020'' O/S) (OPT)

PISTON (0.50MM/ .020'' O/S) (OPT)

26 110 ₽
2

3083972 PISTON (1.00MM/ .040'' O/S) (OPT)

PISTON (1.00MM/ .040'' O/S) (OPT)

0 ₽
3

3083838 PIN, PISTON

PIN, PISTON

6 240 ₽
4

3083839 CLIP, PISTON PIN

CLIP, PISTON PIN

880 ₽
5

3082796 CRANK PIN (PTO)

CRANK PIN (PTO)

5 410 ₽
6

3083804 SPACER

SPACER

3 640 ₽
7

3082790 ROD, CONNECTING

ROD, CONNECTING

33 280 ₽
8

3083626 BEARING, SMALL END

BEARING, SMALL END

6 240 ₽
9

3084580 BEARING, BALL

BEARING, BALL

7 700 ₽
10

3083745 GEAR, CRANKSHAFT (O/I)

GEAR, CRANKSHAFT (O/I)

18 370 ₽
11

3080130 KEY WOODRUFF

KEY WOODRUFF

1 870 ₽
12

3086767 WASHER

WASHER

1 870 ₽
13

3083905 LOCKNUT

LOCKNUT

1 460 ₽
14

3083899 CRANKSHAFT #1

CRANKSHAFT #1

66 560 ₽
14

3085893 CRANKSHAFT ASSY. (INCL. 5-7, 9, 10, 14-16)

CRANKSHAFT ASSY. (INCL. 5-7, 9, 10, 14-16)

130 ₽
15

3083803 BEARING, LARGE END

BEARING, LARGE END

6 030 ₽
16

3085891 CRANKSHAFT 2

CRANKSHAFT 2

54 080 ₽
17

3085892 SPACER 3 (0.1MM) (OPT)

SPACER 3 (0.1MM) (OPT)

480 ₽
17

3086765 SPACER 1 (0.2MM) (OPT)

SPACER 1 (0.2MM) (OPT)

1 310 ₽
