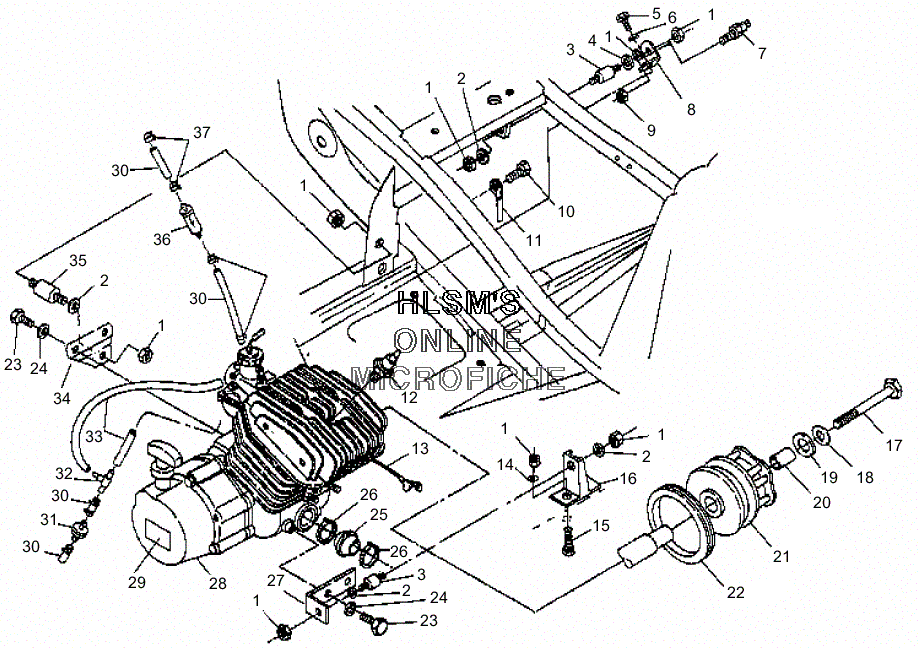

MOUNTING - ENGINE для Polaris XPLORER (A00AG25CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7547108 NUT
    NUT
  • 2
    7555823 WASHER
    WASHER
  • 3
    3110026 MOUNT, MOTOR
    MOUNT, MOTOR
  • 4
    5430802 INSULATOR, MOTOR MOUNT
    INSULATOR, MOTOR MOUNT
  • 5
    7512315 BOLT
    BOLT
  • 6
    7552901 LOCK, WASHER
    LOCK, WASHER
  • 7
    4010284 SWITCH, TEMPERATURE 260 DEGREE
    SWITCH, TEMPERATURE 260 DEGREE
  • 8
    5244119-067 BRACKET, ENGINE MOUNT (TOP BLACK)
    BRACKET, ENGINE MOUNT (TOP BLACK)
  • 9
    7542103 NUT, LOCK
    NUT, LOCK
  • 10
    7512232 BOLT
    BOLT
  • 11
    4010132 CABLE, GROUND ENGINE
    CABLE, GROUND ENGINE
  • 12
    3070156 SPARKPLUG
    SPARKPLUG
  • 13
    4010129 CABLE, SOLENOID/START DOUBLE BOOT
    CABLE, SOLENOID/START DOUBLE BOOT
  • 14
    5333457 SPACER
    SPACER
  • 15
    7512457 BOLT
    BOLT
  • 16
    1040687-067 MOUNT, ENGINE (FRONT/BLACK)
    MOUNT, ENGINE (FRONT/BLACK)
  • 17
    7512566 BOLT
    BOLT
  • 18
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 19
    5210748 WASHER
    WASHER
  • 20
    5430261 BUSHING, RETAINING BOLT
    BUSHING, RETAINING BOLT
  • 23
    7512490 SCREW
    SCREW
  • 24
    7552603 WASHER
    WASHER
  • 25
    5410421 BOOT, CLUTCH INTAKE
    BOOT, CLUTCH INTAKE
  • 26
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 27
    5242896-067 BRACKET, ENGINE MOUNT (FRONT/BLACK)
    BRACKET, ENGINE MOUNT (FRONT/BLACK)
  • 28
    3084717 SHORT BLOCK ASSY. (EC25PFE12)
    SHORT BLOCK ASSY. (EC25PFE12)
  • 29
    7078577 DECAL, DRAIN RECOIL
    DECAL, DRAIN RECOIL
  • 30
    8450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)
    FUEL LINE (1/4 ID 600 CM.) (OPT)
  • 31
    7051011 VENT, CHECKVALVE
    VENT, CHECKVALVE
  • 32
    7052005 FITTING, TEE
    FITTING, TEE
  • 33
    8360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)
    FUEL LINE (1/8 ID 600 CM.) (OPT)
  • 34
    5242897-067 BRACKET, ENGINE MOUNT (REAR/BLACK)
    BRACKET, ENGINE MOUNT (REAR/BLACK)
  • 35
    3110028 MOUNT, MOTOR
    MOUNT, MOTOR
  • 36
    2530009 FILTER, IN-LINE
    FILTER, IN-LINE
  • 37
    7080003 CLAMP, HOSE
    CLAMP, HOSE
