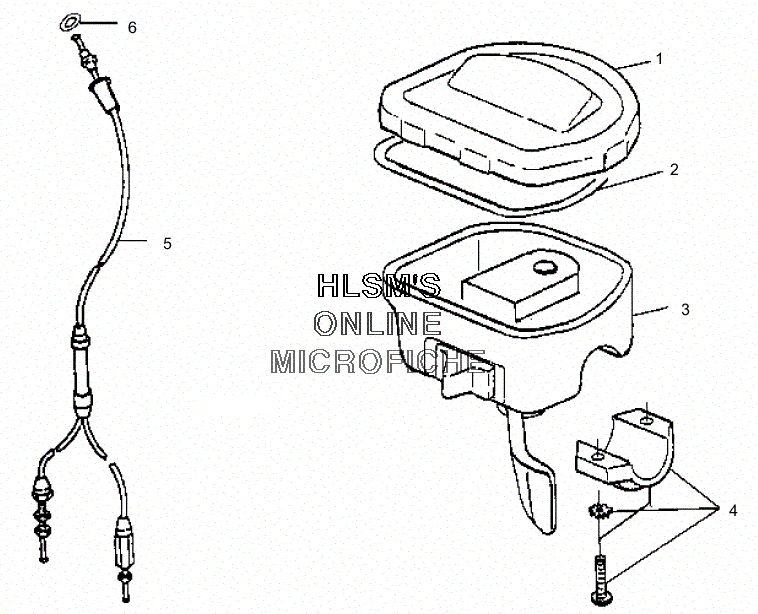

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris XPLORER (A00AG25CA) - 2000 года выпуска`
-
№АртикулНазвание
-
15433806 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
25411439 O-RINGO-RING
-
32010188 THROTTLE CONTROL ASSY., AWD (INCL. 1-4, 6)THROTTLE CONTROL ASSY., AWD (INCL. 1-4, 6)
-
42010191 THROTTLE CLAMP ASSY.THROTTLE CLAMP ASSY.
-
57080803 CABLE, THROTTLE SNAP-INCABLE, THROTTLE SNAP-IN
-
65410193 O-RINGO-RING
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE W/ CYLINDER
- CRANKSHAFT W/ PISTON
- CV JOINT - NEAPCO
- DECALS
- DRIVESHAFT - INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FRONT - GEARCASE
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR
- • HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HEADLIGHT
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK
- RACK AND BUMPER MOUNTING - FRONT
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
