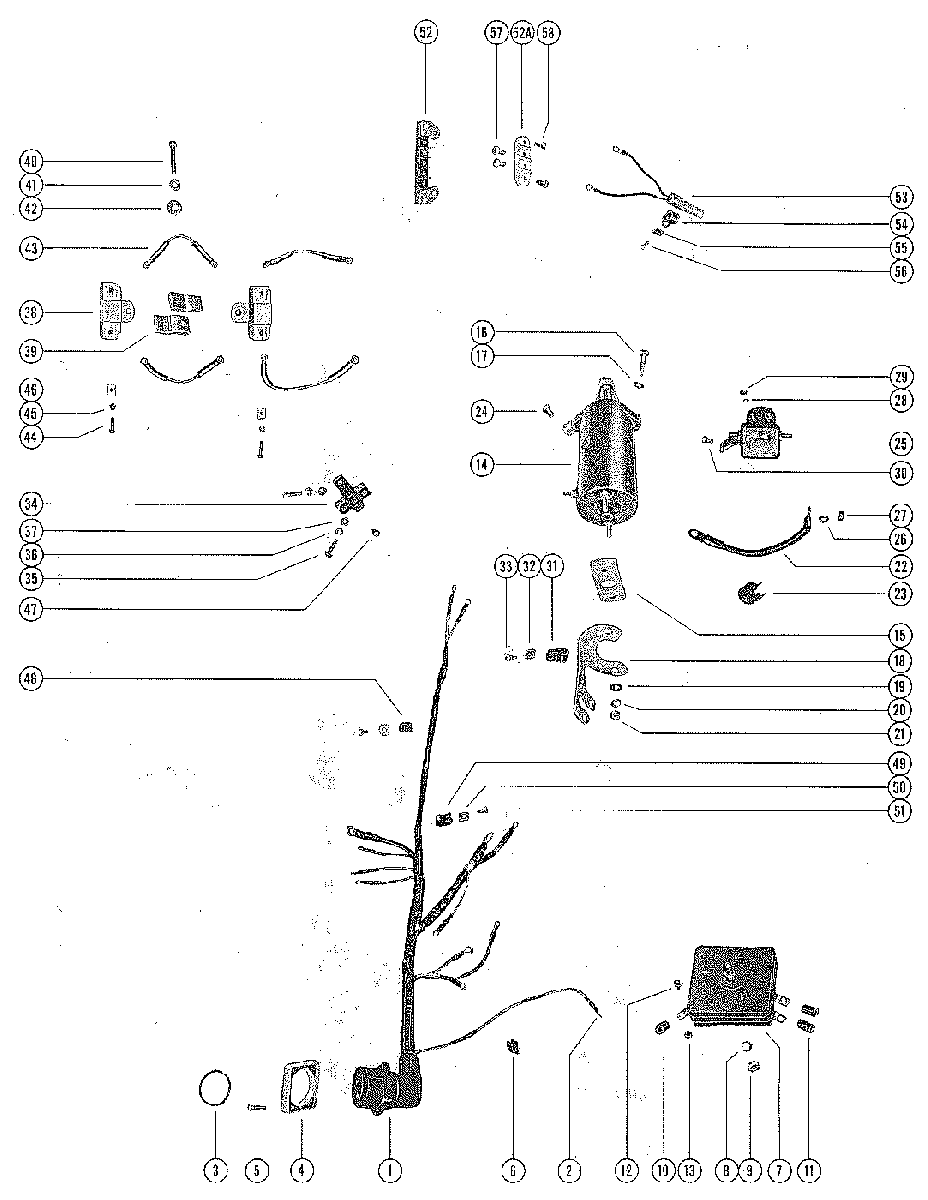

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 700 (6 CYL.) 1413611 THRU 1566239

  • №
    Артикул
    Название
  • 1
    30820 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 1
    32457 WIRING HARNESS, INTERNAL (NOT AS SHOWN)
    ON MERC 700E-2 ENGINES STARTING WITH SERIAL #153384 AND MERC 700EL-2 ENGINES STARTING WITH SERIAL #1532317, ORDER A-32855 INTERNAL WIRING HARNESS FOR REPLACEMENT.
    WIRING HARNESS, INTERNAL (NOT AS SHOWN)
    ON MERC 700E-2 ENGINES STARTING WITH SERIAL #153384 AND MERC 700EL-2 ENGINES STARTING WITH SERIAL #1532317, ORDER A-32855 INTERNAL WIRING HARNESS FOR REPLACEMENT.
  • 2
    30050 TERMINAL, HARNESS AND MERCURY SWITCH LEADS
    TERMINAL, HARNESS AND MERCURY SWITCH LEADS
  • 3
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 4
    26079A2 PLATE, WIRING HARNESS TO BOTTOM COWL
    PLATE, WIRING HARNESS TO BOTTOM COWL
  • 5
    10-45893 SCREW, HARNESS PLATE FASTENING
    SCREW, HARNESS PLATE FASTENING
  • 6
    54-22783 "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
    "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
  • 7
    32177A2 RECTIFIER ASSEMLY
    N.L.A. ORDER A-32177A2 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMLY
    N.L.A. ORDER A-32177A2 RECTIFIER ASSEMBLY
  • 8
    13-26993 LOCKWASHER, RECTIFIER MOUNTING SCREW
    LOCKWASHER, RECTIFIER MOUNTING SCREW
  • 9
    11-21929 NUT, RECTIFIER MOUNTING SCREW
    NUT, RECTIFIER MOUNTING SCREW
  • 10
    32-28052 SLEEVE, RUBBER - RECTIFIER HARNESS LEAD
    SLEEVE, RUBBER - RECTIFIER HARNESS LEAD
  • 10
    32-28052 SLEEVE, RUBBER - RECTIFIER HARNESS LEAD
    SLEEVE, RUBBER - RECTIFIER HARNESS LEAD
  • 11
    32-28373 SLEEVE, RUBBER - RECTIFIER STATOR LEAD
    SLEEVE, RUBBER - RECTIFIER STATOR LEAD
  • 11
    32-28373 SLEEVE, RUBBER - RECTIFIER STATOR LEAD
    SLEEVE, RUBBER - RECTIFIER STATOR LEAD
  • 12
    10-35400 SCREW, HARNESS AND STATOR LEADS TO RECTIFIER
    SCREW, HARNESS AND STATOR LEADS TO RECTIFIER
  • 13
    11-826709106 NUT, HARNESS AND STATOR LEADS FASTENING SCREW
    NUT, HARNESS AND STATOR LEADS FASTENING SCREW
  • 14
    50-30955 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 15
    31057 PLATE, SPACER - STARTER MOTOR
    PLATE, SPACER - STARTER MOTOR
  • 16
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE
  • 17
    13-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREW
    LOCKWASHER, STARTER MOTOR FASTENING SCREW
  • 18
    27026 BRACKET, SUPPORT - STARTER MOTOR
    BRACKET, SUPPORT - STARTER MOTOR
  • 19
    12-24664 WASHER, THRU BOLT - BRACKET TO STARTER MOTOR
    WASHER, THRU BOLT - BRACKET TO STARTER MOTOR
  • 20
    13-26992 LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR
    LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR
  • 21
    11-20890 NUT, THRU BOLT - BRACKET TO STARTER MOTOR
    NUT, THRU BOLT - BRACKET TO STARTER MOTOR
  • 22
    84-93389A12 CABLE, WIRE - STARTER TO STARTER SOLENOID
    CABLE, WIRE - STARTER TO STARTER SOLENOID
  • 23
    54-20534 CLAMP, LOWER CABLE - STARTER TO SOLENOID
    CLAMP, LOWER CABLE - STARTER TO SOLENOID
  • 24
    10-69035 SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
    SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
  • 25
    32268 SOLENOID, STARTER
    SOLENOID, STARTER
  • 25
    32268 SOLENOID, STARTER
    SOLENOID, STARTER
  • 25
    32445A1 SOLENOID, STARTER
    ON MERC 700E-2 ENGINES STARTING WITH SERIAL #1533584 AND MERC 700EL-2 ENGINES STARTING WITH SERIAL #1507634, AN A-28016A1 GROUND STRAP ASSEMBLY WAS USED.
    SOLENOID, STARTER
    ON MERC 700E-2 ENGINES STARTING WITH SERIAL #1533584 AND MERC 700EL-2 ENGINES STARTING WITH SERIAL #1507634, AN A-28016A1 GROUND STRAP ASSEMBLY WAS USED.
  • 26
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16)
    LOCKWASHER, SOLENOID TERMINAL (5/16)
  • 27
    11-22053 NUT, SOLENOID TERMINAL (5/16)
    NUT, SOLENOID TERMINAL (5/16)
  • 28
    13-26996 LOCKWASHER, SOLINOID TERMINAL (#10)
    LOCKWASHER, SOLINOID TERMINAL (#10)
  • 29
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 30
    10-29238 SCREW, SOLENOID TO STARTER MOTOR
    SCREW, SOLENOID TO STARTER MOTOR
  • 30
    10-29238 SCREW, SOLENOID TO STARTER MOTOR
    SCREW, SOLENOID TO STARTER MOTOR
  • 31
    54-23567 CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET
    CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET
  • 31
    54-22627 CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET
    CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET
  • 32
    8M0084613 "D" WASHER, HARNESS CLAMP
    "D" WASHER, HARNESS CLAMP
  • 33
    10-62568 SCREW, HARNESS CLAMP FASTENING
    SCREW, HARNESS CLAMP FASTENING
  • 34
    29714 BLOCK, TERMINAL - UPPER FUEL PUMP PAD
    BLOCK, TERMINAL - UPPER FUEL PUMP PAD
  • 35
    10-24241 SCREW, TERMINAL BLOCK FASTENING
    SCREW, TERMINAL BLOCK FASTENING
  • 36
    13-26996 LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
    LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
  • 37
    12-26014 WASHER, TERMINAL BLOCK FASTENING SCREW
    WASHER, TERMINAL BLOCK FASTENING SCREW
  • 38
    393-1572 RESISTOR
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    RESISTOR
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • 39
    30449 SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • 40
    10-24770 SCREW, RESISTOR, SNUBBER AND COVER MOUNTING (1-3/8")
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    SCREW, RESISTOR, SNUBBER AND COVER MOUNTING (1-3/8")
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • 41
    13-26992 LOCKWASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    LOCKWASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • 42
    12-69057 WASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    WASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • 43
    29112 JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERM. BLOCK
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERM. BLOCK
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • 44
    10-46718 SCREW, JUMPER LEADS TO RESISTOR
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    SCREW, JUMPER LEADS TO RESISTOR
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • 45
    13-26995 LOCKWASHER, JUMPER LEADS FASTENING SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    LOCKWASHER, JUMPER LEADS FASTENING SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • 46
    12-30191 WASHER, JUMPER LEADS FASTENING SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
    WASHER, JUMPER LEADS FASTENING SCREW
    THIS GROUP OF PARTS REQUIRED WITH RESISTORS
  • --
    82-72878A1 BALLAST, IGNITION COIL (NOT SHOWN)
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
    BALLAST, IGNITION COIL (NOT SHOWN)
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
  • 40
    10-28666 SCREW, BALLAST AND COVER MOUNTING (1")
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
    SCREW, BALLAST AND COVER MOUNTING (1")
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
  • 41
    13-26992 LOCKWASHER, BALLAST AND COVER MOUNTING SCREW
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
    LOCKWASHER, BALLAST AND COVER MOUNTING SCREW
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
  • 42
    12-69057 WASHER, BALLAST AND COVER MOUNTING SCREW
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
    WASHER, BALLAST AND COVER MOUNTING SCREW
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
  • 43
    29112 JUMPER, BALLAST TO BALLAST AND BALLAST TO BLOCK
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
    JUMPER, BALLAST TO BALLAST AND BALLAST TO BLOCK
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
  • 45
    13-26995 LOCKWASHER, BALLAST JUMPER LEAD TERMINALS
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
    LOCKWASHER, BALLAST JUMPER LEAD TERMINALS
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
  • --
    11-21923T NUT, BALLAST JUMPER LEADS FASTENING
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
    NUT, BALLAST JUMPER LEADS FASTENING
    THIS GROUP OF PARTS REQUIRED WITH BALLASTS
  • 47
    10-35400 SCREW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
    SCREW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
  • 48
    54-24836 CLIP, WIRING HARNESS TO CRANKCASE FLANGE
    CLIP, WIRING HARNESS TO CRANKCASE FLANGE
  • 49
    54-24836 CLIP, WIRING HARNESS TO CYLINDER BLOCK COVER
    CLIP, WIRING HARNESS TO CYLINDER BLOCK COVER
  • 50
    8M0084613 "D" WASHER, HARNESS CLIP
    "D" WASHER, HARNESS CLIP
  • 51
    10-8M0113176 SCREW, HARNESS CLIP FASTENING
    SCREW, HARNESS CLIP FASTENING
  • 52
    29765A1 TERMINAL BLOCK ASSEMBLY, EXHAUST COVER
    TERMINAL BLOCK ASSEMBLY, EXHAUST COVER
  • 52A
    30212 TERMINAL BLOCK, EXHAUST COVER
    TERMINAL BLOCK, EXHAUST COVER
  • --
    37-30649 LABEL, TERMINAL BLOCK COLOR LEADS
    LABEL, TERMINAL BLOCK COLOR LEADS
  • 53
    58124A4 SWITCH, MERCURY
    SWITCH, MERCURY
  • 53
    58124A1 SWITCH, MERCERY
    SWITCH, MERCERY
  • 54
    54-22875 CLAMP, MERCURY SWITCH
    CLAMP, MERCURY SWITCH
  • 55
    8M0084613 "D" WAHSER, CLAMP FASTENING SCREW
    "D" WAHSER, CLAMP FASTENING SCREW
  • 56
    10-20401 SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER
    SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER
  • 57
    10-35400 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 57
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 58
    10-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
    SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
