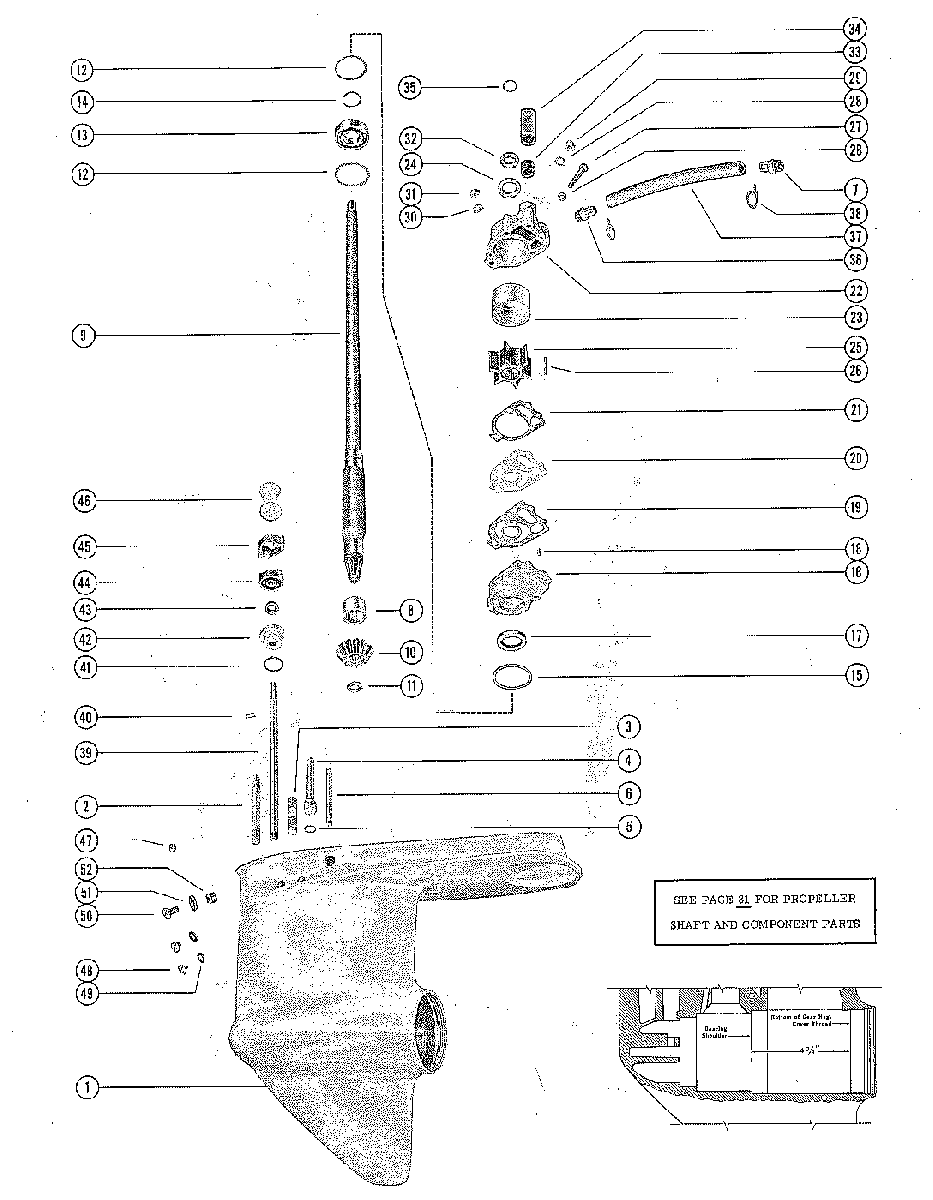

GEAR HOUS ASSY,COMP.(DRIVE SHAFT/COMP PARTS MERC 700E)P. 1 для Mercury - 700 (6 CYL.) 1413611 THRU 1566239

  • №
    Артикул
    Название
  • -
    1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) - SEE NOTE
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) - SEE NOTE
  • -
    1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) - SEE NOTE
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) - SEE NOTE
  • 1
    1623-2041A2 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-57921 STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (3-15/16")
    STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (3-15/16")
  • 3
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
  • 4
    16-30901 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/4")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/4")
  • 5
    25-62704 "O" RING, GEAR HOUSING STUD (A-16-30901)
    "O" RING, GEAR HOUSING STUD (A-16-30901)
  • 6
    16-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/8")
  • 7
    22-30570 FITTING, GEAR HOUSING TO WATER INTAKE HOSE
    FITTING, GEAR HOUSING TO WATER INTAKE HOSE
  • 8
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 9
    45-38459 DRIVE SHAFT (SHORT SHAFT)
    DRIVE SHAFT (SHORT SHAFT)
  • 9
    45-38460 DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 10
    43-30566 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 11
    11-30932 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 12
    15-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
    SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
  • 13
    30-63326T BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 14
    53-30726 RING, RETAINING - BALL BEARING
    RING, RETAINING - BALL BEARING
  • 15
    25-30224 "O"RING, WATER PUMP BASE
    "O"RING, WATER PUMP BASE
  • 16
    46-31277A2 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 17
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-29596T DOWEL PIN, WATER PUMP BASE TO BODY
    DOWEL PIN, WATER PUMP BASE TO BODY
  • 19
    27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 20
    324351 PLATE, FACE - WATER PUMP BASE TO BODY
    PLATE, FACE - WATER PUMP BASE TO BODY
  • 21
    27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 22
    46-31277A2 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 23
    30915 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 24
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 25
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 26
    17-8M0034466 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 27
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4")
    SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4")
  • 28
    13-26992 LOCKWASHER, WATER PUMP BODY FASTENING SCREW&STUDS (1/4")
    LOCKWASHER, WATER PUMP BODY FASTENING SCREW&STUDS (1/4")
  • 29
    11-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4")
    NUT, WATER PUMP BODY FASTENING STUDS (1/4")
  • 30
    13-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")
    LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")
  • 31
    11-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16")
    NUT, WATER PUMP BODY FASTENING STUD (5/16")
  • 32
    25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 33
    26-38970 SEAL, RUBBER - WATER PUMP BODY
    SEAL, RUBBER - WATER PUMP BODY
  • 34
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 35
    25-30613 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
  • 36
    22-30570 FITTING, WATER UPMP BODY TO WATER INTAKE HOSE
    FITTING, WATER UPMP BODY TO WATER INTAKE HOSE
  • 37
    32-30556 HOSE, WATER INTAKE - GEAR HOUSING
    HOSE, WATER INTAKE - GEAR HOUSING
  • 38
    54-30558 CLAMP, WATER INTAKE HOSE TO FITTINGS
    CLAMP, WATER INTAKE HOSE TO FITTINGS
  • 39
    25136 SHAFT, SHFIT - LOWER
    SHAFT, SHFIT - LOWER
  • 40
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 41
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 42
    23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 44
    52918 CAM, LOWER - REVERSE LOCKING
    CAM, LOWER - REVERSE LOCKING
  • 45
    52919 CAM, UPPER - REVERSE LOCKING
    CAM, UPPER - REVERSE LOCKING
  • 46
    23-30607 SPACER, NYLON - REVERSE LOCKING CAM
    SPACER, NYLON - REVERSE LOCKING CAM
  • 47
    22-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
    PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
  • 48
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 49
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 50
    10-29608 SCREW, GEAR HOUSING FLUSHING HOLE
    SCREW, GEAR HOUSING FLUSHING HOLE
  • 51
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW
  • 52
    26-29612 SEAL, GEAR HOUSING FLUSHING HOLE
    SEAL, GEAR HOUSING FLUSHING HOLE
