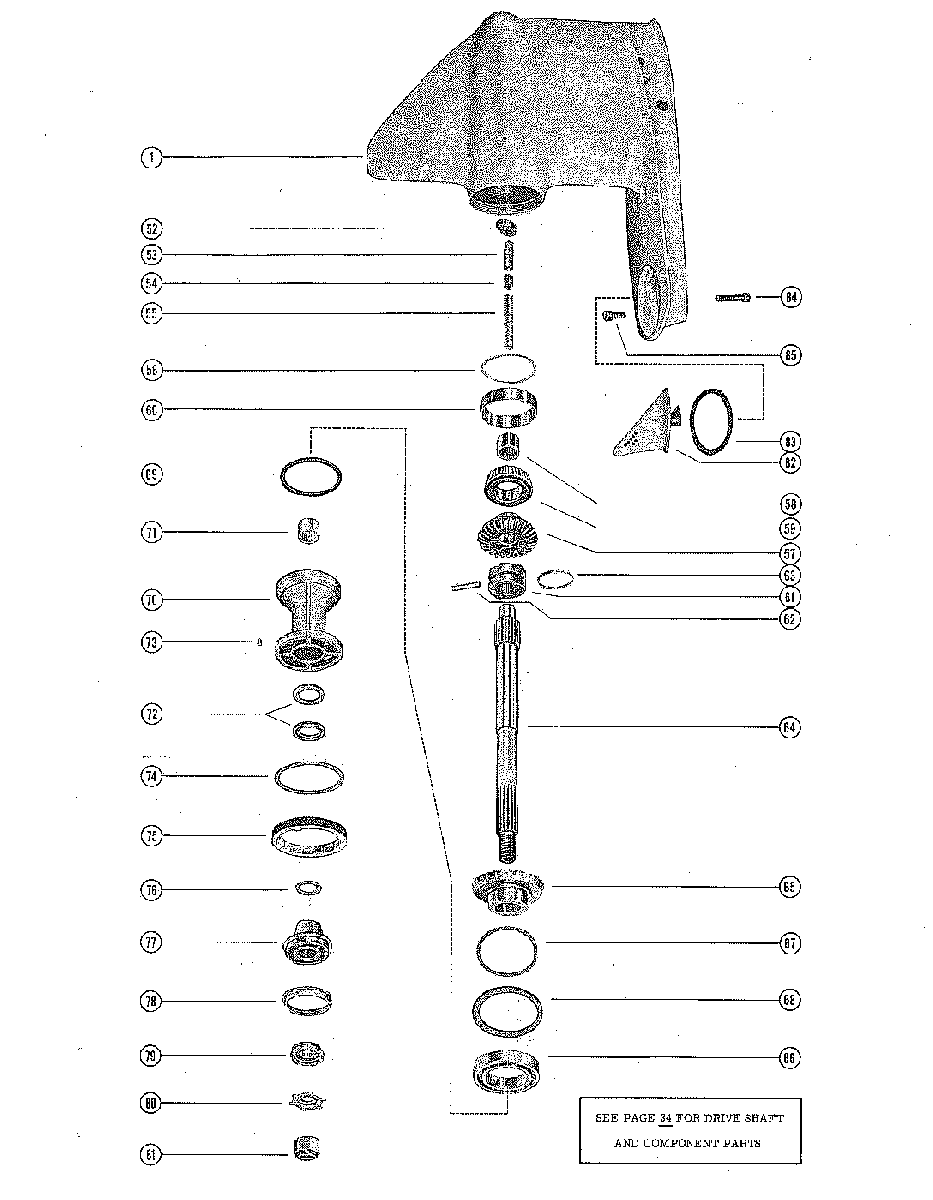

GEAR HOUS ASSY,COMP.(PROP. SHAFT/COMP PARTS MERC 700E-1)P. 2 для Mercury - 700 (6 CYL.) 1413611 THRU 1566239

  • №
    Артикул
    Название
  • -
    1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE
  • -
    1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE
  • 1
    1623-2041A2 GEAR HOUSING ASSEMBLY (SEE PAGE 34 FOR PARTS BREAKDOWN)
    GEAR HOUSING ASSEMBLY (SEE PAGE 34 FOR PARTS BREAKDOWN)
  • 52
    760394 CAM, SHIFT
    CAM, SHIFT
  • 53
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 54
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 55
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 56
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING
    SHIM, BEARING OUTER RACE TO GEAR HOUSING
  • --
    43-30938A2 FORWARD GEAR ASSEMBLY, COMPLETE
    FORWARD GEAR ASSEMBLY, COMPLETE
  • 57
    43-30938A2 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 58
    31-30895T BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 59
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 60
    31-31092 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 61
    52-30941 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 62
    17-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 63
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 64
    44-47900A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • --
    43-30937 REVERSE GEAR ASSEMBLY, COMPLETE
    REVERSE GEAR ASSEMBLY, COMPLETE
  • 65
    43-30937 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 66
    30-30548 BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 67
    15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING
    SHIM, THRUST WASHER TO GEAR HOUSING
  • 68
    12-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
  • 69
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 70
    30579A1 BEARING CARRIER ASSEMBLY (4 45/64" OVERALL LENGTH)
    BEARING CARRIER ASSEMBLY (4 45/64" OVERALL LENGTH)
  • 71
    31-30956T BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 72
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 73
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 74
    12-29957 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 75
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 76
    12-31013 WASHER, THRUST - BEARING CARRIER
    WASHER, THRUST - BEARING CARRIER
  • 77
    30581A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 78
    12-29590 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 79
    12-31211Q03 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 80
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 81
    11-29594 NUT, PROPELLER
    NUT, PROPELLER
  • 82
    31237 WATER PICKUP, GEAR HOUSING
    WATER PICKUP, GEAR HOUSING
  • 83
    27-30557 GASKET, WATER PICKUP TO GEAR HOUSING
    GASKET, WATER PICKUP TO GEAR HOUSING
  • 84
    10-30559 SCREW, WATER PICKUP TO GEAR HOUSING (2-1/4")
    SCREW, WATER PICKUP TO GEAR HOUSING (2-1/4")
  • 85
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
