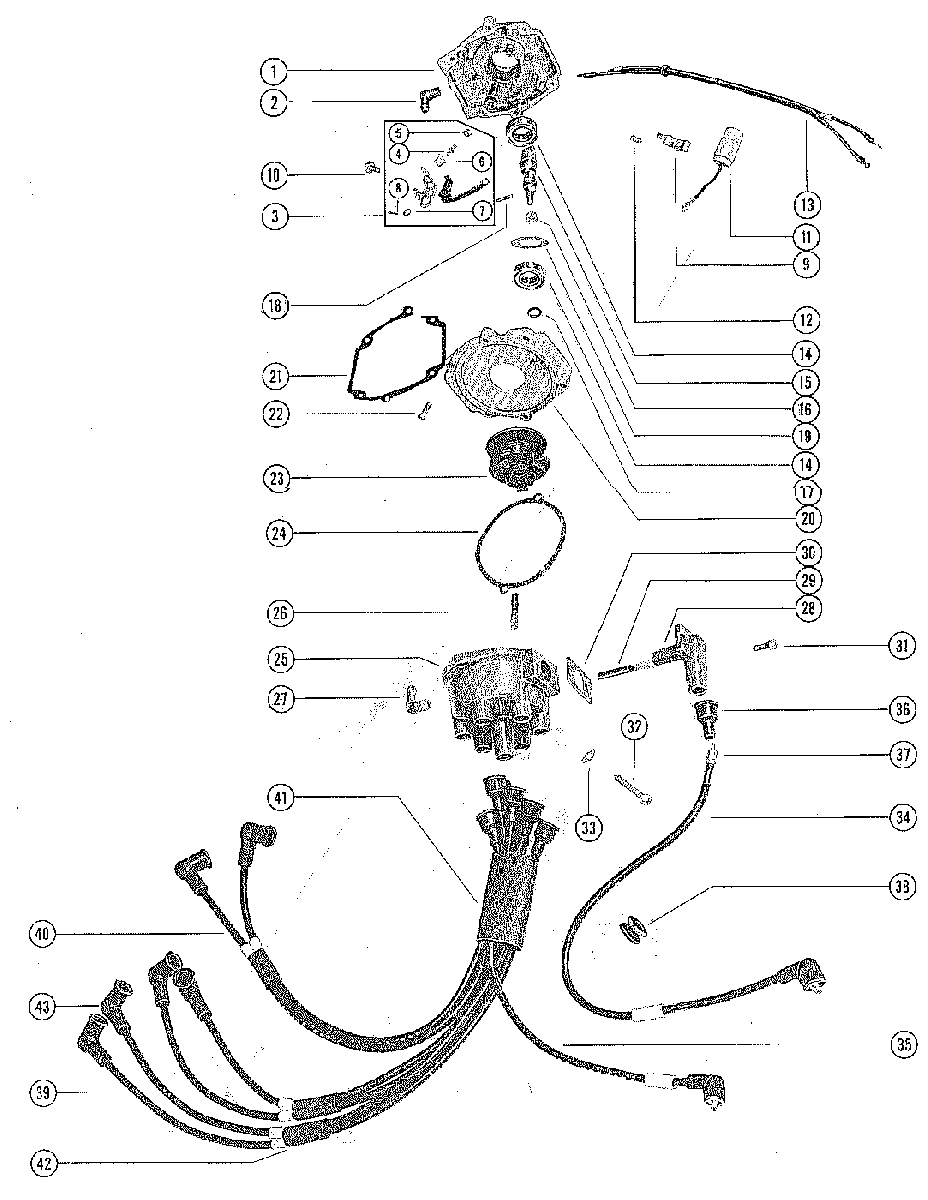

DISTRIBUTOR ASSEMBLY, COMPLETE для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
-393-1282A16 DISTRIBUTOR ASSEMBLY, COMPLETEDISTRIBUTOR ASSEMBLY, COMPLETE
-
1393-1282 HOUSING, PRIMARYHOUSING, PRIMARY
-
222-25885A1 ELBOW ASSEMBLY, VENT HOSE - PRIMARY HOUSINGELBOW ASSEMBLY, VENT HOSE - PRIMARY HOUSING
-
3393-1504A11 BREAKER ASSEMBLY, COMPLETEBREAKER ASSEMBLY, COMPLETE
-
416-29230 STUD, PRIMARY LEAD AND TENSION SPRINGSTUD, PRIMARY LEAD AND TENSION SPRING
-
511-29236 NUT, PRIMARY LEAD FASTENINGNUT, PRIMARY LEAD FASTENING
-
6393-1586 GROMMET, PLASTIC - BREAKER ASSEMBLYGROMMET, PLASTIC - BREAKER ASSEMBLY
-
712-26439 WASHER, BREAKER PIVOT PINWASHER, BREAKER PIVOT PIN
-
818-26953 COTTER PIN, BREAKER TO PIVOT PINCOTTER PIN, BREAKER TO PIVOT PIN
-
9393-1287A2 CAM WICK AND HOLDER ASSEMBLYCAM WICK AND HOLDER ASSEMBLY
-
1010-20597 SCREW, BREAKER HOLDER TO HOUSINGSCREW, BREAKER HOLDER TO HOUSING
-
11393-1283A1 CONDENSERCONDENSER
-
1210-29434 SCREW, CONDENSER TO HOUSINGSCREW, CONDENSER TO HOUSING
-
13393-1656 WIRE, PRIMARY GROUNDWIRE, PRIMARY GROUND
-
1430-26379 BEARING, BALL - CAM SHAFTBEARING, BALL - CAM SHAFT
-
15393-1779A2 SHAFT ASSEMBLY - DISTRIBUTOR CAMSHAFT ASSEMBLY - DISTRIBUTOR CAM
-
1623-28933 BUSHING, DISTRIBUTOR CAM SHAFTBUSHING, DISTRIBUTOR CAM SHAFT
-
1725-26543 "O"RING, CAM SHAFT"O"RING, CAM SHAFT
-
1817-25319 PIN, ROLL - CAM SHAFTPIN, ROLL - CAM SHAFT
-
1913-26917 WASHER, WAVE - BALL BEARING TENSIONWASHER, WAVE - BALL BEARING TENSION
-
20393-1278 ADAPTOR, HOUSING TO DISTRIBUTOR CAPADAPTOR, HOUSING TO DISTRIBUTOR CAP
-
2127-26412 GASKET, HOUSING TO ADAPTORGASKET, HOUSING TO ADAPTOR
-
2210-32651 SCREW, ADAPTOR TO HOUSINGSCREW, ADAPTOR TO HOUSING
-
23393-1280A1 ROTOR, DISTRIBUTORROTOR, DISTRIBUTOR
-
2427-36268 GASKET, DISTRIBUTOR CAP TO ADAPTORGASKET, DISTRIBUTOR CAP TO ADAPTOR
-
25393-1927A9 DISTRIBUTOR CAP ASSEMBLYDISTRIBUTOR CAP ASSEMBLY
-
26393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2722-996642 ELBOW, VENT HOSE - DISTRIBUTOR CAPELBOW, VENT HOSE - DISTRIBUTOR CAP
-
28F1277 SIDE INLET ASSEMBLYSIDE INLET ASSEMBLY
-
29393-1292A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
3027-26447 GASKET, SIDE INLET TO DISTRIBUTOR CAPGASKET, SIDE INLET TO DISTRIBUTOR CAP
-
3110-29167 SCREW, SIDE INLET TO DISTRIBUTOR CAPSCREW, SIDE INLET TO DISTRIBUTOR CAP
-
3210-29158 SCREW, DISTRIBUTOR CAP TO ADAPTORSCREW, DISTRIBUTOR CAP TO ADAPTOR
-
3314-38359 TAB WASHER, DISTRIBUTOR CAP FASTENING SCREWTAB WASHER, DISTRIBUTOR CAP FASTENING SCREW
-
3484-821945A37 HIGH TENSION CABLE ASSEMBLY (COIL #2)HIGH TENSION CABLE ASSEMBLY (COIL #2)
-
3584-821945A27 HIGH TENSION CABLE ASSEMBLY (#1)HIGH TENSION CABLE ASSEMBLY (#1)
-
3685-94589 SLEEVE, TERMINAL END COVERSLEEVE, TERMINAL END COVER
-
378M0084600 CONNECTOR, HIGH TENSION CABLE (AP END)CONNECTOR, HIGH TENSION CABLE (AP END)
-
3825-26547 GROMMET, HIGH TENSION CABLEGROMMET, HIGH TENSION CABLE
-
3984-813715A1 SPARK PLUG LEAD ASSEMBLY (#1, 2 AND 6)SPARK PLUG LEAD ASSEMBLY (#1, 2 AND 6)
-
4084-813715A1 SPARK PLUG LEAD ASSEMBLY (#3, 4 AND 5)SPARK PLUG LEAD ASSEMBLY (#3, 4 AND 5)
-
378M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
3685-94589 SLEEVE, TERMINAL END COVERSLEEVE, TERMINAL END COVER
-
4132-30574 SLEEVE, SPARK PLUG LEADSLEEVE, SPARK PLUG LEAD
-
4232-46768 SLEEVE, SPARK PLUG LEADSLEEVE, SPARK PLUG LEAD
-
4385-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
