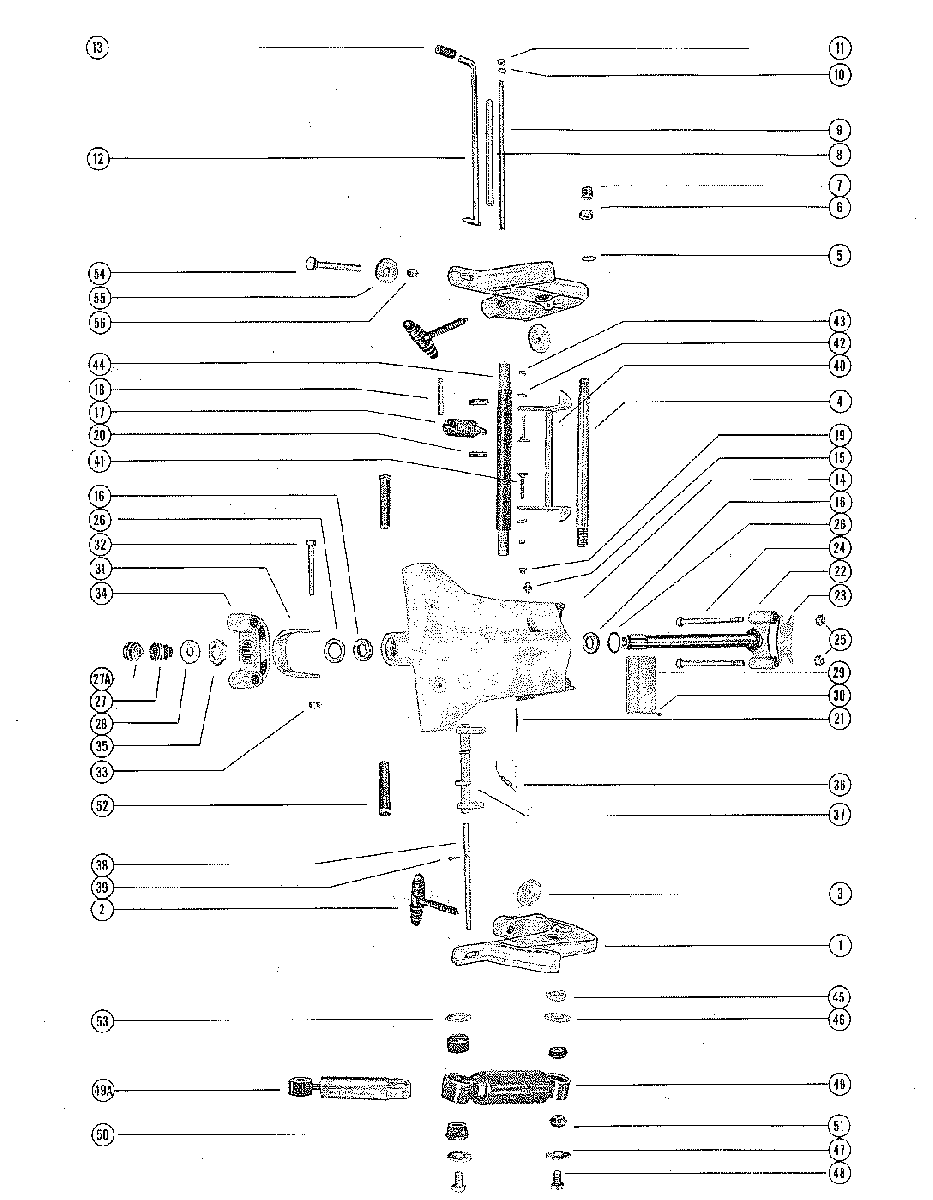

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
11440-3296A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
228403A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-28404 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 SHIM, CLAMP BRACKET TILT TUBE (.010- .020)SHIM, CLAMP BRACKET TILT TUBE (.010- .020)
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-22053 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1332-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPERSLEEVE, RUBBER - TILT LOCK PIN BUMPER
-
141453-1814A1 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
141453-2688A1 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
1522-69059 FITTING, GREASEFITTING, GREASE
-
1626-31783 OIL SEALOIL SEAL
-
1724-94891 SPRING, COIL - SWIVEL BRACKETSPRING, COIL - SWIVEL BRACKET
-
1817-28658 PIN, COIL SPRING MOUNTINGPIN, COIL SPRING MOUNTING
-
1919-77633Q LUBRICAP, SWIVEL PIN GREASE FITTINGLUBRICAP, SWIVEL PIN GREASE FITTING
-
2023-28688 SPACER, RUBBER - COIL SPRING POSITIONINGSPACER, RUBBER - COIL SPRING POSITIONING
-
2117-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
2217-30784A1 SWIVEL PIN AND TOP YOKE ASSEMBLYSWIVEL PIN AND TOP YOKE ASSEMBLY
-
2217-31772A1 SWIVEL PIN AND TOP YOKE ASSEMBLYSWIVEL PIN AND TOP YOKE ASSEMBLY
-
2328203 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
2410-30453 BOLT, TOP YOKE TO UPPER MOUNTBOLT, TOP YOKE TO UPPER MOUNT
-
2511-34933 NUT, TOP YOKE BOLT FASTENINGNUT, TOP YOKE BOLT FASTENING
-
2612-25176 WASHER, SWIVEL PIN - LOWER TOP- WASHER OPTIONALWASHER, SWIVEL PIN - LOWER TOP- WASHER OPTIONAL
-
2612-31815 WASHER, SWIVEL PIN - LOWER TOP- WASHER OPTIONALWASHER, SWIVEL PIN - LOWER TOP- WASHER OPTIONAL
-
2730614 BOOT, RUBBER - UPPER SHIFT SHAFTBOOT, RUBBER - UPPER SHIFT SHAFT
-
27A31234 BOOT, RUBBER - UPPER SHIFT SHAFTBOOT, RUBBER - UPPER SHIFT SHAFT
-
2812-30611 WASHER, NYLON - UPPER SHIFT SHAFTWASHER, NYLON - UPPER SHIFT SHAFT
-
2938-56267 SERIAL PLATESERIAL PLATE
-
3010-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
3128205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
3210-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSINGSCREW, STRAP STOP TO DRIVE SHAFT HOUSING
-
3311-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
3430451 YOKE, BOTTOMYOKE, BOTTOM
-
3431775 YOKE, BOTTOMYOKE, BOTTOM
-
3511-71956 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
3624-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
3726903A4 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
3856349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
3918-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4030126A1 TILT STOP LEVER ASSEMBLYTILT STOP LEVER ASSEMBLY
-
4110-30128 SCREW, TILT STOP LEVER ANCHORSCREW, TILT STOP LEVER ANCHOR
-
4213-31030 WASHER, WAVE - LEVER ANCHOR SCREWWASHER, WAVE - LEVER ANCHOR SCREW
-
4311-29250 NUT, LEVER ANCHOR SCREWNUT, LEVER ANCHOR SCREW
-
4455-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
4523-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
4612-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
4712-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
4810-28450 SCREW, NYLOCK -UPPER AND LOWER SHOCK MOUNTING PINSCREW, NYLOCK -UPPER AND LOWER SHOCK MOUNTING PIN
-
4955-28209 SHOCK ABSORBERSHOCK ABSORBER
-
49A55-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
5023-28198 BUSHING, RUBBER - SHOCK ABSORBERBUSHING, RUBBER - SHOCK ABSORBER
-
5023-28198 BUSHING, RUBBER - SHOCK ABSORBERBUSHING, RUBBER - SHOCK ABSORBER
-
5123-32171 BUSHING, RUBBER - SHOCK ABSORBERBUSHING, RUBBER - SHOCK ABSORBER
-
5255-696531 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
5312-840400 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
5410-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOMBOLT, CLAMP BRACKET TO BOAT TRANSOM
-
5512-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
5611-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
