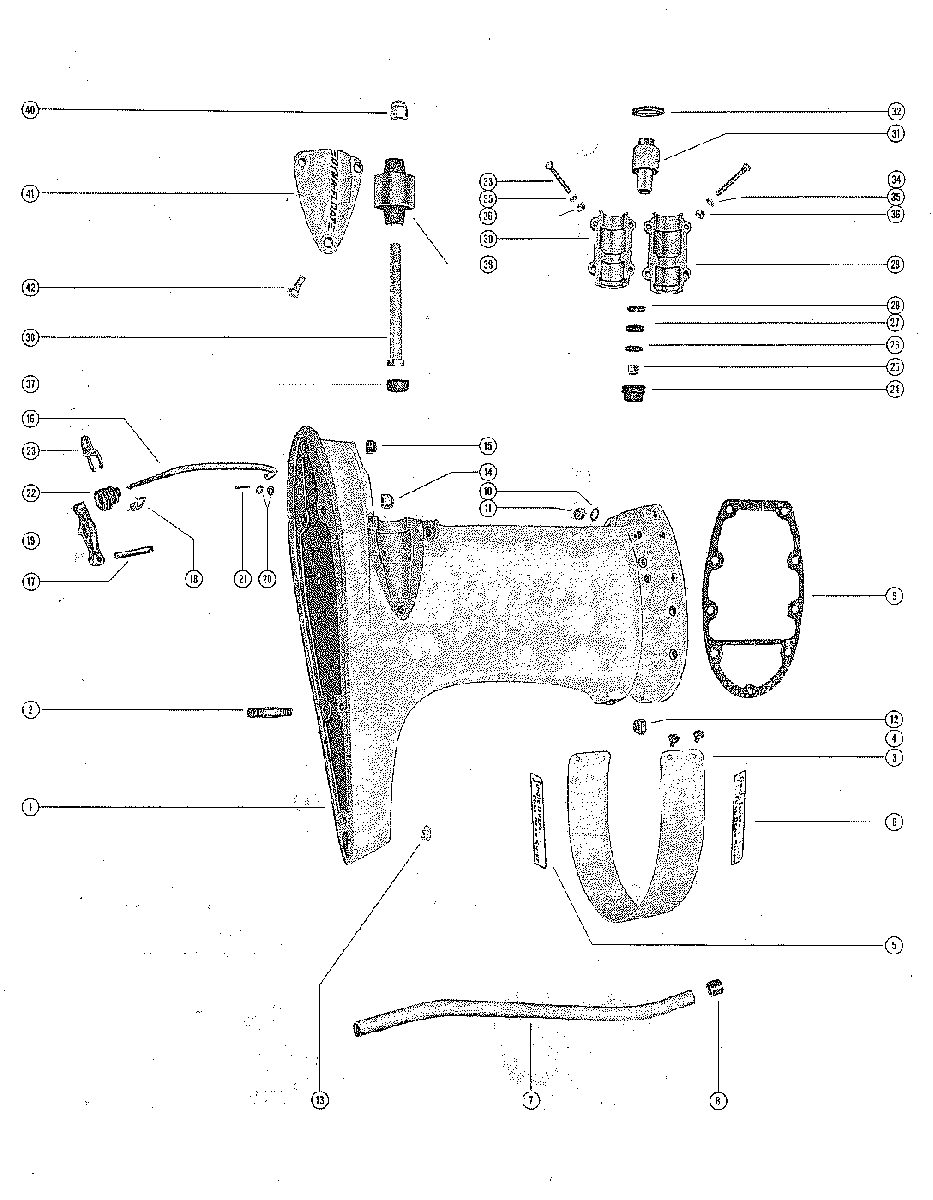

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
11540-2384A2 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HSGSTUD, DRIVE SHAFT HOUSING TO GEAR HSG
-
335638A1 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
410-30742 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
-
537-31022 DECAL, TRIM COVER - STARBOARD (NOT AS SHOWN)DECAL, TRIM COVER - STARBOARD (NOT AS SHOWN)
-
537-31987 DECAL, TRIM COVER - STARBOARDDECAL, TRIM COVER - STARBOARD
-
637-31023 DECAL, TRIM COVER - PORT (NOT AS SHOWN)DECAL, TRIM COVER - PORT (NOT AS SHOWN)
-
637-31023 DECAL, TRIM COVER - PORTDECAL, TRIM COVER - PORT
-
732-30722 TUBE, WATER INLETTUBE, WATER INLET
-
826-26207 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
927-26198 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWLGASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
-
1012-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1111-8M0042636 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1211-23161 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1319-29850 PLUG, PLASTIC - WATER PICK-UP SCREW HOLEPLUG, PLASTIC - WATER PICK-UP SCREW HOLE
-
1411-34933 NUT, GEAR HSG. AND DRIVE SHAFT HSG. STUDSNUT, GEAR HSG. AND DRIVE SHAFT HSG. STUDS
-
1511-29489 NUT, GEAR HSG. AND DRIVE SHAFT HSG. STUDSNUT, GEAR HSG. AND DRIVE SHAFT HSG. STUDS
-
1630721 ROD, PUSH - REVERSE LOCK LEVERROD, PUSH - REVERSE LOCK LEVER
-
1717-30615 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
1824-30618 SPRING, TENSION - PUSH RODSPRING, TENSION - PUSH ROD
-
1952920 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
2012-20546 WASHER, PUSH RODWASHER, PUSH ROD
-
2118-25191 COTTER PIN, PUSH ROD TO REVERSE LCOKCOTTER PIN, PUSH ROD TO REVERSE LCOK
-
2230614 BOOT, RUBBER - PUSH RODBOOT, RUBBER - PUSH ROD
-
2331039 RETAINER, PUSH ROD RUBBER BOLTRETAINER, PUSH ROD RUBBER BOLT
-
2425305 CAP, RUBBER - UPPER MOUNT BOLT NUTCAP, RUBBER - UPPER MOUNT BOLT NUT
-
2511-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2612-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2712-30516 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
2812-30515 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2926218 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
3026217 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
3137396 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
3224929 PACKING, "U" CUPPACKING, "U" CUP
-
3310-20012 SCREW, UPPER MOUNT COVER 1-5/8")SCREW, UPPER MOUNT COVER 1-5/8")
-
3410-28775 SCREW, UPPER MOUNT COVER (2-1/4")SCREW, UPPER MOUNT COVER (2-1/4")
-
3512-29245 WASHER, UPPER MOUNT COVER SCREWSWASHER, UPPER MOUNT COVER SCREWS
-
3611-35888 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3725067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
3810-75284 SCREW, UPPER MOUNT (5-1/2")SCREW, UPPER MOUNT (5-1/2")
-
3937397 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
4011-25096 NUT, MOUNTING SCREWNUT, MOUNTING SCREW
-
4126336 COVER, LOWER MOUNT - PORT SIDECOVER, LOWER MOUNT - PORT SIDE
-
4126337 COVER, LOWER MOUNT - STARBOARD SIDECOVER, LOWER MOUNT - STARBOARD SIDE
-
4210-29256 SCREW, LOWER MOUNT COVER FASTENINGSCREW, LOWER MOUNT COVER FASTENING
