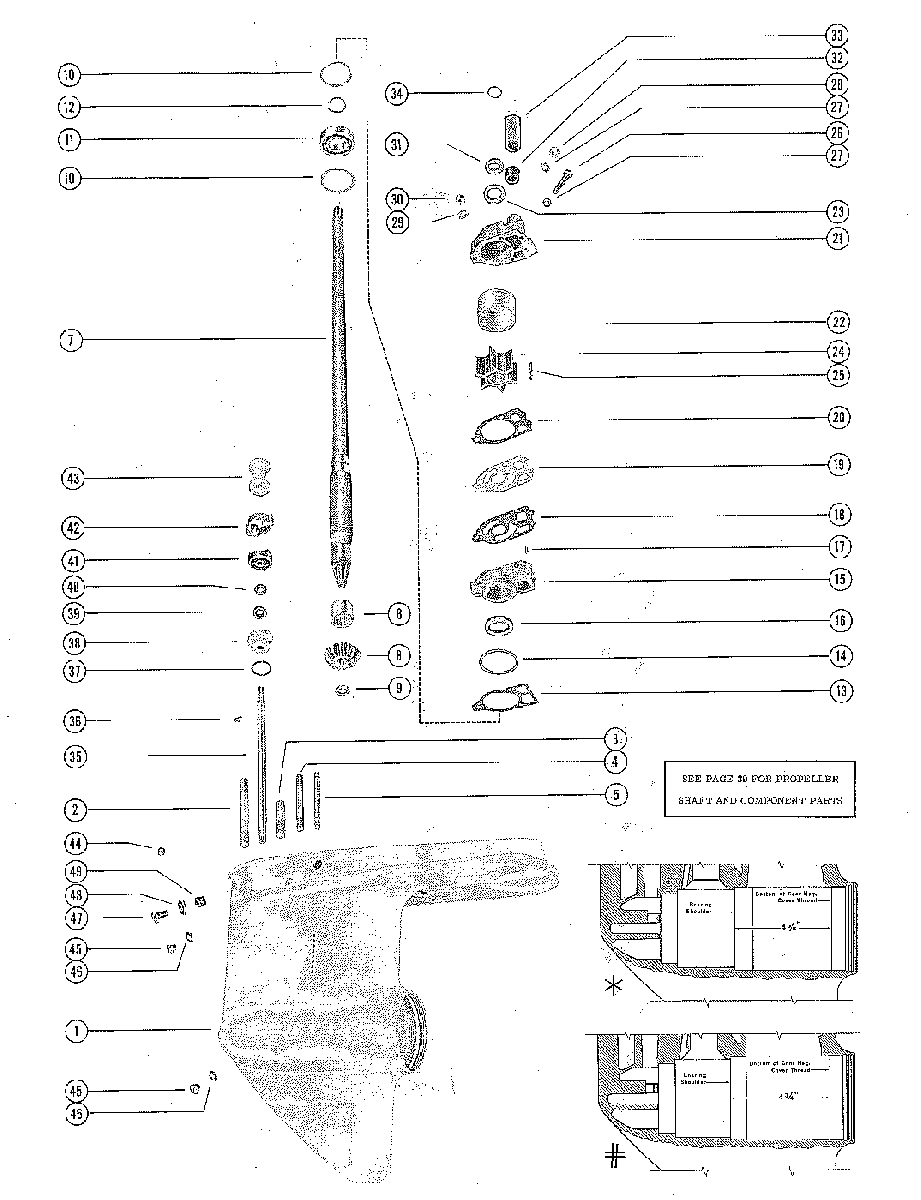

GEAR HOUS ASSY,COMP.(DRIVE SHAFT/COMP PARTS MERC 700E-2)P. 1 для Mercury - 700 (6 CYL.) 1413611 THRU 1566239

№

Артикул

Название
-

1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHOFT SHAFT) SEE NOTE BELOW

GEAR HOUSING ASSEMBLY, COMPLETE (SHOFT SHAFT) SEE NOTE BELOW
-

1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW

GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
-

1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW

GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW
-

1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW

GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
1

1623-2041A2 GEAR HOUSING ASSEMBLY

GEAR HOUSING ASSEMBLY
1

1623-2022A1 GEAR HOUSING ASSEMBLY

GEAR HOUSING ASSEMBLY
2

16-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-15/16")

STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-15/16")
3

16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")

STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
4

16-30669 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/4")

STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/4")
5

16-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/8")

STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/8")
6

31-32898T BEARING, ROLLER - DRIVE SHAFT

BEARING, ROLLER - DRIVE SHAFT
7

45-38459 DRIVE SHAFT (SHORT SHAFT)

DRIVE SHAFT (SHORT SHAFT)
7

45-38460 DRIVE SHAFT (LONG SHAFT)

DRIVE SHAFT (LONG SHAFT)
8

43-30566 GEAR, PINION - DRIVE SHAFT

GEAR, PINION - DRIVE SHAFT
8

43-31419 GEAR, PINION - DRIVE SHAFT

GEAR, PINION - DRIVE SHAFT
9

11-30932 NUT, PINION GEAR TO DRIVE SHAFT

NUT, PINION GEAR TO DRIVE SHAFT
10

15-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING

SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
11

30-63326T BEARING, BALL - DRIVE SHAFT

BEARING, BALL - DRIVE SHAFT
12

53-30726 RING, RETAINING - BALL BEARING

RING, RETAINING - BALL BEARING
13

27-32438 GASKET, WATER PUMP BASE TO GEAR HOUSING

GASKET, WATER PUMP BASE TO GEAR HOUSING
14

25-30224 "O" RING, WATER PUMP BASE

"O" RING, WATER PUMP BASE
15

46-31277A1 WATER PUMP BASE ASSEMBLY

WATER PUMP BASE ASSEMBLY
15

46-48758A1 WATER PUMP BASE ASSEMBLY

WATER PUMP BASE ASSEMBLY
16

26-94038 OIL SEAL, WATER PUMP BASE

OIL SEAL, WATER PUMP BASE
17

17-29596T DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY

DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
18

27-31285 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE

GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
18

27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE

GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
19

31287 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY

PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
19

324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY

PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
20

27-31286 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY

GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
20

27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY

GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
21

46-31273A1 WATER PUMP BODY ASSEMBLY

WATER PUMP BODY ASSEMBLY
21

46-96148A8 WATER PUMP BODY ASSEMBLY

WATER PUMP BODY ASSEMBLY
22

30915 INSERT, WATER PUMP BODY

INSERT, WATER PUMP BODY
23

26-16977 OIL SEAL, WATER PUMP BODY

OIL SEAL, WATER PUMP BODY
24

47-89984T4 IMPELLER, WATER PUMP

IMPELLER, WATER PUMP
25

17-8M0034466 PIN, IMPELLER DRIVE

PIN, IMPELLER DRIVE
26

10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4")

SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4")
27

13-26992 LOCKWASHER, WATER PUMP BODY FASTENING SCREW&STUDS (1/4")

LOCKWASHER, WATER PUMP BODY FASTENING SCREW&STUDS (1/4")
28

11-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4")

NUT, WATER PUMP BODY FASTENING STUDS (1/4")
29

13-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")

LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")
30

11-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16")

NUT, WATER PUMP BODY FASTENING STUD (5/16")
31

25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)

RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
32

26-38970 SEAL, RUBBER - WATER PUMP BODY

SEAL, RUBBER - WATER PUMP BODY
33

23-29804T SLEEVE, GUIDE - WATER INLET TUBE

SLEEVE, GUIDE - WATER INLET TUBE
34

25-30613 "O" RING, UPPER - DRIVE SHAFT

"O" RING, UPPER - DRIVE SHAFT
--

26-31282 SEAL, WATER PUMP BODY TO WATER

SEAL, WATER PUMP BODY TO WATER
--

32-31272 TUBE, WATER INTAKE - GEAR HOUSING

TUBE, WATER INTAKE - GEAR HOUSING
--

26-29971 SEAL, GEAR HOUSING TO WATER INTAKE TUBE

SEAL, GEAR HOUSING TO WATER INTAKE TUBE
35

25136 SHAFT, SHIFT - LOWER

SHAFT, SHIFT - LOWER
36

53-29641 CLIP, RETAINING - SHIFT SHAFT

CLIP, RETAINING - SHIFT SHAFT
38

23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT

BUSHING ASSEMBLY, SHIFT SHAFT
39

26-892361 OIL SEAL, SHIFT SHAFT BUSHING

OIL SEAL, SHIFT SHAFT BUSHING
40

12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING

WASHER, RUBBER - SHIFT SHAFT BUSHING
41

52918 CAM, LOWER - REVERSE LOCKING

CAM, LOWER - REVERSE LOCKING
42

52919 CAM, UPPER - REVERSE LOCKING

CAM, UPPER - REVERSE LOCKING
43

23-30607 SPACER, NYLON - REVERSE LOCKING CAM

SPACER, NYLON - REVERSE LOCKING CAM
44

22-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE

PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
45

10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE

SCREW, GREASE FILLER AND VENT HOLE
46

12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW

WASHER, GREASE FILLER AND VENT HOLE SCREW
47

10-29608 SCREW, GEAR HOUSING FLUSHING HOLE

SCREW, GEAR HOUSING FLUSHING HOLE
48

27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW

GASKET, GEAR HOUSING FLUSHING HOLE SCREW
49

26-29612 SEAL, GEAR HOUSING FLUSHING HOLE

SEAL, GEAR HOUSING FLUSHING HOLE
