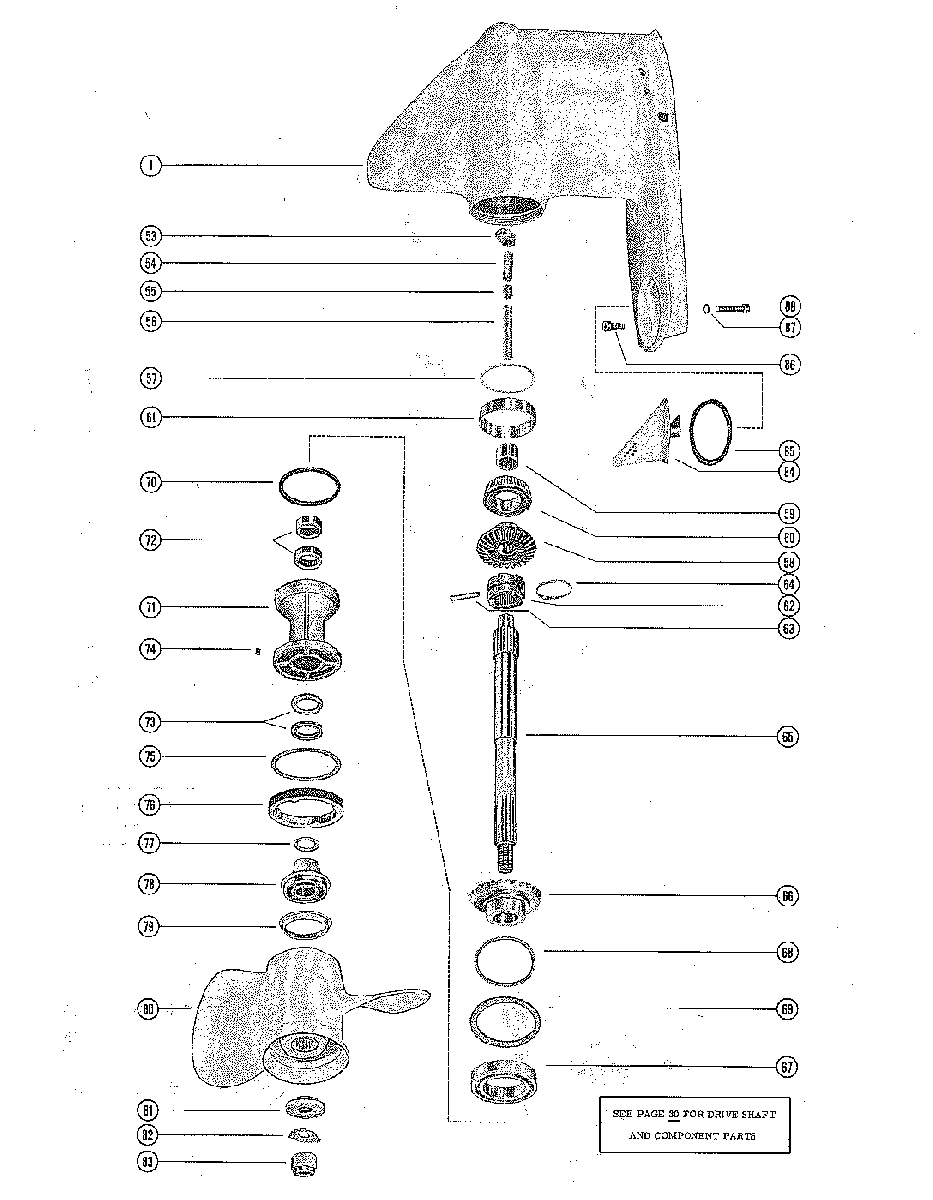

GEAR HOUS ASSY,COMP.(PROP. SHAFT/COMP PARTS MERC 700E)P. 2 для Mercury - 700 (6 CYL.) 1413611 THRU 1566239

  • №
    Артикул
    Название
  • -
    1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) - SEE NOTE
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) - SEE NOTE
  • -
    1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) - SEE NOTE
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) - SEE NOTE
  • 1
    1623-2041A2 GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)
    GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)
  • 53
    760394 CAM, SHIFT
    CAM, SHIFT
  • 54
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 55
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 56
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 57
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING
    SHIM, BEARING OUTER RACE TO GEAR HOUSING
  • --
    43-30938A2 FORWARD GEAR ASSEMBLY, COMPLETE
    FORWARD GEAR ASSEMBLY, COMPLETE
  • 58
    43-30938A2 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 59
    31-30895T BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 60
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 61
    31-31092 CUP, OUTER - TAPER ROLLER BEARING
    CUP, OUTER - TAPER ROLLER BEARING
  • 62
    52-30941 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 63
    17-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 64
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 65
    44-47900A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • --
    43-30937 REVERSE GEAR ASSEMBLY, COMPLETE
    REVERSE GEAR ASSEMBLY, COMPLETE
  • 66
    43-30937 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 67
    30-30548 BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 68
    15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING
    SHIM, THRUST WASHER TO GEAR HOUSING
  • 69
    12-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
  • 70
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 71
    30579A1 BEARING CARRIER ASSEMBLY (4 45/64" OVERALL LENGTH)
    BEARING CARRIER ASSEMBLY (4 45/64" OVERALL LENGTH)
  • 72
    31-30616 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 73
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 74
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 75
    12-29957 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 76
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 77
    12-31013 WASHER, THRUST - BEARING CARRIER
    WASHER, THRUST - BEARING CARRIER
  • 78
    30581A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 79
    12-29590 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 80
    48-77344A45 PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM)
    PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM)
  • 81
    12-30967 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 82
    14-30963 TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 83
    11-29594 NUT, PROPELLER
    NUT, PROPELLER
  • 84
    31237 WATER PICKUP, GEAR HOUSING
    WATER PICKUP, GEAR HOUSING
  • 85
    27-30557 GASKET, WATER PICKUP TO GEAR HOUSING
    GASKET, WATER PICKUP TO GEAR HOUSING
  • 86
    10-30559 SCREW, WATER PICKUP TO GEAR HOUSING (2-1/4")
    SCREW, WATER PICKUP TO GEAR HOUSING (2-1/4")
  • 87
    13-26993 LOCKWASHER, WATER PICKUP FASTENING SCREW
    LOCKWASHER, WATER PICKUP FASTENING SCREW
  • 88
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
