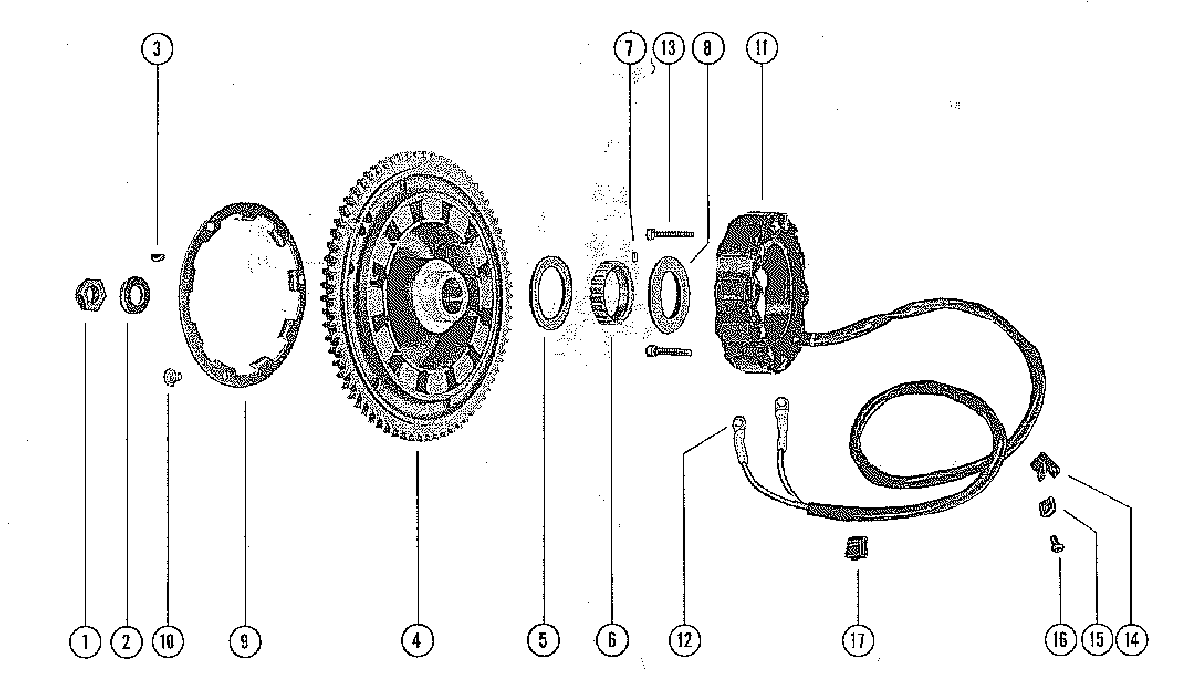

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-26617 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4212-1424A4 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
529788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
630306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
950-25263 RATCHET, FLYWHEELRATCHET, FLYWHEEL
-
1010-29238 SCREW, RATCHET TO FLYWHEEL (SEE NOTE BELOW)SCREW, RATCHET TO FLYWHEEL (SEE NOTE BELOW)
-
11398-2035 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1230050 TERMINAL, STATOR LEAD WIRETERMINAL, STATOR LEAD WIRE
-
1310-29283 SCREW, STATOR TO UPPER END CAPSCREW, STATOR TO UPPER END CAP
-
1454-24836 CLIP, STATOR LEAD TO EXHAUST COVERCLIP, STATOR LEAD TO EXHAUST COVER
-
158M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
1610-8M0113176 SCREW, STATOR LEAD CLIP FASTENINGSCREW, STATOR LEAD CLIP FASTENING
-
1754-22783 "S" CLIP, STATOR LEAD TO BOTTOM COWL"S" CLIP, STATOR LEAD TO BOTTOM COWL
