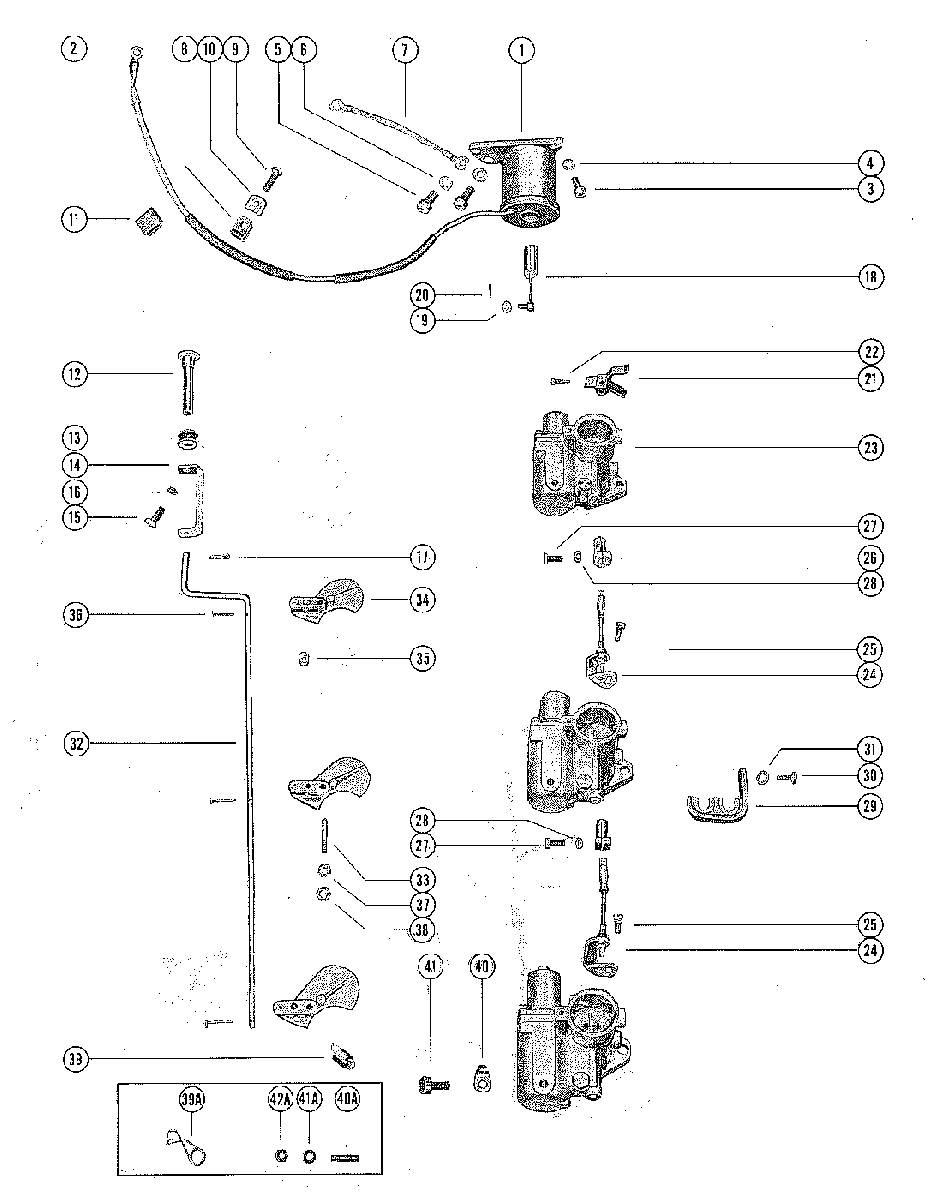

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
131041 CHOKE SOLENOID, TOP COWLCHOKE SOLENOID, TOP COWL
-
230050 TERMINAL, CHOKE SOLENOID LEADTERMINAL, CHOKE SOLENOID LEAD
-
310-24773 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
413-26991 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
510-20540 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
613-26992 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
726716A1 GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTORGROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR
-
854-648552 CLIP, CHOKE SOLENOID WIRECLIP, CHOKE SOLENOID WIRE
-
910-24239 SCREW, WIRE CLIP TO TOP COWLSCREW, WIRE CLIP TO TOP COWL
-
108M0084613 "D" WASHER, WIRE CLIP FASTENING SCREW"D" WASHER, WIRE CLIP FASTENING SCREW
-
1154-22783 "S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL"S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL
-
1325-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1422462 "U" LINK, CHOKE KNOB TO CHOKE ROD"U" LINK, CHOKE KNOB TO CHOKE ROD
-
1510-69022 SCREW, "U" LINK TO CHOKE KNOBSCREW, "U" LINK TO CHOKE KNOB
-
1613-26996 LOCKWASHER, "U" LINK SCREWLOCKWASHER, "U" LINK SCREW
-
1718-26953 COTTER PIN, "U" LINK TO CHOKE RODCOTTER PIN, "U" LINK TO CHOKE ROD
-
1827031A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
1912-30164 WASHER, PLUNGER AND LINKWASHER, PLUNGER AND LINK
-
2018-26953 COTTER PIN, LINK TO UPPER CHOKE LEVERCOTTER PIN, LINK TO UPPER CHOKE LEVER
-
2127977 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
221395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
231333-1860 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
2428007A1 THROTTLE PICK-UP BRACKET ASSEMBLYTHROTTLE PICK-UP BRACKET ASSEMBLY
-
2453719A2 THROTTLE PICK-UP BRACKET ASSEMBLY (NOT AS SHOWN)THROTTLE PICK-UP BRACKET ASSEMBLY (NOT AS SHOWN)
-
2510-29239 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
-
2627870 CLAMP, THROTTLE PICK-UP BRACKETCLAMP, THROTTLE PICK-UP BRACKET
-
2710-69022 SCREW, UPPER AND LOWER CLAMP FASTENINGSCREW, UPPER AND LOWER CLAMP FASTENING
-
2812-30164 WASHER, CLAMP FASTENING SCREWWASHER, CLAMP FASTENING SCREW
-
2926977 BRACKEET, COIL LEAD RETAINERBRACKEET, COIL LEAD RETAINER
-
3010-98253 SCREW, RETAINER BRACKET TO CENTER CARBURETORSCREW, RETAINER BRACKET TO CENTER CARBURETOR
-
3113-21272 LOCKWASHER, BRACKET FASTENING SCREWLOCKWASHER, BRACKET FASTENING SCREW
-
3231040 ROD, CHOKEROD, CHOKE
-
3316-30172 STUD, CARBURETOR - CHOKE LEVER PIVOTSTUD, CARBURETOR - CHOKE LEVER PIVOT
-
3438604 SHUTT,ER CHOKE - CARBURETORSHUTT,ER CHOKE - CARBURETOR
-
3523-30438 BUSHING, NYLON - UPPER CHOKE LEVERBUSHING, NYLON - UPPER CHOKE LEVER
-
3617-25391 RIVET, CHOKE LEVER TO CHOKE RODRIVET, CHOKE LEVER TO CHOKE ROD
-
3712-30164 WASHER, CHOKE LEVER CARBURETOR STUDWASHER, CHOKE LEVER CARBURETOR STUD
-
3811-20110 NUT, CHOKE LEVER TO CARBURETOR STUDNUT, CHOKE LEVER TO CARBURETOR STUD
-
3924-28965 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
4027711 RETAINER, CHOKE ROD SPRING TO CARBURETORRETAINER, CHOKE ROD SPRING TO CARBURETOR
-
4110-28713 SCREW, RETAINER TO LOWER CARBURETORSCREW, RETAINER TO LOWER CARBURETOR
-
39A24-32428 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
40A10-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
41A12-20583 WASHER, CHOKE ROD SPRING STUDWASHER, CHOKE ROD SPRING STUD
-
42A11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
-
39A24-32428 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
41A23-32427 SPACER, CHOKE ROD TENSION STUDSPACER, CHOKE ROD TENSION STUD
