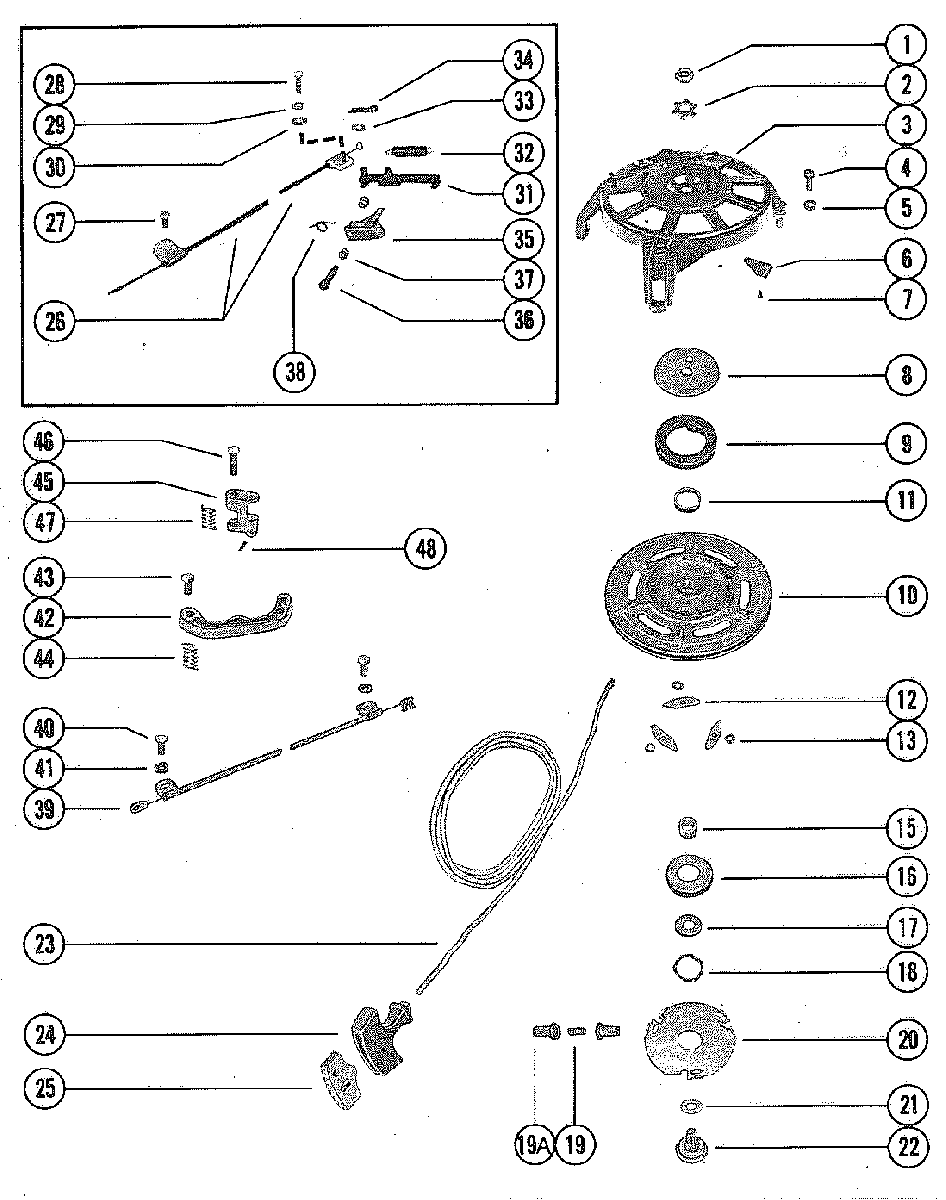

STARTER HOUSING (MANUAL) для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 2
    14-61004 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 3
    89016A3 HOUSING, STARTER
    HOUSING, STARTER
  • 4
    10-90073 SCREW
    STARTER HOUSING TO CRANKCASE/CYLINDER BLOCK (1")
    SCREW
    STARTER HOUSING TO CRANKCASE/CYLINDER BLOCK (1")
  • 5
    13-20202 LOCKWASHER, STARTER HOUSING SCREW
    LOCKWASHER, STARTER HOUSING SCREW
  • 6
    37691 PLATE, CABLE GUIDE
    PLATE, CABLE GUIDE
  • 7
    10-358811 SCREW, DRIVE - CABLE GUIDE TO START HOUSING
    SCREW, DRIVE - CABLE GUIDE TO START HOUSING
  • 8
    61002 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 9
    24-39502T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 10
    76053A1 SHEAVE ASSEMBLY
    SHEAVE ASSEMBLY
  • 11
    23-63100 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 12
    30596 PAWL, STARTER
    PAWL, STARTER
  • 13
    13-36206 WASHER, WAVE-STARTER PAWL
    WASHER, WAVE-STARTER PAWL
  • 15
    23-63061 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 16
    39840 RETAIINER, WAVE WASHER
    RETAIINER, WAVE WASHER
  • 17
    12-57837 WASHER, WAVE WASHER RETAINER
    WASHER, WAVE WASHER RETAINER
  • 18
    13-20160 WASHER, WAVE-RETAINER TENSION
    WASHER, WAVE-RETAINER TENSION
  • 19
    24-66853 SPRING, RETAINER PLATE TO STARTER SHEAVE
    SPRING, RETAINER PLATE TO STARTER SHEAVE
  • 19A
    66848 RETAINER, SPRING
    RETAINER, SPRING
  • 20
    66845 PLATE, RETAINER-STARTER PAWL
    PLATE, RETAINER-STARTER PAWL
  • 21
    12-57860 WASHER, WEAR-SHEAVE SHAFT
    WASHER, WEAR-SHEAVE SHAFT
  • 22
    61003 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 23
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 23
    47341A11 STARTER CABLE
    (FOR MANUAL STARTING OF ELECTRIC ENGINE)
    STARTER CABLE
    (FOR MANUAL STARTING OF ELECTRIC ENGINE)
  • 24
    28747 HANDLE, STARTER CABLE
    UNITED STATES 4962055 AND BELOW AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    HANDLE, STARTER CABLE
    UNITED STATES 4962055 AND BELOW AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 25
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
  • 24&25
    79470A1 HANDLE AND RETAINER ASSEMBLY
    STARTER CABLE
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    HANDLE AND RETAINER ASSEMBLY
    STARTER CABLE
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 26
    70969 CABLE, INTERLOCK
    UNITED STATES 4357640 THRU 4705992
    AUSTRALIA 8030090 THRU 8044724
    BELGIUM 9107214 THRU 9155279
    CANADA 7068998 THRU 7097572
    CABLE, INTERLOCK
    UNITED STATES 4357640 THRU 4705992
    AUSTRALIA 8030090 THRU 8044724
    BELGIUM 9107214 THRU 9155279
    CANADA 7068998 THRU 7097572
  • 27
    10-32228 SCREW
    INTERLOCK CABLE TO EXHAUST PLATE (5/8")
    SCREW
    INTERLOCK CABLE TO EXHAUST PLATE (5/8")
  • 28
    10-69022 SCREW
    INTERLOCK CABLE TO STARTER HOUSING (1/2")
    SCREW
    INTERLOCK CABLE TO STARTER HOUSING (1/2")
  • 29
    13-27660 LOCKWASHER, INTERLOCK CABLE SCREW
    LOCKWASHER, INTERLOCK CABLE SCREW
  • 30
    12-26013 WASHER, INTERLOCK CABLE SCREW
    WASHER, INTERLOCK CABLE SCREW
  • 31
    57236 CAM, SLIDING-STARTER HOUSING
    CAM, SLIDING-STARTER HOUSING
  • 32
    24-70086 SPRING, SLIDING CAM
    SPRING, SLIDING CAM
  • 33
    12-37998 WASHER, INTERLOCK CABLE
    WASHER, INTERLOCK CABLE
  • 34
    18-26953 COTTER PIN, INTERLOCK CABLE TO SLIDING CAM
    COTTER PIN, INTERLOCK CABLE TO SLIDING CAM
  • 35
    65757A1 TOGGLE ASSEMBLY, STARTER INTERLOCK
    TOGGLE ASSEMBLY, STARTER INTERLOCK
  • 36
    10-57249 SCREW, TOGGLE TO STARTER HOUSING
    SCREW, TOGGLE TO STARTER HOUSING
  • 37
    23-26856 BUSHING, TOGGLE SCREW
    BUSHING, TOGGLE SCREW
  • 38
    24-57279 SPRING, TOGGLE SCREW
    SPRING, TOGGLE SCREW
  • 39
    76568 CABLE
    INTERLOCK ALSO USED ON TILLER HANDLE MODELS
    CABLE
    INTERLOCK ALSO USED ON TILLER HANDLE MODELS
  • 40
    10-69022 SCREW, CABLE (1/2")
    ALSO USED ON TILLER HANDLE MODELS
    SCREW, CABLE (1/2")
    ALSO USED ON TILLER HANDLE MODELS
  • 41
    12-26013 WASHER, CABLE SCREW
    ALSO USED ON TILLER HANDLE MODELS
    WASHER, CABLE SCREW
    ALSO USED ON TILLER HANDLE MODELS
  • 42
    428201 CAM, INTERLOCK
    UNITED STATES 4705993 THRU 4962055
    AUSTRALIA 8044725 THRU 8053229
    BELGIUM 9155280 THRU 9195685
    CANADA 7097573 THRU 7115572
    CAM, INTERLOCK
    UNITED STATES 4705993 THRU 4962055
    AUSTRALIA 8044725 THRU 8053229
    BELGIUM 9155280 THRU 9195685
    CANADA 7097573 THRU 7115572
  • 42
    428201 CAM, INTERLOCK
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    CAM, INTERLOCK
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 43
    10-76138 SCREW, INTERLOCK CAM ATTACHING (1 1/8")
    SCREW, INTERLOCK CAM ATTACHING (1 1/8")
  • 44
    24-761401 SPRING, INTERLOCK CAM SCREW
    SPRING, INTERLOCK CAM SCREW
  • 45
    79371 ACTUATOR, INTERLOCK
    ACTUATOR, INTERLOCK
  • 46
    10-76137 SCREW, INTERLOCK SCTUATOR ATTACHING (1 5/8")
    SCREW, INTERLOCK SCTUATOR ATTACHING (1 5/8")
  • 47
    24-76139 SPRING, INTERLOCK ACTUATOR SCREW
    SPRING, INTERLOCK ACTUATOR SCREW
  • 48
    18-26811 COTTER PIN, INTERLOCK CABLE TO ACTUATOR
    COTTER PIN, INTERLOCK CABLE TO ACTUATOR
