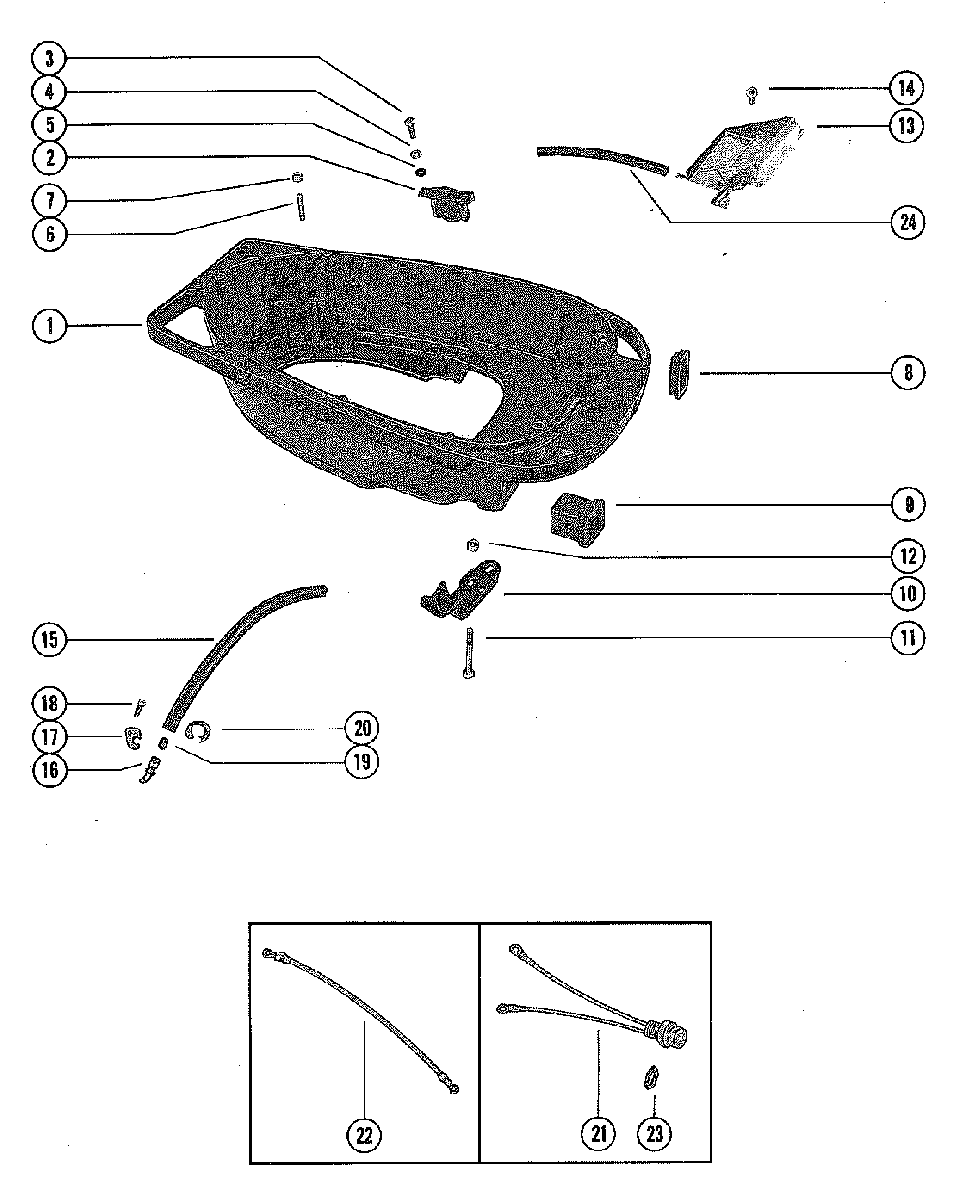

BOTTOM COWL ASSEMBLY для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    2116-7715A4 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • 2
    57786 COVER, PLUG-BOTTOM COWL HARNESS HOLE
    REMOVE-NOT REQUIRED ON ELECTRIC ENGINE
    COVER, PLUG-BOTTOM COWL HARNESS HOLE
    REMOVE-NOT REQUIRED ON ELECTRIC ENGINE
  • 3
    10-45862 SCREW, PLUG COVER TO BOTTOM COWL
    REMOVE-NOT REQUIRED ON ELECTRIC ENGINE
    SCREW, PLUG COVER TO BOTTOM COWL
    REMOVE-NOT REQUIRED ON ELECTRIC ENGINE
  • 4
    13-26996 LOCKWASHER, PLUG COVER SCREW
    REMOVE-NOT REQUIRED ON ELECTRIC ENGINE
    LOCKWASHER, PLUG COVER SCREW
    REMOVE-NOT REQUIRED ON ELECTRIC ENGINE
  • 5
    12-847883 WASHER, PLUG COVER SCREW
    REMOVE-NOT REQUIRED ON ELECTRIC ENGINE
    WASHER, PLUG COVER SCREW
    REMOVE-NOT REQUIRED ON ELECTRIC ENGINE
  • 6
    16-68169 STUD
    BOTTOM COWL TO REAR SUPPORT BRACKET
    STUD
    BOTTOM COWL TO REAR SUPPORT BRACKET
  • 7
    11-35888 NUT, BOTTOM COWL STUD
    NUT, BOTTOM COWL STUD
  • 8
    37695 BOOT, CONTROL CABLE
    BOOT, CONTROL CABLE
  • 9
    37637 BOOT, FUEL CONNECTOR
    BOOT, FUEL CONNECTOR
  • 10
    37692 SUPPORT, EXTERNAL WIRING HARNESS-ELECTRIC
    SUPPORT, EXTERNAL WIRING HARNESS-ELECTRIC
  • 11
    10-67916 SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
    SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
  • 12
    11-20184 NUT, HARNESS SUPPORT SCREW
    NUT, HARNESS SUPPORT SCREW
  • 13
    72466 DRIP TRAY
    DRIP TRAY
  • 14
    45409 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 15
    32-8M0108355 HOSE, TELL TALE HOSE TO BOTTOM COWL (14")
    HOSE, TELL TALE HOSE TO BOTTOM COWL (14")
  • 16
    69791 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 17
    66849 CLAMP, NOZZLE-TELL TALE
    CLAMP, NOZZLE-TELL TALE
  • 18
    10-48408 SCREW, NOZZLE CLAMP TO BOTTOM COWL (1/2")
    SCREW, NOZZLE CLAMP TO BOTTOM COWL (1/2")
  • 19
    23-90882 SLEEVE, TELL TALE NOZZLE
    SLEEVE, TELL TALE NOZZLE
  • 20
    54-68424 CLAMP, TELL TALE NOZZLE
    CLAMP, TELL TALE NOZZLE
  • 21
    87-69508A9 STOP SWITCH ASSEMBLY-MANUAL
    STOP SWITCH ASSEMBLY-MANUAL
  • 22
    84-62190A8 WIRE ASSEMBLY, STOP SWITCH (ORANGE)
    WIRE ASSEMBLY, STOP SWITCH (ORANGE)
  • 23
    11-69844 NUT, STOP SWITCH
    NUT, STOP SWITCH
  • 24
    32-8M0108355 HOSE, DRIP TRAY (7 1/2")
    HOSE, DRIP TRAY (7 1/2")
