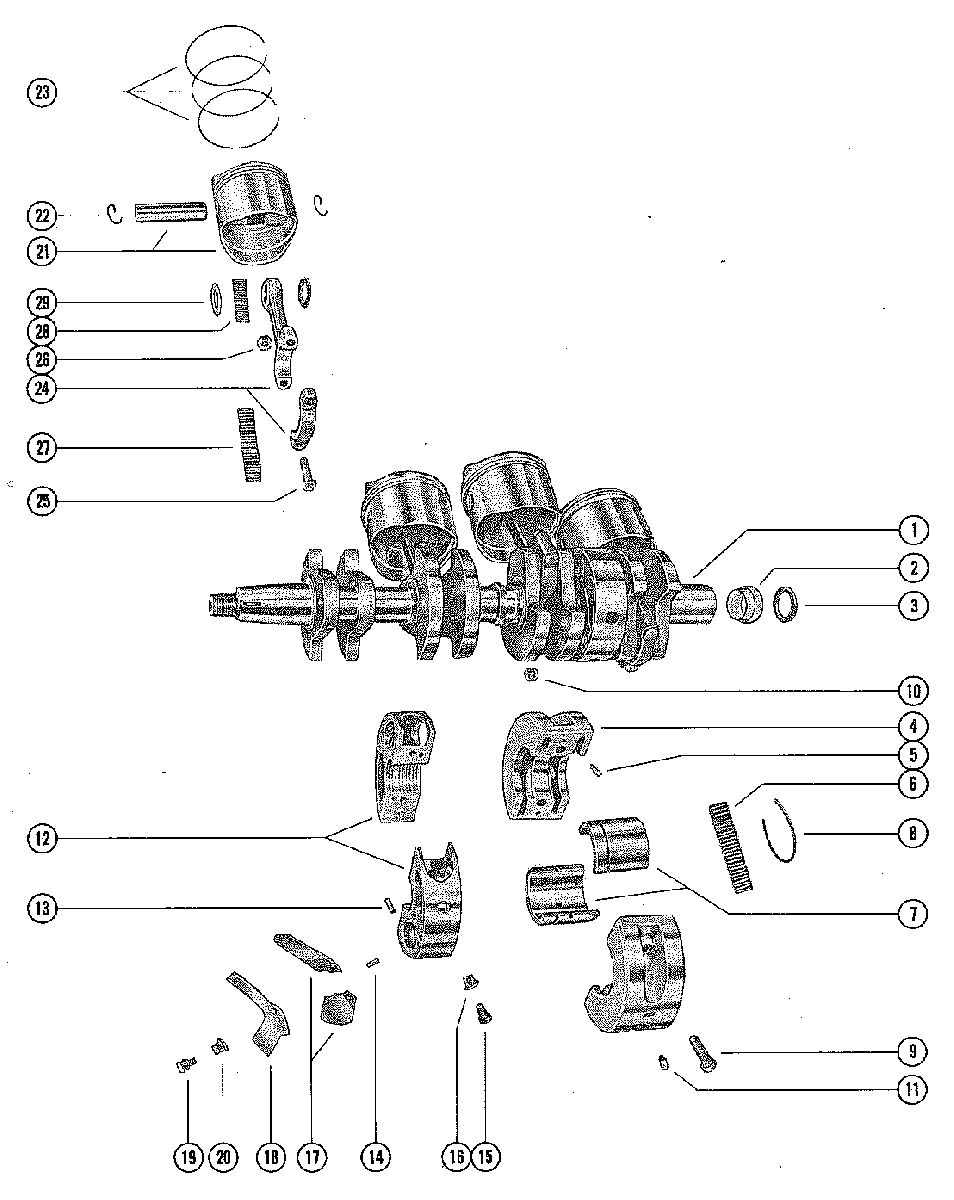

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    459-6689A2 CRANKSHAFT
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW CANADA 7115572 AND BELOW
    CRANKSHAFT
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW CANADA 7115572 AND BELOW
    0 ₽
  • 1
    459-6689A2 CRANKSHAFT
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
    CRANKSHAFT
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
    0 ₽
  • 1
    459-9075T CRANKSHAFT
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    CRANKSHAFT
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    0 ₽
  • 2
    60834A3 CARRIER ASSEMBLY, "O" RING
    METAL SEAL CARRIER PRESSED IN CRANKSHAFT
    CARRIER ASSEMBLY, "O" RING
    METAL SEAL CARRIER PRESSED IN CRANKSHAFT
    0 ₽
  • 3
    64254001 "O" RING, CARRIER
    METAL SEAL CARRIER PRESSED IN CRANKSHAFT
    "O" RING, CARRIER
    METAL SEAL CARRIER PRESSED IN CRANKSHAFT
    280 ₽
  • 4
    500-5345A2 CENTER MAIN BEARING ASSEMBLY
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    CENTER MAIN BEARING ASSEMBLY
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    0 ₽
  • 5
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    DOWEL PIN, CENTER MAIN BEARING
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    250 ₽
  • 6
    29-20046T BEARING, NEEDLY
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    BEARING, NEEDLY
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    70 ₽
  • 7
    20047 RACE, OUTER
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    RACE, OUTER
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    170 ₽
  • 8
    53-20048 RING, SNAP-OUTER RACE
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    RING, SNAP-OUTER RACE
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    0 ₽
  • 9
    10-20784 SCREW, CENTER MAIN BEARING (1 1/2")
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    SCREW, CENTER MAIN BEARING (1 1/2")
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    0 ₽
  • 10
    11-20184 NUT,CENTER MAIN BEARING SCREW
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    NUT,CENTER MAIN BEARING SCREW
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    120 ₽
  • 11
    17-20379 DOWEL PIN (STEPPED)
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    DOWEL PIN (STEPPED)
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW CANADA 7116222 AND BELOW
    0 ₽
  • 4
    547-7060A2 CENTER MAIN BEARING ASSEMBLY
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    CENTER MAIN BEARING ASSEMBLY
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    0 ₽
  • 5
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    DOWEL PIN, CENTER MAIN BEARING
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    250 ₽
  • 6
    29-714221 BEARING, NEEDL
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    BEARING, NEEDL
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    90 ₽
  • 7
    26113T RACE, OUTER
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    RACE, OUTER
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    14 260 ₽
  • 8
    53-26933 RING, SNAP-OUTER RACE CLAMPING
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    RING, SNAP-OUTER RACE CLAMPING
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    260 ₽
  • 9
    10-76630 SCREW, CENTER MAIN BEARING CLAMPING (1")
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    SCREW, CENTER MAIN BEARING CLAMPING (1")
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    170 ₽
  • 11
    17-27732 DOWEL PIN (STEPPED)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    DOWEL PIN (STEPPED)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    0 ₽
  • 12
    534-3267T25 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
    31 760 ₽
  • 13
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
    250 ₽
  • 14
    17-65855 DOWEL PIN, REED LOCATING
    DOWEL PIN, REED LOCATING
    330 ₽
  • 15
    10-45775 SCREW, MAIN BEARING CLAMPING (9/16")
    SCREW, MAIN BEARING CLAMPING (9/16")
    0 ₽
  • 16
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
    290 ₽
  • 17
    34-88498A1 REED SET, MATCHED
    REED SET, MATCHED
    8 230 ₽
  • 18
    34-20053 REED STOP
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    REED STOP
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    440 ₽
  • 18
    34-822839 REED STOP
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    REED STOP
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    710 ₽
  • 19
    10-77280 SCREW, REED STOP MOUNTING (9/16")
    SCREW, REED STOP MOUNTING (9/16")
    0 ₽
  • 20
    11-20110 NUT,REED STOP MOUNTING SCREW
    NUT,REED STOP MOUNTING SCREW
    120 ₽
  • 21
    780-9229A7 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
    19 270 ₽
  • 22
    40-828119 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
    140 ₽
  • 23
    39-27841A12 RING, PISTON
    RING, PISTON
    9 890 ₽
  • 24
    632-7621A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
    18 140 ₽
  • 25
    10-45379 SCREW, CAP TO CONNECTING ROD
    SCREW, CAP TO CONNECTING ROD
    0 ₽
  • 26
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
    0 ₽
  • 27
    29-20046T BEARING, NEEDLE-CRANKPIN
    BEARING, NEEDLE-CRANKPIN
    70 ₽
  • 28
    29-20063 BEARING, NEEDLE-PISTON PIN
    BEARING, NEEDLE-PISTON PIN
    60 ₽
  • 29
    12-47275 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
    340 ₽
  • -
    27-72486A32 GASKET SET
    GASKET SET
    6 780 ₽
