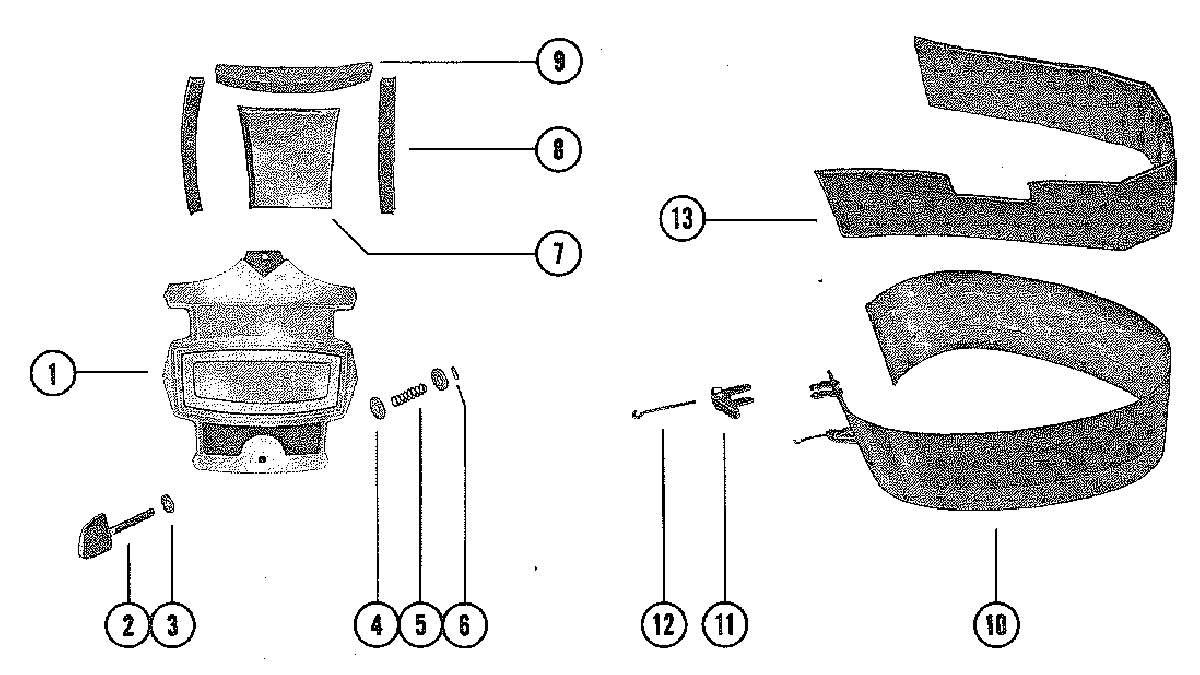

COWLING AND FRONT COVER для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    2182-7927A5 COWL FRONT COVER ASSEMBLY
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    COWL FRONT COVER ASSEMBLY
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 1
    2182-7927A5 COWL FRONT COVER ASSEMBLY
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    COWL FRONT COVER ASSEMBLY
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 2
    56848 KNOB, COWL FRONT COVER FASTENING
    KNOB, COWL FRONT COVER FASTENING
  • 3
    12-30771 WASHER, COVER FASTENING KNOB
    WASHER, COVER FASTENING KNOB
  • 4
    12-59572 WASHER, COVER FASTENING KNOB
    WASHER, COVER FASTENING KNOB
  • 5
    24-30772 SPRING, TENSION-COVER FASTENING KNOB
    SPRING, TENSION-COVER FASTENING KNOB
  • 6
    17-29077 PIN, ROLL-TENSION SPRING TO KNOB
    PIN, ROLL-TENSION SPRING TO KNOB
  • 7
    38674 BLANKET, SOUNG ABSORBING
    BLANKET, SOUNG ABSORBING
  • 8
    31095 SEAL, SOUND-LOWER SECTION
    SEAL, SOUND-LOWER SECTION
  • 9
    38133 SEAL, SOUND-UPPER SECTION
    SEAL, SOUND-UPPER SECTION
  • 10
    2118-3247A3 WRAP AROUND COWL ASSEMBLY
    WRAP AROUND COWL ASSEMBLY
  • 11
    46785A1 COWL LATCH ASSEMBLY
    COWL LATCH ASSEMBLY
  • 12
    30413 HOOK, COWL LATCH FASTENING
    HOOK, COWL LATCH FASTENING
  • 13
    37794 BLANKET, SOUND ABSORBING
    BLANKET, SOUND ABSORBING
  • --
    92-86166Q1 GLUE (BLANKET ADHESIVE)
    GLUE (BLANKET ADHESIVE)
