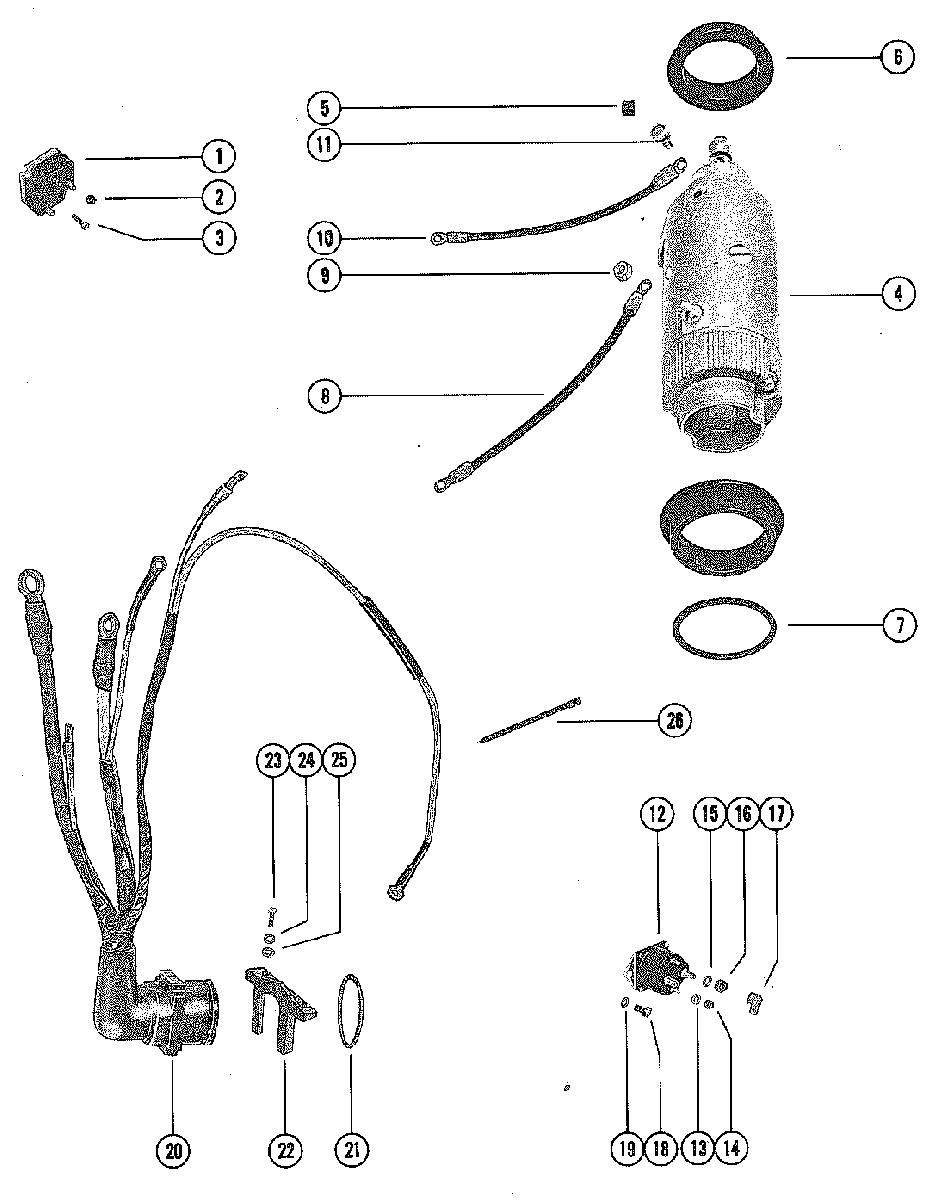

ELECTRIC COMPONENTS для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 2
    11-45076 NUT, RECTIFIER TERMINAL
    NUT, RECTIFIER TERMINAL
  • 3
    10-20411 SCSREW, RECTIFIER TO SWITCH BOX PLATE (5/8")
    SCSREW, RECTIFIER TO SWITCH BOX PLATE (5/8")
  • 4
    50-898265005 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 5
    8M0043376 STOP, RUBBER-STARTER MOTOR
    STOP, RUBBER-STARTER MOTOR
  • 6
    23-8M0034918 COLLAR, RUBBER-STARTER MOTOR MOUNT
    COLLAR, RUBBER-STARTER MOTOR MOUNT
  • 7
    23-56774 SPACER, COLLAR TO BRACKET
    SPACER, COLLAR TO BRACKET
  • 8
    84-93389A1 WIRE ASSEMBLY
    STARTER MOTOR TO SOLENOID (YELLOW)
    WIRE ASSEMBLY
    STARTER MOTOR TO SOLENOID (YELLOW)
  • 9
    11-64015 NUT, WIRE TO STARTER MOTOR (1/4-20)
    NUT, WIRE TO STARTER MOTOR (1/4-20)
  • 10
    84-93388A14 WIRE ASSEMBLY
    STARTER MOTOR TO BRACKET (BLACK)
    WIRE ASSEMBLY
    STARTER MOTOR TO BRACKET (BLACK)
  • 11
    10-69035 SCREW, WIRE TO STARTER MOTOR (5/8")
    SCREW, WIRE TO STARTER MOTOR (5/8")
  • 12
    89-853654A1 STARTER SOLENOID
    STARTER SOLENOID
  • 13
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 14
    11-45076 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 15
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 16
    11-21908 NUT, SOLENOID TERMINAL (5/16")
    NUT, SOLENOID TERMINAL (5/16")
  • 17
    46265 BOOT, TERMINAL-STARTER SOLENOID
    BOOT, TERMINAL-STARTER SOLENOID
  • 18
    10-98253 SCREW, SELENOID TO SUPPORT BRACHET (1/2")
    SCREW, SELENOID TO SUPPORT BRACHET (1/2")
  • 19
    13-26992 WASHER, STARTER SOLENOID SCREW
    WASHER, STARTER SOLENOID SCREW
  • 20
    84-73447A1 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 21
    24-28975 SPRING, GARTER-INTERNAL WIRING HARNESS
    SPRING, GARTER-INTERNAL WIRING HARNESS
  • 22
    54-76368 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 23
    10-45862 SCREW
    WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
    SCREW
    WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
  • 24
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 25
    12-847883 WASHER, WIRING HARNESS CLAMP SCREW
    WASHER, WIRING HARNESS CLAMP SCREW
  • 26
    61990 STA-STRAP, WIRING HARNESS
    STA-STRAP, WIRING HARNESS
