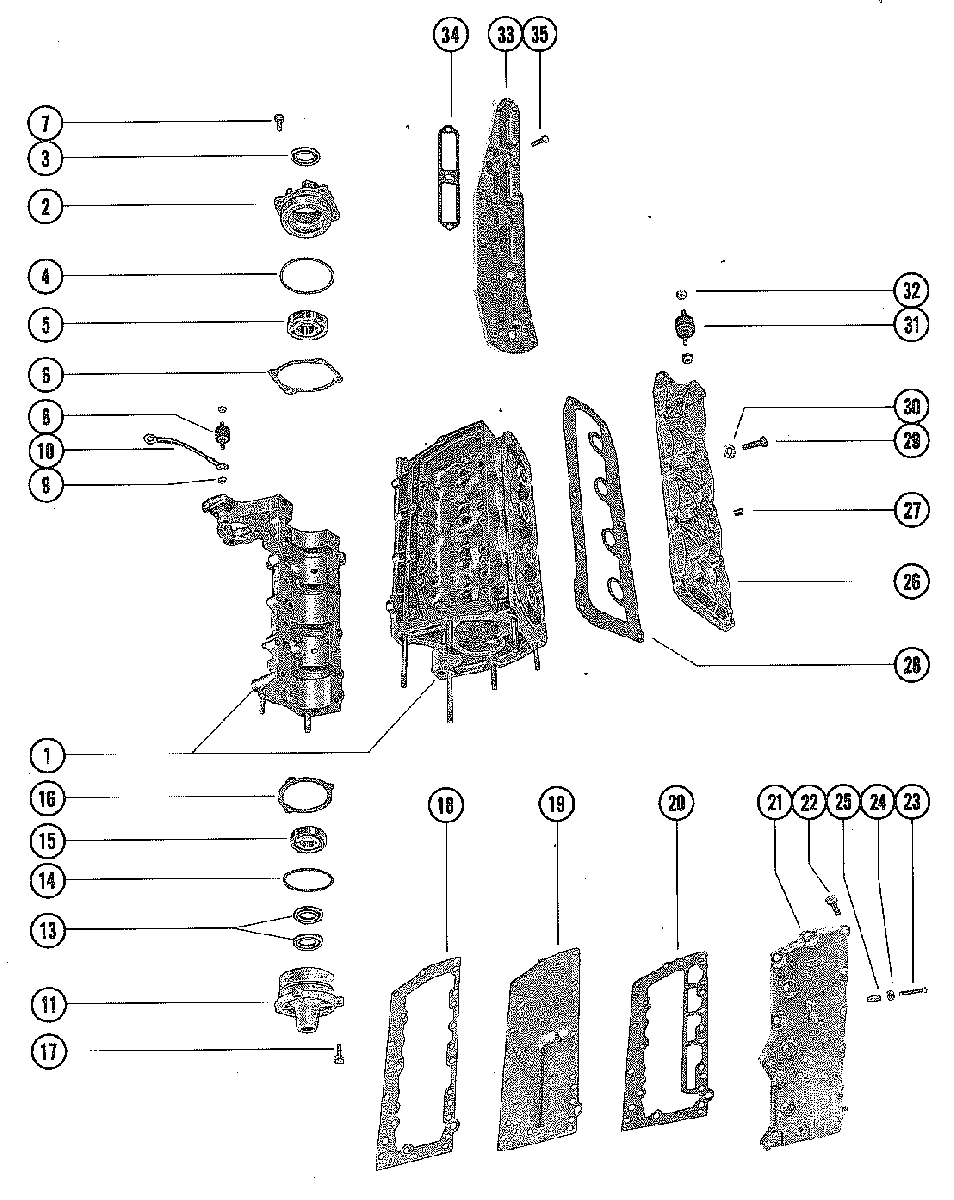

END CAPS, MANIFOLD AND EXHAUST COVERS для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    863-8981A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
    SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 1
    863-8981A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
    SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
  • 1
    863-8981A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
    SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 2
    1160-5826A2 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 3
    26-41953 OIL SEAL
    OIL SEAL
  • 4
    25-20081 "O" RING, UPPER END CAP
    "O" RING, UPPER END CAP
  • 5
    30-63742T BALL BEARING, UPPER END CAP
    BALL BEARING, UPPER END CAP
  • 6
    15-72538A1 SHIM
    UPPER END CAP TO CYL. BLOCK/CRANKCASE (.005-10)
    SHIM
    UPPER END CAP TO CYL. BLOCK/CRANKCASE (.005-10)
  • 7
    10-824941 SCREW, UPPER END CAP MOUNTING (3/4")
    SCREW, UPPER END CAP MOUNTING (3/4")
  • 8
    90435 MOUNT, RUBBER-CRANKCASE
    MOUNT, RUBBER-CRANKCASE
  • 9
    11-20184 NUT, CRANKCASE RUBBER MOUNT
    NUT, CRANKCASE RUBBER MOUNT
  • 10
    84-65773A5 GROUND STRAP, CRANKCASE MOUNT
    GROUND STRAP, CRANKCASE MOUNT
  • 11
    1158-6635T1 END CAP ASSEMBLY, LOWER
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    END CAP ASSEMBLY, LOWER
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 11
    1158-6635T1 END CAP ASSEMBLY, LOWER
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    END CAP ASSEMBLY, LOWER
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 13
    26-41953 OIL SEAL, LOWER END CAP
    OIL SEAL, LOWER END CAP
  • 14
    25-20081 "O" RING, LOWER END CAP
    "O" RING, LOWER END CAP
  • 15
    30-63742T BALL BEARING, LOWER END CAP
    BALL BEARING, LOWER END CAP
  • 16
    15-20085A1 SHIM
    LOWER END CAP TO CRANKCASE/CYL, BLOCK (.005-10)
    SHIM
    LOWER END CAP TO CRANKCASE/CYL, BLOCK (.005-10)
  • 17
    10-29256 SCREW, LOWER END CAP MOUNTING (7/8")
    SCREW, LOWER END CAP MOUNTING (7/8")
  • 18
    27-854913 GASKET
    CYLINDER BLOCK TO BAFFLE PLATE
    GASKET
    CYLINDER BLOCK TO BAFFLE PLATE
  • 19
    90421T01 PLATE, BAFFLE-EXHAUST MANIFOLD
    PLATE, BAFFLE-EXHAUST MANIFOLD
  • 20
    27-854924 GASKET, BAFFLE PLATE TO EXHAUST COVER
    GASKET, BAFFLE PLATE TO EXHAUST COVER
  • 21
    77381 COVER, EXHAUST MANIFOLD
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    COVER, EXHAUST MANIFOLD
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 21
    77381 COVER, EXHAUST MANIFOLD
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    COVER, EXHAUST MANIFOLD
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 22
    10-37562 SCREW
    MANIFOLD COVER TO CYLINDER BLOCK (1")
    SCREW
    MANIFOLD COVER TO CYLINDER BLOCK (1")
  • 22
    10-38837 SCREW
    MANIFOLD COVER TO CYLINGER BLOCK (1 1/8")
    SCREW
    MANIFOLD COVER TO CYLINGER BLOCK (1 1/8")
  • 23
    10-73280 SCREW
    ADJUSTING-EXHAUST MANIFOLD COVER (1 1/2")
    SCREW
    ADJUSTING-EXHAUST MANIFOLD COVER (1 1/2")
  • 23
    10-73281 SCREW
    ADJUSTING-ECHAUST MANIFOLD COVER (1 3/4")
    SCREW
    ADJUSTING-ECHAUST MANIFOLD COVER (1 3/4")
  • 24
    11-20890 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 25
    26852 CAP, ADJUSTING SCREW
    CAP, ADJUSTING SCREW
  • 26
    1017-7054A1 COVER ASSEMBLY, CYLINGER BLOCK
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    COVER ASSEMBLY, CYLINGER BLOCK
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 26
    1017-7054A1 COVER ASSEMBLY, CYLINDER BLOCK
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    COVER ASSEMBLY, CYLINDER BLOCK
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 27
    22-328022 PLUG, PIPE-CYLINDER BLOCK COVER
    PLUG, PIPE-CYLINDER BLOCK COVER
  • 28
    27-85487 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 29
    10-76630 SCREW, CYLINDER BLOCK COVER (1")
    SCREW, CYLINDER BLOCK COVER (1")
  • 31
    90435 MOUNT, RUBBER-CYLINDER BLOCK COVER
    MOUNT, RUBBER-CYLINDER BLOCK COVER
  • 33
    18827A1 COVER, TRANSFER PORT
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    COVER, TRANSFER PORT
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 31
    18827A1 COVER ASSEMBLY, TRANSFER PORT
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    COVER ASSEMBLY, TRANSFER PORT
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 34
    27-279361 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 35
    10-20540 SCREW, TRANSFER PORT COVER MOUNTING (5/8")
    SCREW, TRANSFER PORT COVER MOUNTING (5/8")
  • -
    27-72486A32 GASKET SET
    GASKET SET
  • -
    27-72486A32 GASKET SET
    GASKET SET
