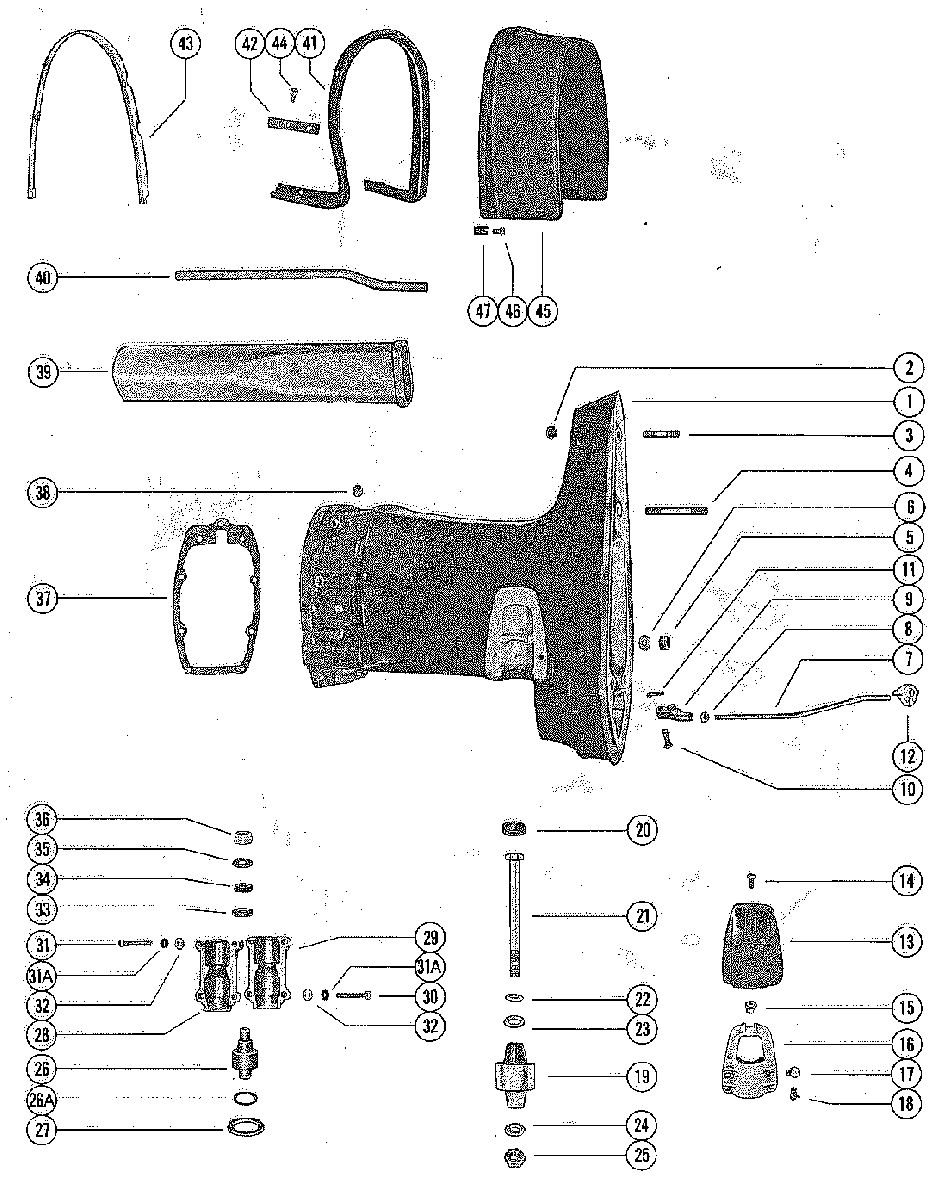

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    1592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 1
    1593-7513A12 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 1
    1592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY ( LONG SHAFT)
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    DRIVE SHAFT HOUSING ASSEMBLY ( LONG SHAFT)
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 1
    1593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 2
    19-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 3
    16-8M0022145 STUD
    DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
    STUD
    DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
  • 4
    16-57935 STUD
    DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
    STUD
    DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
  • 5
    11-34933 NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
    NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
  • 6
    12-65791 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
  • 7
    47835 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
  • 7
    47836 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    ROD, PUSH - REVERSE LOCK (LONG SHAFT)
  • 8
    11-28770 NUT, JAM - PUSH ROD
    NUT, JAM - PUSH ROD
  • 9
    47837 ROD END, PUSH ROD
    ROD END, PUSH ROD
  • 10
    24-78203A2 PIN, REVERSE LOCK LEVER
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
    PIN, REVERSE LOCK LEVER
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
  • 11
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    COTTER PIN, PUSH ROD TO REVERSE LOCK
  • 12
    933361 GUIDE, PUSH ROD
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
    GUIDE, PUSH ROD
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
  • 12
    933361 GUIDE, PUSH ROD
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    GUIDE, PUSH ROD
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 13
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 14
    10-29722 SCREW, COVER TO LOWER MOUNT CLAMP
    SCREW, COVER TO LOWER MOUNT CLAMP
  • 15
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 16
    69592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 17
    10-29256 SCREW
    LOWER MOUNT CLAMP/DRIVE SHAFT HOUSING
    SCREW
    LOWER MOUNT CLAMP/DRIVE SHAFT HOUSING
  • 18
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 19
    75304T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 20
    25067 BUMPER, RUBBER - LOWER MOUNT SCREW
    BUMPER, RUBBER - LOWER MOUNT SCREW
  • 21
    10-75284 SCREW, LOWER MOUNT SCREW
    SCREW, LOWER MOUNT SCREW
  • 22
    12-28051 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 23
    12-28053 WASHER, RUBBER - LOWER MOUNT SCREW
    WASHER, RUBBER - LOWER MOUNT SCREW
  • 24
    12-30119 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 25
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 26
    75305 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 26A
    25-65936 "O" RING, UPPER MOUNT
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    "O" RING, UPPER MOUNT
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 27
    24929 PACKING "U" CUP - UPPER MOOUNT COVERS
    PACKING "U" CUP - UPPER MOOUNT COVERS
  • 28
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 29
    79680A1 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 30
    10-49987 SCREW, UPPER MOUNT COVER - REAR (1 1/2")
    SCREW, UPPER MOUNT COVER - REAR (1 1/2")
  • 31
    10-37941 SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
    SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
  • 32
    68431 NUT, UPPER COVER SCREW
    NUT, UPPER COVER SCREW
  • 27
    96401 SEAL, BELLOWS - UPPER MOUNT
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    SEAL, BELLOWS - UPPER MOUNT
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 28
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 29
    79681 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 30
    10-69029 SCREW, UPPER MOUNT COVER - REAR (1 3/4")
    SCREW, UPPER MOUNT COVER - REAR (1 3/4")
  • 31
    10-67916 SCREW, UPPER MOUNT COVER - FRONT (2")
    SCREW, UPPER MOUNT COVER - FRONT (2")
  • 31A
    12-29245 WASHER, UPPER MOUNT COVER SCREW
    WASHER, UPPER MOUNT COVER SCREW
  • 32
    11-36069 NUT, UPPER MOUNT COVER SCREW
    NUT, UPPER MOUNT COVER SCREW
  • 33
    12-27727 WASHER, UPPER MOUNT BOLT (37/64 ID)
    WASHER, UPPER MOUNT BOLT (37/64 ID)
  • 34
    12-66966 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 35
    12-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)
    WASHER, UPPER MOUNT BOLT (3/8 ID)
  • 36
    11-23161 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 37
    27-385011 GASKET
    EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET
    EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 38
    11-64809 NUT
    POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
    NUT
    POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
  • 39
    695431 TUBE, EXHAUST (SHORT SHAFT)
    TUBE, EXHAUST (SHORT SHAFT)
  • 39
    695441 TUBE, EXHAUST (LONG SHAFT)
    TUBE, EXHAUST (LONG SHAFT)
  • 40
    32-37727 TUBE, WATER INLET (SHORT SHAFT)
    TUBE, WATER INLET (SHORT SHAFT)
  • 40
    32-45679 TUBE, WATER INLET (LONG SHAFT)
    TUBE, WATER INLET (LONG SHAFT)
  • 41
    38157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
    SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
  • 42
    38154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)
    STRIP, RETAINING - TRIM COVER SEAL (SIDE)
  • 43
    38158 STRIP, RETAINING - TRIM COVER SEAL (REAR)
    STRIP, RETAINING - TRIM COVER SEAL (REAR)
  • 44
    10-48408 SCREW
    RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
    SCREW
    RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
  • 45
    37687 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 46
    10-57807 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
  • 47
    25-8M0079730 GROMMET, TRIM COVER SCREW
    GROMMET, TRIM COVER SCREW
  • -
    27-72486A32 GASKET SET
    GASKET SET
  • -
    27-72486A32 GASKET SET
    GASKET SET
