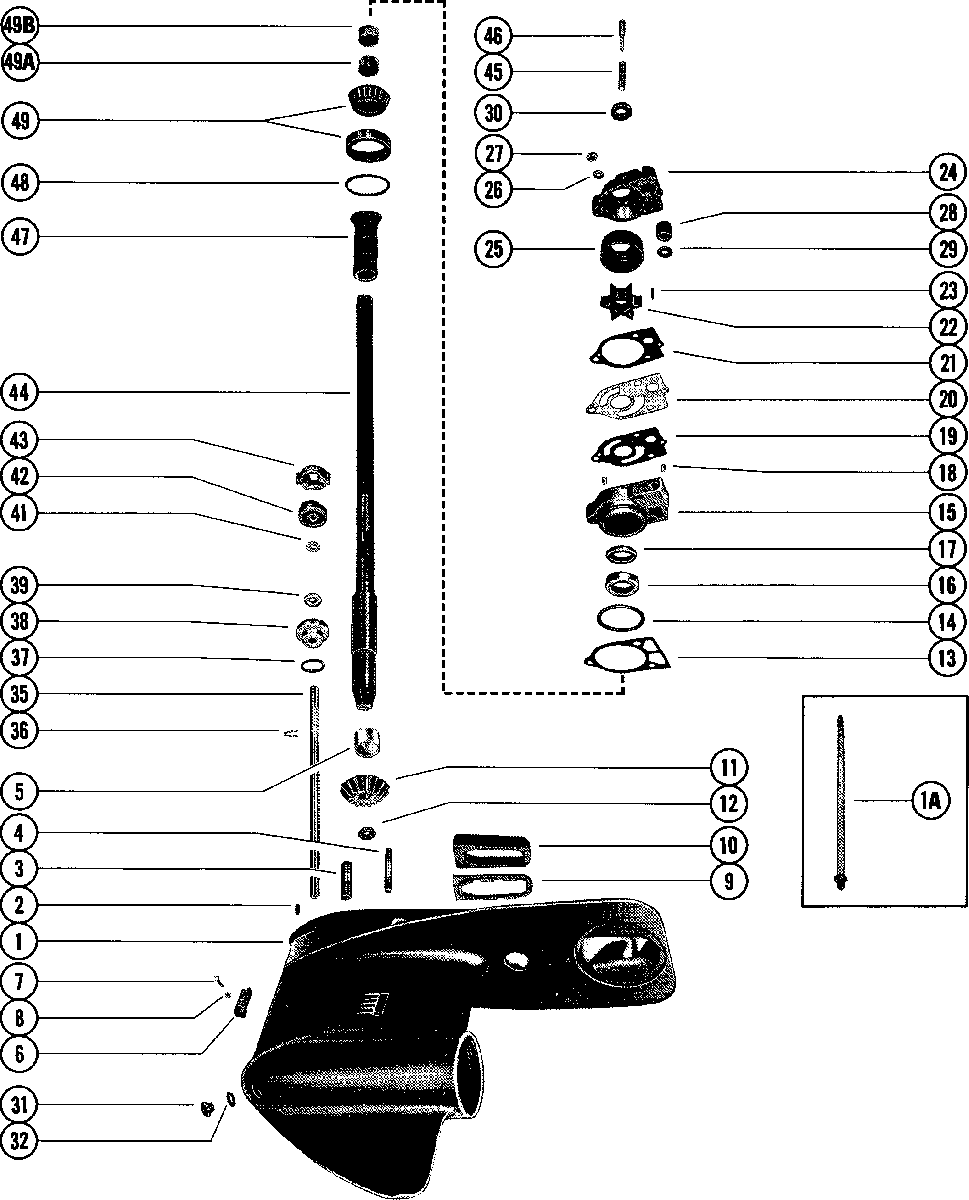

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 7)(PAGE 1) для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • -
    1643-9539A4 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
  • -
    1643-9539A5 GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
    GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
  • -
    1643-9539A4 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • -
    1643-9539A5 GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
    GEAR HOUSING ASSEMBLY
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    GEAR HOUSING ASSEMBLY
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 1A
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 2
    17-8M0084726 PIN, DOWEL - GEAR HOUSING
    PIN, DOWEL - GEAR HOUSING
  • 3
    16-33778 STUD
    WATER PUMP BODY/BASE TO GEAR HSG (2 5/8")
    STUD
    WATER PUMP BODY/BASE TO GEAR HSG (2 5/8")
  • 4
    16-8M0034453 STUD, GEAR HOUISNG TO DRIVE SHAFT HOUSING
    STUD, GEAR HOUISNG TO DRIVE SHAFT HOUSING
  • 5
    31-62091T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 6
    72849A1 SCREEN ASSEMBLY
    WATER INTAKE - STARBOARD AND PORT
    SCREEN ASSEMBLY
    WATER INTAKE - STARBOARD AND PORT
  • 7
    10-36070 SCREW
    WATER INTAKE SCREEN TO GEAR HOUSING
    SCREW
    WATER INTAKE SCREEN TO GEAR HOUSING
  • 8
    11-859124 NUT, WATER INTAKE SCREEN SCREW
    NUT, WATER INTAKE SCREEN SCREW
  • 9
    92815 PLATE, SUPPORT - EXHAUST TUBE
    PLATE, SUPPORT - EXHAUST TUBE
  • 10
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 11
    43-55607 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 12
    11-55910 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 13
    27-19552 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-26722 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 15
    46-77177A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 16
    26-79831 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 17
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-8M0084627 DOWEL PIN
    WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN
    WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-19553 GASKET, LOWER
    WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER
    WATER PUMP BASE TO FACE PLATE
  • 20
    32768 PLATE, FACE
    WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE
    WATER PUMP BASE TO WATER PUMP BODY
  • 21
    27-19551 GASKET, UPPER
    FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER
    FACE PLATE TO WATER PUMP BODY
  • 22
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 23
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 24
    46-77822A1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 25
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 26
    12-29245 WASHER, WATER PUMP BODY AND BASE STUDS
    WASHER, WATER PUMP BODY AND BASE STUDS
  • 27
    11-35888 NUT, WATER PUMP BODY AND BASE STUDS
    NUT, WATER PUMP BODY AND BASE STUDS
  • 28
    26-38452 SEAL
    RUBBER - WATER INLET TUBE (WATER PUMP BODY)
    SEAL
    RUBBER - WATER INLET TUBE (WATER PUMP BODY)
  • 29
    12-38453 WASHER, NYLON - WATER PUMP BODY
    WASHER, NYLON - WATER PUMP BODY
  • 30
    25-20273 RING
    RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING
    RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 31
    10-79953Q04 SCREW, GREASE FILLER
    SCREW, GREASE FILLER
  • 31
    22-8M0058389 SCREW, DRAIN (MAGNETIC)
    SCREW, DRAIN (MAGNETIC)
  • 32
    12-191833 WASHER,GREASE FILLER AND DRAIN SCREW
    WASHER,GREASE FILLER AND DRAIN SCREW
  • 35
    76063A1 SHAFT ASSEMBLY, SHIFT - LOWER
    SHAFT ASSEMBLY, SHIFT - LOWER
  • 36
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 37
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 38
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 39
    26-8164641 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 41
    12-77674 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 42
    78036 BASE, REVERSE LOCKING
    BASE, REVERSE LOCKING
  • 43
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
  • 44
    45-77390A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
  • 44
    45-77389A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 44
    45-77390A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP BELGIUM 9217256 AND UP
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP BELGIUM 9217256 AND UP
  • 44
    45-77389A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 45
    24-20254 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 46
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 47
    88181 SLEEVE, LUBRICATION - DRIVE SHAFT
    SLEEVE, LUBRICATION - DRIVE SHAFT
  • 48
    15-92881A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10-20)
    SHIM, BEARING TO GEAR HOUSING (.002-3-5-10-20)
  • 49
    31-77420A1 ROLLER BEARING ASSEMBLY
    TAPERED - DRIVE SHAFT
    ROLLER BEARING ASSEMBLY
    TAPERED - DRIVE SHAFT
  • 49A
    78654A1 SEAT ASSEMBLY
    DRIVE SHAFT - SPLINED NYLON SEAL SEAT ON DRIVE SHAFT
    SEAT ASSEMBLY
    DRIVE SHAFT - SPLINED NYLON SEAL SEAT ON DRIVE SHAFT
  • 49B
    86304 SEAL, SPLINED - DRIVE SHAFT
    SEAL, SPLINED - DRIVE SHAFT
  • -
    27-72486A32 GASKET SET
    GASKET SET
  • -
    27-72486A32 GASKET SET
    GASKET SET
  • -
    46-77177A3 WATER PUMP KIT
    WATER PUMP KIT
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
