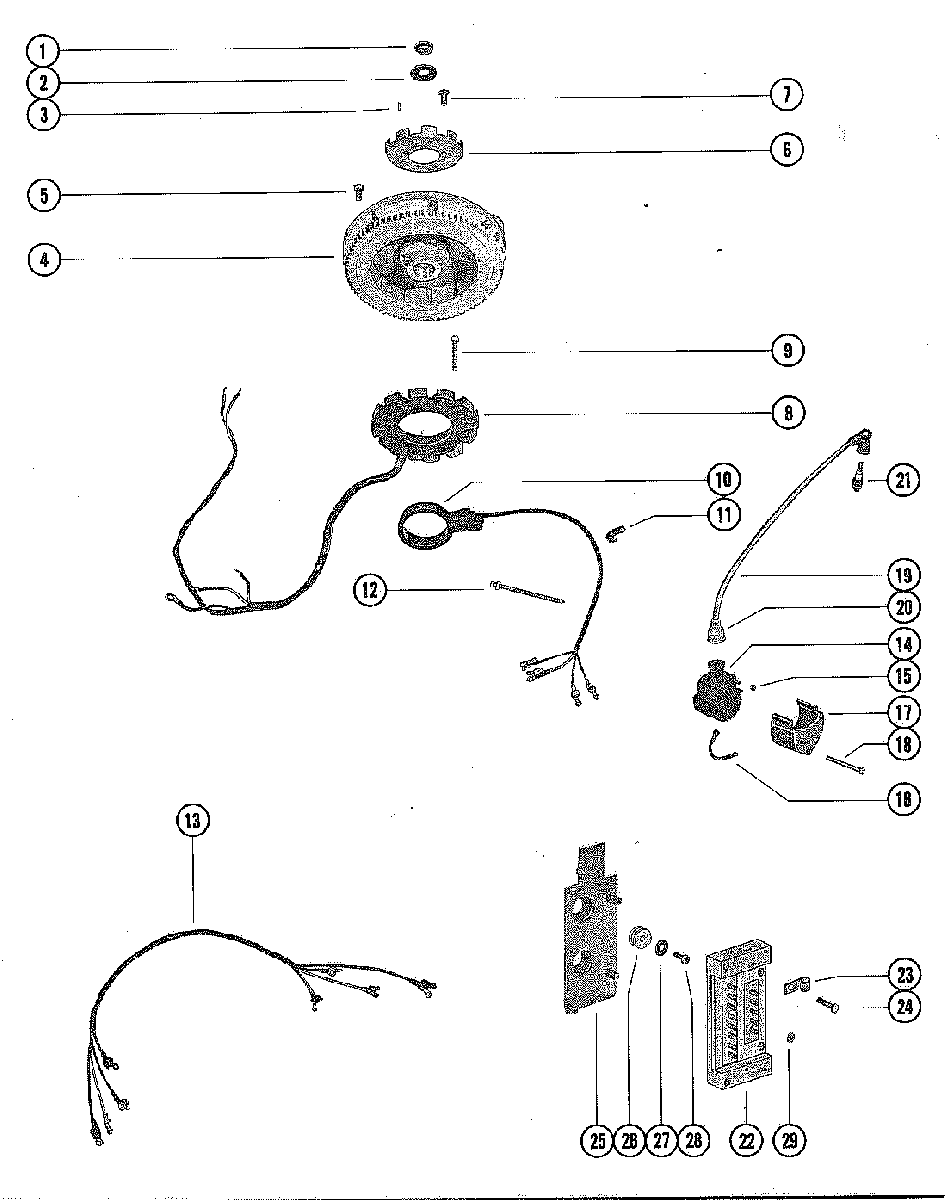

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 4
    248-8722A16 FLYWHEEL ASSEMBLY (MANUAL)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    FLYWHEEL ASSEMBLY (MANUAL)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 4
    248-8722A17 FLYWHEEL ASSEMBLY (ELECTRIC)
    FLYWHEEL ASSEMBLY (ELECTRIC)
  • 4
    248-8722A16 FLYWHEEL ASSEMBLY (MANUAL)
    UNITED STATES 4576237 THRU 5193258
    AUSTRALIA 8042650 THRU 8057394
    BELGIUM 9136250 THRU 9217255
    CANADA 7088598 THRU 7116222
    FLYWHEEL ASSEMBLY (MANUAL)
    UNITED STATES 4576237 THRU 5193258
    AUSTRALIA 8042650 THRU 8057394
    BELGIUM 9136250 THRU 9217255
    CANADA 7088598 THRU 7116222
  • 4
    248-8722A17 FLYWHEEL ASSEMBLY (ELECTRIC)
    FLYWHEEL ASSEMBLY (ELECTRIC)
  • 4
    248-8722A16 FLYWHEEL ASSEMBLY (MANUAL)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    FLYWHEEL ASSEMBLY (MANUAL)
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 4
    248-8722A17 FLYWHEEL ASSEMBLY (ELECTRIC)
    FLYWHEEL ASSEMBLY (ELECTRIC)
  • 5
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16)
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16)
  • 6
    50-88755 RATCHET, FLYWHEEL-MANUAL
    RATCHET, FLYWHEEL-MANUAL
  • 7
    10-68997 SCREW, RATCHT TO FLYWHEEL (5/8")
    SCREW, RATCHT TO FLYWHEEL (5/8")
  • 8
    76314A3 STATOR (MANUAL)
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    STATOR (MANUAL)
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 8
    76314A3 STATOR (MANUAL)
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    STATOR (MANUAL)
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 8
    398-832075A20 STATOR (ELECTRIC)
    STATOR (ELECTRIC)
  • 9
    10-63136 SCREW, STATOR TO UPPER END CAP (1")
    SCREW, STATOR TO UPPER END CAP (1")
  • 9
    10-F2211 SCREW, STATOR TO UPPER END CAP (5/8")
    SCREW, STATOR TO UPPER END CAP (5/8")
  • 10
    96452A4 TRIGGER ASSEMBLY
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    TRIGGER ASSEMBLY
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 10
    96452A4 TRIGGER ASSEMBLY
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    TRIGGER ASSEMBLY
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 11
    54-61001 "J" CLIP, TRIGGER LEADS TO CARBURETOR STUD
    "J" CLIP, TRIGGER LEADS TO CARBURETOR STUD
  • 12
    61990 STA-STRAP, TRIGGER LEADS
    STA-STRAP, TRIGGER LEADS
  • 13
    84-88721A1 HARNESS, SWITCH BOX TO IGNITION COIL
    HARNESS, SWITCH BOX TO IGNITION COIL
  • 14
    339-5288T2 IGNITION COIL ASSEMBLY
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
    IGNITION COIL ASSEMBLY
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
  • 14
    339-832757A4 IGNITION COIL ASSEMBLY
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    IGNITION COIL ASSEMBLY
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 15
    11-45076 NUT, IGNITION COIL TERMINALS
    NUT, IGNITION COIL TERMINALS
  • 16
    84-60466A15 GROUNG WIRE, COIL TO SWITCH BOX
    GROUNG WIRE, COIL TO SWITCH BOX
  • 17
    76254 COVER, IGNITION COIL
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    COVER, IGNITION COIL
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 18
    10-25211 SCREW, COIL COVER (10-24 X 1 7/8")
    SCREW, COIL COVER (10-24 X 1 7/8")
  • 17
    76254 COVER, IGNITION COIL
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    COVER, IGNITION COIL
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 18
    10-76502 SCREW, COIL COVER (10-32 X 1 7/8")
    SCREW, COIL COVER (10-32 X 1 7/8")
  • 19
    84-813715A1 LEAD ASSEMBLY, SPARK PLUG
    LEAD ASSEMBLY, SPARK PLUG
  • 20
    332-2854T01 BOOT, IGNITION COIL END
    BOOT, IGNITION COIL END
  • 21
    33-97182Q SPARK PLUG (AC#V40FFK)
    BELGIUM AND CANADA USE C-33-75739 SPARK PLUG
    SPARK PLUG (AC#V40FFK)
    BELGIUM AND CANADA USE C-33-75739 SPARK PLUG
  • 22
    332-5772A7 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 23
    54-642351 "J" CLIP, SWITCH BOX LEADS
    "J" CLIP, SWITCH BOX LEADS
  • 24
    10-20619 SCREW
    SWITCH BOX AND "J" CLIP TO PLATE (1 3/8")
    SCREW
    SWITCH BOX AND "J" CLIP TO PLATE (1 3/8")
  • 25
    72030 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 26
    25-57009001 GROMMET, SWITCH BOX PLATE
    GROMMET, SWITCH BOX PLATE
  • 27
    12-35280 WASHER, SWITCH BOX PLATE SCREW
    WASHER, SWITCH BOX PLATE SCREW
  • 28
    10-61551 SCREW
    SWITCH BOX PLATE TO CYLINDER BLOCK (1/2")
    SCREW
    SWITCH BOX PLATE TO CYLINDER BLOCK (1/2")
  • 29
    11-45076 NUT, SWITCH BOX TERMINALS
    NUT, SWITCH BOX TERMINALS
