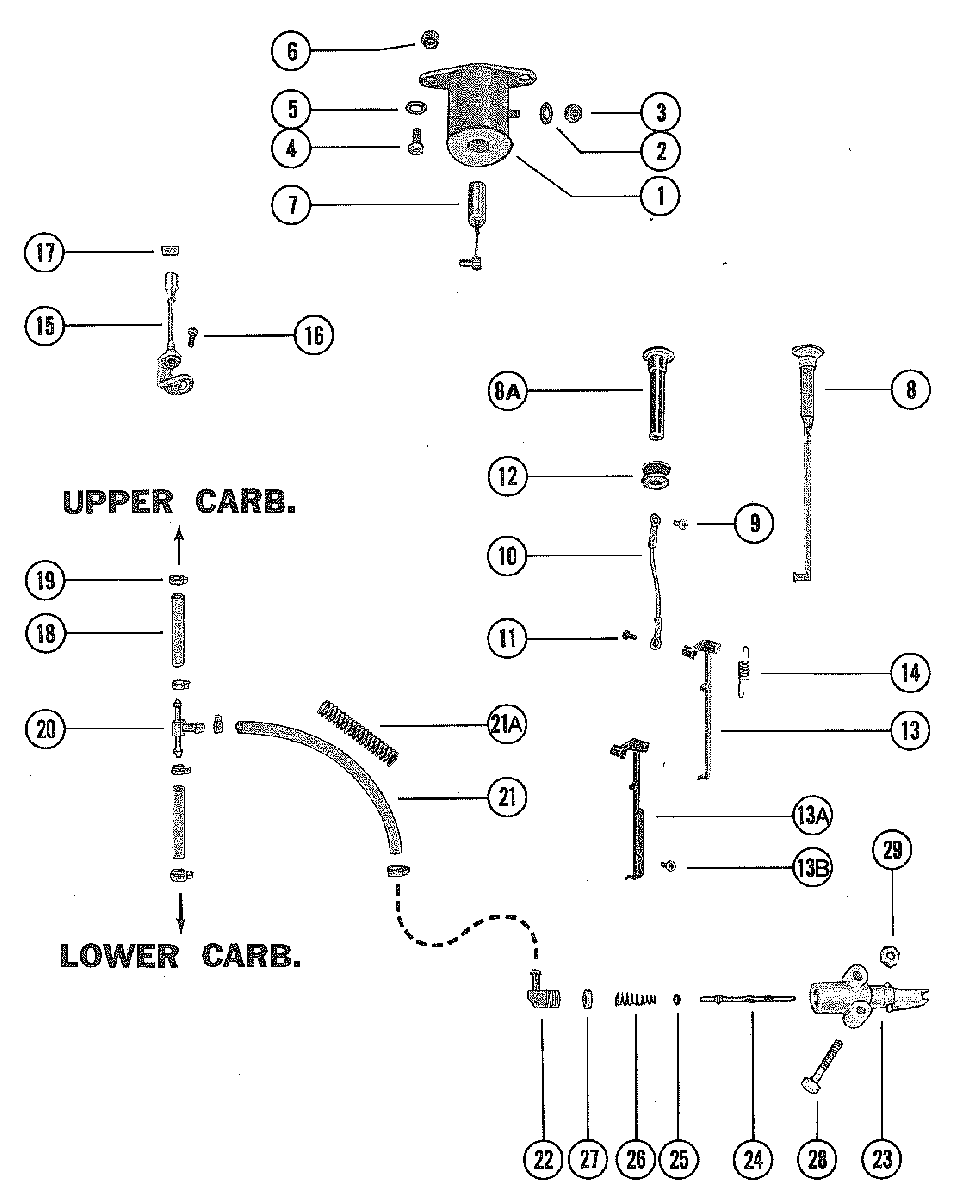

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 500, 50 7068998 THRU 7143687

  • №
    Артикул
    Название
  • 1
    89-889274 CHOKE SOLENOID-ELECTRIC
    ELECTRIC
    CHOKE SOLENOID-ELECTRIC
    ELECTRIC
  • 2
    13-26996 LOCKWASHER, CHOKE SOLENOID TERMINAL
    ELECTRIC
    LOCKWASHER, CHOKE SOLENOID TERMINAL
    ELECTRIC
  • 3
    11-45076 NUT, CHOKE SOLENOID TERMINAL
    ELECTRIC
    NUT, CHOKE SOLENOID TERMINAL
    ELECTRIC
  • 4
    10-26066 SCREW, CHOKE SOLENOID TO FRONT BRACKET
    ELECTRIC
    SCREW, CHOKE SOLENOID TO FRONT BRACKET
    ELECTRIC
  • 5
    13-26993 LOCKWASHER, CHOKE SELENOID SCREW
    ELECTRIC
    LOCKWASHER, CHOKE SELENOID SCREW
    ELECTRIC
  • 6
    11-22053 NUT, CHOKE SOLENOID SCREW
    ELECTRIC
    NUT, CHOKE SOLENOID SCREW
    ELECTRIC
  • 7
    56074A8 PLUNGER AND LINK ASSEMBLY
    CHOKE SELENOID (ELECTRIC)
    PLUNGER AND LINK ASSEMBLY
    CHOKE SELENOID (ELECTRIC)
  • 8
    90241 KNOB, CHOKE (MANUAL)
    KNOB, CHOKE (MANUAL)
  • 8A
    90242A1 KNOB ASSEMBLY (ELECTRIC)
    KNOB ASSEMBLY (ELECTRIC)
  • 9
    10-77137 SCREW, STRAP TO CHOKE KNOB (ELECTRIC)
    SCREW, STRAP TO CHOKE KNOB (ELECTRIC)
  • 10
    49589 STRAP, CHOKE KNOB TO CHOKE ROD (ELECTRIC)
    STRAP, CHOKE KNOB TO CHOKE ROD (ELECTRIC)
  • 11
    10-69570 SCREW, STRAP TO CHOKE ROD (ELECTRIC)
    SCREW, STRAP TO CHOKE ROD (ELECTRIC)
  • 12
    25-20116 GROMMET, FRONT BRACKET (CHOKE KNOB)
    (ELECTRIC)
    GROMMET, FRONT BRACKET (CHOKE KNOB)
    (ELECTRIC)
  • 13
    85966A1 CHOKE ROD
    UNITED STATES 5193258 AND BELOW AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255
    CHOKE ROD
    UNITED STATES 5193258 AND BELOW AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255
  • 13A
    85966A1 CHOKE ROD ASSEMBLY
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    CHOKE ROD ASSEMBLY
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 13B
    10-77614A1 SCREW, CHOKE ROD
    SCREW, CHOKE ROD
  • 14
    24-60288 SPRING, CHOKE ROD
    SPRING, CHOKE ROD
  • 15
    53719A2 PICK-UP BRACKET ASSEMBLY
    PICK-UP BRACKET ASSEMBLY
  • 16
    10-53651 SCREW, PICK-UP BRACKET
    SCREW, PICK-UP BRACKET
  • 17
    28-89694 INSERT, COUPLING
    INSERT, COUPLING
  • 18
    32-8M0108355 FUEL LINE
    CARBURETOR TO TEE TO CARBURETOR (2")
    FUEL LINE
    CARBURETOR TO TEE TO CARBURETOR (2")
  • 19
    54-68424 CLAMP, FUEL LINE
    CLAMP, FUEL LINE
  • 20
    22-73318 TEE, FUEL LINE
    TEE, FUEL LINE
  • 21
    32-8M0108355 FUEL LINE, ADAPTOR TO TEE (6")
    FUEL LINE, ADAPTOR TO TEE (6")
  • 21A
    24-68434 SPRING, FUEL LINE
    SPRING, FUEL LINE
  • 22
    22-63981 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 23
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 24
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 25
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 26
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 27
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 28
    10-69029 SCREW
    ADAPTOR TO BOTTOM COWL (1 3/4") (MANUAL)
    SCREW
    ADAPTOR TO BOTTOM COWL (1 3/4") (MANUAL)
  • 28
    10-67916 SCREW
    ADAPTOR TO BOTTOM COWL (2") (ELECTRIC)
    SCREW
    ADAPTOR TO BOTTOM COWL (2") (ELECTRIC)
  • 29
    11-20184 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • -
    27-72486A32 GASKET SET
    GASKET SET
  • -
    27-72486A32 GASKET SET
    GASKET SET
