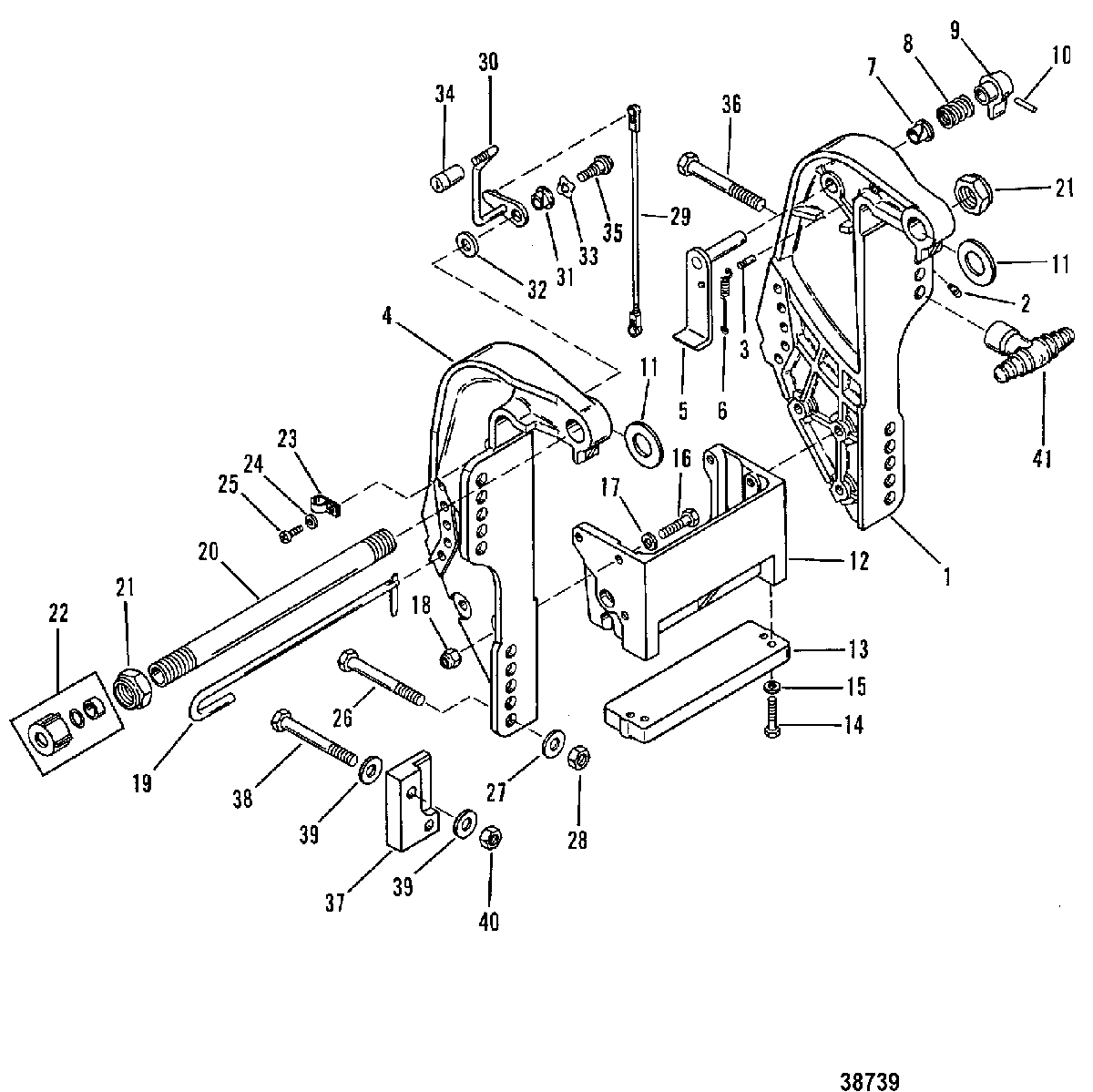

TRANSOM BRACKET(LONG SHAFT)(0C159200 AND UP) для Mercury - 35 B110789 & Up

  • №
    Артикул
    Название
  • 1
    3508-9751A1 BRACKET ASSEMBLY, Transom ( PORT )
    BRACKET ASSEMBLY, Transom ( PORT )
  • 2
    22-98727 FITTING, Grease
    FITTING, Grease
  • 3
    17-99604 PIN, Groove
    PIN, Groove
  • 4
    3507-9750T BRACKET, Transom ( STARBOARD )
    BRACKET, Transom ( STARBOARD )
  • 5
    893704T01 LEVER ASSEMBLY, Tilt Lock
    LEVER ASSEMBLY, Tilt Lock
  • 6
    24-99622 SPRING
    SPRING
  • 7
    23-65830 NYLINER
    NYLINER
  • 8
    24-812708 SPRING
    SPRING
  • 9
    812709 KNOB
    KNOB
  • 10
    17-99615 PIN, Groove
    PIN, Groove
  • 11
    12-19619 WASHER
    WASHER
  • 12
    18486A08 BRACKET, Anchor
    BRACKET, Anchor
  • 13
    97-818298Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 14
    10-4000332 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 16
    10-4000355 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 17
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 18
    11-401388 NUT, (M8)
    NUT, (M8)
  • 19
    19613A1 PIN ASSEMBLY, Tilt
    PIN ASSEMBLY, Tilt
  • 20
    8M0041938 TILT TUBE
    TILT TUBE
  • 21
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 22
    19624A1 SEAL KIT
    SEAL KIT
  • 23
    54-22740 CLIP
    (POWER TRIM)
    CLIP
    (POWER TRIM)
  • 24
    8M0084613 C WASHER
    (POWER TRIM)
    C WASHER
    (POWER TRIM)
  • 25
    10-878608 SCREW, (#10-16 x .500)
    (POWER TRIM)
    SCREW, (#10-16 x .500)
    (POWER TRIM)
  • 26
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 27
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 28
    11-35000 NUT, (.500-20) Stainless Steel
    NUT, (.500-20) Stainless Steel
  • 29
    8M0084737 LINK
    (NON-POWER TRIM)
    LINK
    (NON-POWER TRIM)
  • 30
    19615A05 LEVER ASSEMBLY, Tilt
    (NON-POWER TRIM)
    LEVER ASSEMBLY, Tilt
    (NON-POWER TRIM)
  • 31
    23-812707 BUSHING
    BUSHING
  • 32
    12-815796 WASHER ( .030" )
    (NON-POWER TRIM)
    WASHER ( .030" )
    (NON-POWER TRIM)
  • 32
    12-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
    (NON-POWER TRIM)
    WASHER, (.520 x .850 x .060) Nylon - Black
    (NON-POWER TRIM)
  • 33
    13-99611 WAVE WASHER
    (NON-POWER TRIM)
    WAVE WASHER
    (NON-POWER TRIM)
  • 34
    8M0007469 TILT KNOB
    (NON-POWER TRIM)
    TILT KNOB
    (NON-POWER TRIM)
  • 35
    10-19611 SCREW, (.375-16 x .62)
    (NON-POWER TRIM)
    SCREW, (.375-16 x .62)
    (NON-POWER TRIM)
  • 36
    10-76841 SCREW, (.500-20 x 3.500)
    (NON-POWER TRIM)
    SCREW, (.500-20 x 3.500)
    (NON-POWER TRIM)
  • 37
    812432F5 BRACKET, Mounting
    (STARBOARD) NON-POWER TRIM
    BRACKET, Mounting
    (STARBOARD) NON-POWER TRIM
  • 37
    812433F5 BRACKET, Mounting
    (PORT) NON-POWER TRIM
    BRACKET, Mounting
    (PORT) NON-POWER TRIM
  • 38
    10-88432 SCREW, (.375-24 x 4.00)
    NON-POWER TRIM
    SCREW, (.375-24 x 4.00)
    NON-POWER TRIM
  • 39
    12-8M0042641 WASHER, (.390 x 1.00 x .06)
    NON-POWER TRIM
    WASHER, (.390 x 1.00 x .06)
    NON-POWER TRIM
  • 40
    11-862903 NUT, (.375-24)
    NON-POWER TRIM
    NUT, (.375-24)
    NON-POWER TRIM
  • 41
    812434A2 NUT, T Handle
    NON-POWER TRIM
    NUT, T Handle
    NON-POWER TRIM
