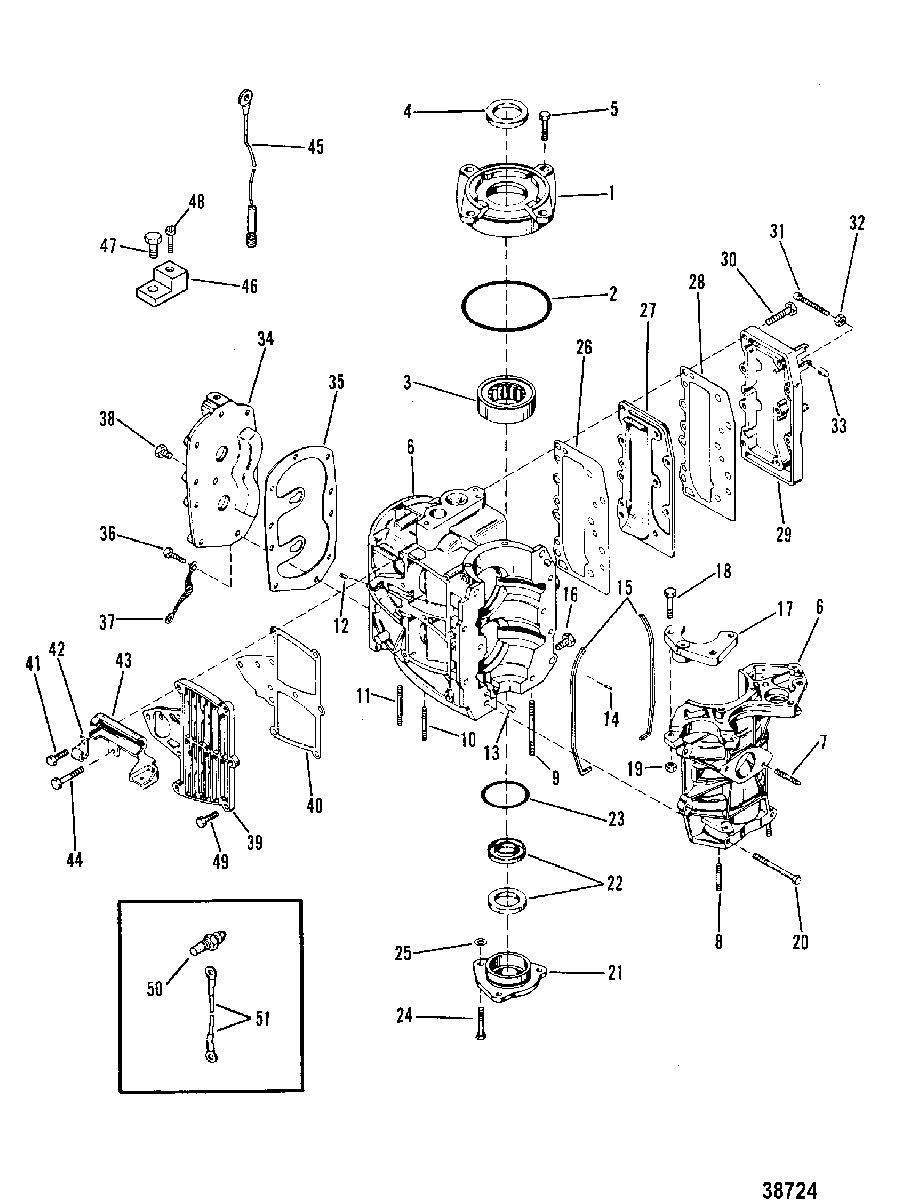

CYLINDER BLOCK CRANKCASE AND COVERS для Mercury - 35 B110789 & Up

  • №
    Артикул
    Название
  • 1
    1167-8277A1 END CAP ASSEMBLY, Upper
    END CAP ASSEMBLY, Upper
  • 2
    25-47254 O-RING
    O-RING
  • 3
    31-62066T BEARING, Roller
    BEARING, Roller
  • 4
    26-41953 SEAL
    SEAL
  • 5
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)
    SCREW AND LOCKWASHER, (.312-18 x 1.00)
  • 6
    851-7940A6 CYLINDER BLOCK/CRANKCASE
    CYLINDER BLOCK/CRANKCASE
  • 7
    16-64936 STUD (1-1/4")
    STUD (1-1/4")
  • 8
    16-68165 STUD (1-5/8")
    STUD (1-5/8")
  • 9
    16-87901 STUD (4-3/8")
    STUD (4-3/8")
  • 10
    16-68166 STUD, (.312 x 2.125)
    STUD, (.312 x 2.125)
  • 11
    16-68167 STUD, (.312-18/.312-24 x 2.560)
    STUD, (.312-18/.312-24 x 2.560)
  • 12
    66517 RESTRICTOR
    RESTRICTOR
  • 13
    17-23784 PIN, Dowel
    PIN, Dowel
  • 14
    17-20323 PIN, Dowel
    PIN, Dowel
  • 15
    27-55158 GASKET
    GASKET
  • 16
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 17
    62064 BRACKET
    BRACKET
  • 18
    10-21339 SCREW, (.312-24 x 1.375)
    SCREW, (.312-24 x 1.375)
  • 19
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 20
    10-73657 SCREW, (.312-18 x 1.50)
    SCREW, (.312-18 x 1.50)
  • 20
    10-63328 SCREW, (.312-18 x 3.00)
    SCREW, (.312-18 x 3.00)
  • 20
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 21
    1152-7267A1 END CAP ASSEMBLY, Lower
    END CAP ASSEMBLY, Lower
  • 22
    26-41953 SEAL
    SEAL
  • 23
    25-823683 O-RING
    O-RING
  • 24
    10-63365 SCREW (1-1/2")
    SCREW (1-1/2")
  • 25
    25-64068 O-RING
    O-RING
  • 26
    854892 GASKET
    GASKET
  • 27
    55190 PLATE
    PLATE
  • 28
    27-854882 GASKET
    GASKET
  • 29
    551572 COVER
    COVER
  • 30
    10-60411 SCREW, (1.25)
    SCREW, (1.25)
  • 30
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 31
    10-64021 SCREW (1-7/8")
    SCREW (1-7/8")
  • 32
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 33
    26852 CAP, Nylon
    CAP, Nylon
  • 34
    1024-91101 COVER
    COVER
  • 35
    27-856729 GASKET
    GASKET
  • 36
    10-76213 SCREW, (.250-20 x 1.120)
    SCREW, (.250-20 x 1.120)
  • 37
    46933A3 STRAP ASEMBLY, Ground
    STRAP ASEMBLY, Ground
  • 38
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 39
    14427A1 COVER
    (FUEL PUMP CREW ARE 6MM)
    COVER
    (FUEL PUMP CREW ARE 6MM)
  • 39
    14427A1 COVER
    (FUEL PUMP CREW ARE 12-24)
    COVER
    (FUEL PUMP CREW ARE 12-24)
  • 40
    27-552791 GASKET
    GASKET
  • 41
    10-49668 SCREW, (.250-20 x .750) (QTY. OF 6 ON ELECTRIC)
    SCREW, (.250-20 x .750) (QTY. OF 6 ON ELECTRIC)
  • 42
    54-47483 J CLIP
    J CLIP
  • 43
    92059T BRACKET
    (Electric)
    BRACKET
    (Electric)
  • 44
    78036 BASE
    (Electric)
    BASE
    (Electric)
  • 45
    87-96829A1 SWITCH ASSEMBLY, Temperature
    (Electric)
    SWITCH ASSEMBLY, Temperature
    (Electric)
  • 46
    86-45915 TERMINAL BLOCK
    (Electric)
    TERMINAL BLOCK
    (Electric)
  • 47
    10-72169 SCREW, (#10-24 x .50)
    (Electric)
    SCREW, (#10-24 x .50)
    (Electric)
  • 48
    10-69079 SCREW, (#10-16 x .440)
    (Electric)
    SCREW, (#10-16 x .440)
    (Electric)
  • 49
    10-70602 SCREW, (.250-20 x 2.00)
    (Electric)
    SCREW, (.250-20 x 2.00)
    (Electric)
  • 50
    12415 SENDER, Temperature
    (Powerboat)
    SENDER, Temperature
    (Powerboat)
  • 51
    84-88824A6 CABLE ASSEMBLY
    (Powerboat)
    CABLE ASSEMBLY
    (Powerboat)
  • -
    27-85489A87 GASKET SET
    GASKET SET
  • -
    61779A87 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
